Home > Electrodes > AWS Class ER309LSi Mig & Tig Filler Welding Wire & Rod
Vinit Stainless is a well-respected manufacturer and supplier of AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod, proudly based in Chennai, India. The ER309LSi filler metal is specifically designed for welding different types of metals, particularly stainless steels to carbon or low-alloy steels, and for creating corrosion-resistant overlays on mild steel. Thanks to its higher silicon content, it enhances the fluidity of the weld pool and improves the appearance of the bead. Plus, the low carbon content helps reduce carbide precipitation, boosting resistance to intergranular corrosion. Manufactured to meet strict AWS standards, our ER309LSi wires and rods provide smooth, spatter-free welds with outstanding mechanical properties, making them ideal for critical fabrication and repair work.
AWS Class ER309LSi MIG and TIG filler rod welding wires are designed for welding dissimilar metals, such as stainless steel to carbon steel. These rods typically contain 24-26% chromium and 13-15% nickel. With a high silicon content (up to 0.65%) to improve the hydration and appearance of the weld pool Silicon enhancement helps reduce spatter and bead is firmly established. The ER309LSi provides a durable corrosion-resistant weld suitable for applications. In power generation, petrochemical industries, and architectural construction, and ensures high-quality, durable joints.
| Classification | AWS A5.9, ER309LSi |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER309LSi MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.12 | 24.0-26.0 | 13.0-15.0 | 0.75 | 1.0-2.5 | 0.65-1.00 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 564 |
| Tensile Strength, kpsi: | 87 |
| Elongation%, min: | 41 |
Contact us to get a quick quote for your requirement.

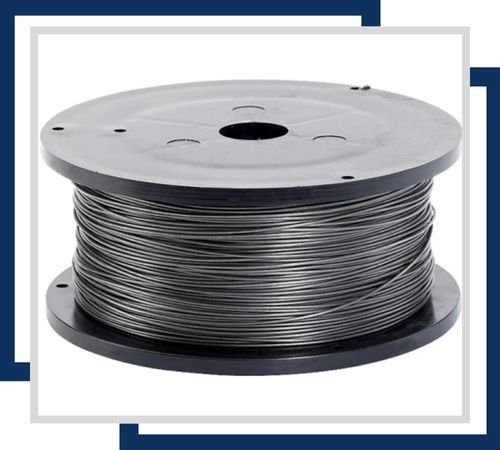

Stainless Steel ER309LSi MIG Filler Wire offers high-quality, silicon-enhanced welds for dissimilar metals, providing excellent corrosion resistance and bead appearance in applications like power generation and industrial fabrication.

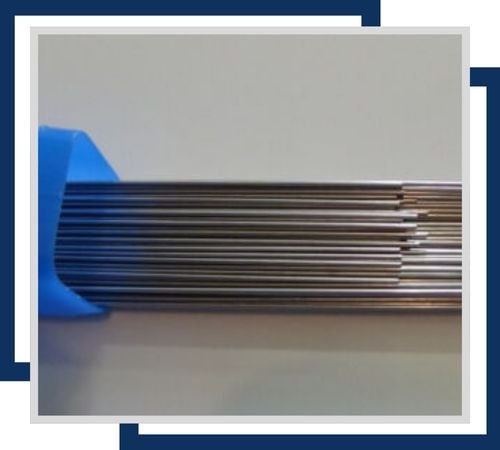

Stainless Steel ER309LSi TIG Filler Wire delivers superior weld quality and corrosion resistance for dissimilar metal joints, ideal for high-temperature and critical applications in industries such as petrochemical and structural fabrication.

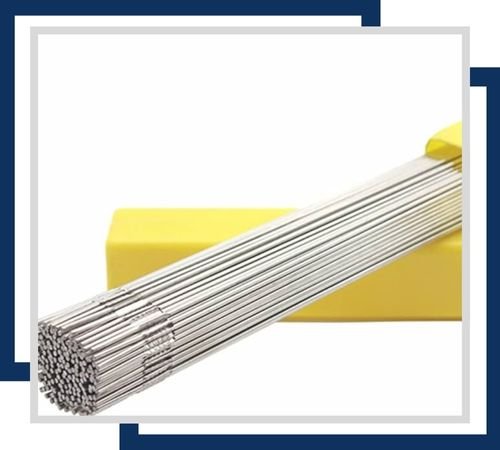

Stainless Steel ER309LSi TIG Filler Rod ensures strong, corrosion-resistant welds with enhanced fluidity for dissimilar metals, suitable for high-stress applications in power generation, chemical processing, and industrial sectors.
After the production of our AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod, our quality control team conducts thorough destructive and non-destructive testing using advanced equipment to ensure the superior performance and reliability of the product. Once the testing is complete we carefully package the filler wire and rod using appropriate materials to maintain their quality during shipping. We assure smooth and timely delivery to our customers. Guaranteeing on-time arrival without any delays. All necessary documentation, including certificates and test reports, are provided to the clients upon delivery.
AWS Class ER309LSi MIG and TIG Filler Rod Welding Wire is used to weld dissimilar metals, such as stainless steel to carbon steel, and is ideal for high temperature applications Enhanced silicon content improves weld fluidity and bead form to critical industrial te as power generation, petrochemical processing and structural construction -Suitable for applications These wires provide corrosion resistance and excellent strength, ensuring strong, reliable joints in areas exposed to high stresses and harsh conditions in, as well as increasing weld quality and strength.
