Vinit Stainless, located in Chennai, India, has earned a solid reputation as a reliable manufacturer and supplier of AWS Class ER410 TIG Filler Welding Wire and Rod. They provide top-notch welding solutions specifically designed for hardenable martensitic stainless steels. The ER410 filler metal is crafted for applications that demand outstanding wear and corrosion resistance, making it perfect for welding 410 and similar stainless grades. Vinit’s TIG wires and rods guarantee excellent arc stability, minimal spatter, and high-quality weld deposits. Adhering to strict AWS A5.9 standards, these products are commonly used in valves, turbines, shafts, and pump components that operate in high-temperature and mildly corrosive environments.
The AWS Class ER410 TIG filler wire and rod are made up of about 11.5–13.5% chromium, less than 0.03% carbon, under 1% manganese, along with trace amounts of silicon, sulfur, and phosphorus. This unique blend offers impressive hardness, oxidation resistance, and moderate corrosion resistance. When air-hardened or subjected to post-weld heat treatment, the weld metal can reach a tensile strength of at least 550 MPa, a yield strength of 450 MPa, and hardness levels between 35–45 HRC. These wires excel in high-abrasion and elevated temperature settings, making them ideal for martensitic steels in challenging service conditions.
| Classification | AWS A5.9, ER410 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410 MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.12 | 11.5-13.5 | 0.6 | 0.75 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 78 |
| Tensile Strength, kpsi: | 89 |
| Elongation%, min: | 24 |
Contact us to get a quick quote for your requirement.

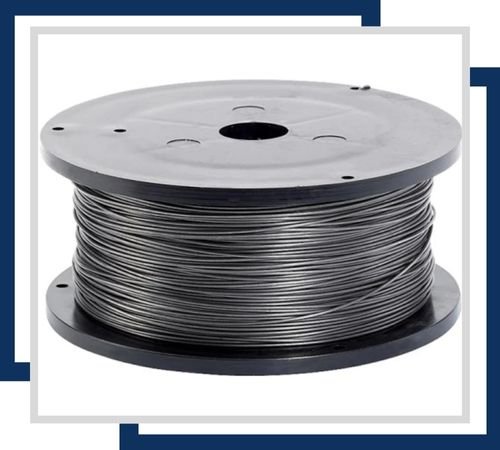

ER410 MIG filler wire offers high strength and wear resistance, ideal for welding martensitic stainless steels in applications requiring durability and high-temperature performance.

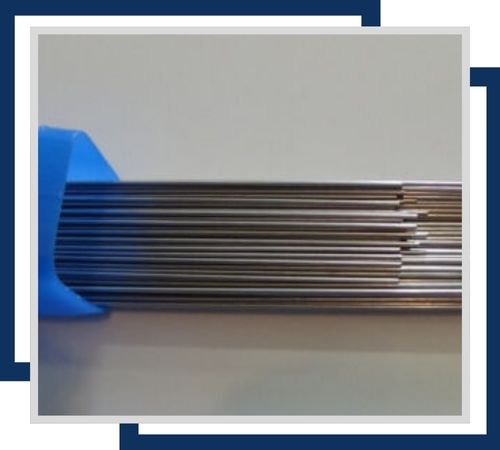

ER410 TIG filler wire provides excellent hardness and abrasion resistance, suitable for welding stainless steel components exposed to high stress and wear, ensuring strong, durable joints.

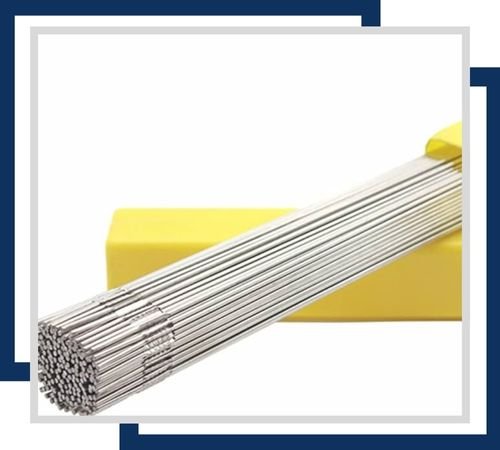

ER410 TIG filler rod delivers superior hardness and wear resistance, used for welding martensitic stainless steels in high-stress environments, offering strong, reliable welds and durability.
Each AWS Class ER410 MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials. To prevent any damage or corrosion during transit. We are committed to guaranteeing customer satisfaction by providing timely deliveries. Through efficient transportation methods. Along with the products, we also supply all the necessary documentation to our clients at the time of delivery, ensuring complete transparency and support throughout the process.
AWS Class ER410 TIG Filler Wire and Rod are mainly utilized for welding martensitic stainless steels, especially grades 410, 403, and 416, where high strength and oxidation resistance are crucial. They find common use in turbine blades, pump shafts, valve seats, and steel molds across industries like power generation, aerospace, petrochemical, and food processing. These filler metals are perfect for hardfacing, overlaying, and repair welding in scenarios that require excellent wear resistance and thermal fatigue performance. After post-weld heat treatment, these filler metals enhance toughness and corrosion resistance, ensuring long-lasting durability in demanding applications.
