Vinit Stainless provides premium–quality SS 15-5 PH sheets and plates from Chennai, India, for aerospace, power, and marine applications. The precipitation-hardened stainless steel possesses high strength, superior corrosion resistance, and high mechanical stability under a range of conditions. Vinit‘s SS 15-5 PH products are offered in a range of tempers and are suitable for components where high toughness and structural integrity are needed. Their plates and sheets are stringently quality controlled and precision finished to aerospace and defense standards. The balance of machinability and strength of the alloy makes it a suitable material for structure and pressure-sensitive parts.
SS 15-5 PH stainless steel has chromium (14–15.5%), nickel (3.5–5.5%), copper (~3.5%), and is martensitic with a precipitation hardening mechanism. It offers tensile strength of up to 1310 MPa and yield strength of 1100 MPa, as a function of aging treatment. It shows very high transverse toughness and good resistance to corrosion, even in environments containing chlorides. The steel is weldable and machinable with ease in the annealed condition and ages to a very high hardness. Its low distortion and reproducible mechanical properties qualify it for applications where there are close tolerances and high reliability required.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.

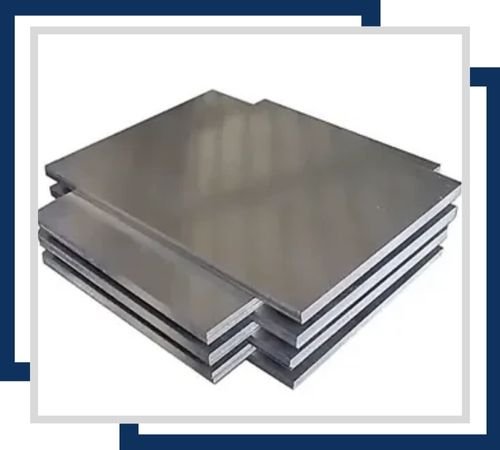

SS 15-5 PH cold-rolled sheets and plates are precision-formed stainless steel alloys that provide high strength, corrosion resistance and superior mechanical properties, Cold rolled for improved surface finish and tight tolerances. They are commonly used in high-performance applications such as aerospace, chemical processing, and construction materials, providing excellent durability and reliability

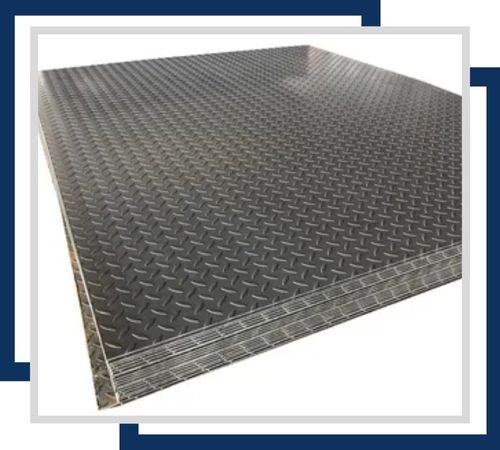

SS 15-5 PH is precipitation hardened sheet and plates, used in aerospace, marine, and chemical industries for high strength, corrosion resistance. They have excellent mechanical properties, hence provide durability along with resistance to stress corrosion cracking. Chequered plates are textured surface that provides improved grip and anti-slip properties.

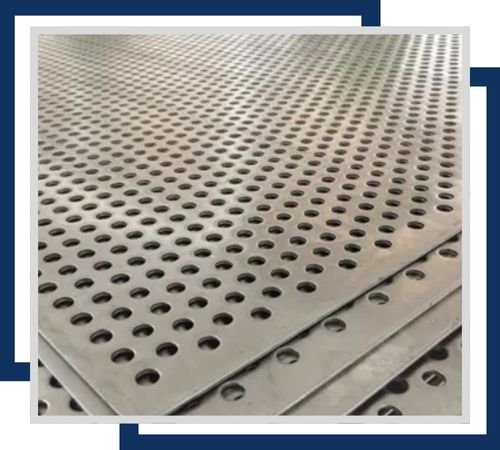

SS 15-5 PH is a good precipitation-hardening stainless steel available in sheet and plate form. Such perforated sheets and plates would offer a suitable combination of both strength and function with precise holes as filtration, venting, aesthetic design, retaining excellent mechanical properties.

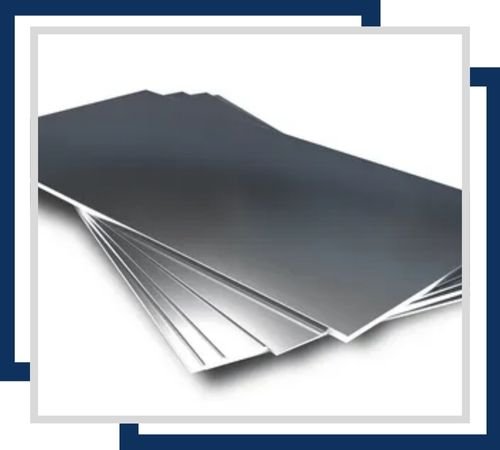

SS 15-5 PH (Precipitation Hardened) sheets and plates are high strength, corrosion resistant stainless steel. Shim sheets of SS 15-5 PH provide uniform thickness, providing excellent dimensional accuracy for gaps and locations in machinery or buildings for widespread applications in air, space, chemical and technology to increase performance.

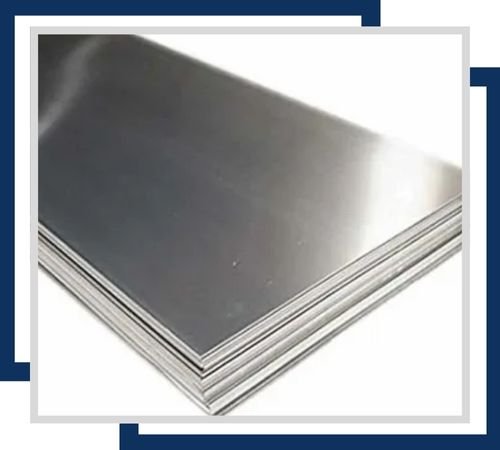

The polished SS 15-5 PH (Precipitation Hardened) plate is made of corrosion-resistant stainless steel with a smooth and luminous surface This plate provides excellent mechanical properties and resistance to compression which is difficult to crack. Commonly used in aerospace, marine and medical applications, they offer functional and aesthetic benefits along with excellent durability.
SS 15-5 PH plates and sheets find their applications in aerospace parts, gas turbines, structural structures, and marine. It is suitable for components that are subjected to dynamic loading like fasteners, shafts, gears, and valve parts. Its corrosion resistance makes it suitable for chemical processing, and toughness and strength of the alloy make it ideal for hydraulic actuators and missile components. SS 15-5 PH is utilized in surgical instruments and high-precision molds because of its hardness and stability of dimensions. Its consistency at a wide range of temperatures makes it a preferred material for high -performance, demanding engineering applications.
