Vinit Stainless is a known supplier and manufacturer of SS 422 sheets and plates in Chennai, India. These stainless steel items are highly strong, hard, and wear-resistant and are suitable for applications in heat-treated condition. Vinit Stainless offers precision-finished plates and sheets that are customized to meet the requirements of high-end industrial industries like aerospace, turbines, and mechanical tools. The company has rigorous quality control over each lot of SS 422 to see to it that international metallurgical standards are met. With uniform mechanical strength and good machinability, these plates and sheets are ideal for use in applications that need corrosion resistance as well as structural durability.
SS 422 stainless steel has approximately 12% chromium with other carbon (up to 0.25%), molybdenum, and manganese added for strengthening and hardenability. It has high tensile strength (up to 1030 MPa) and hardness when heat-treated. Yield strength is usually between 620 to 725 MPa. This martensitic stainless steel has mechanical stability in high temperature conditions and is magnetic in nature. SS 422 can be hardened through heat treatment and will remain good in terms of corrosion resistance in mild environments as well. Its strength and toughness make it feasible for heavy-load-bearing applications.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |

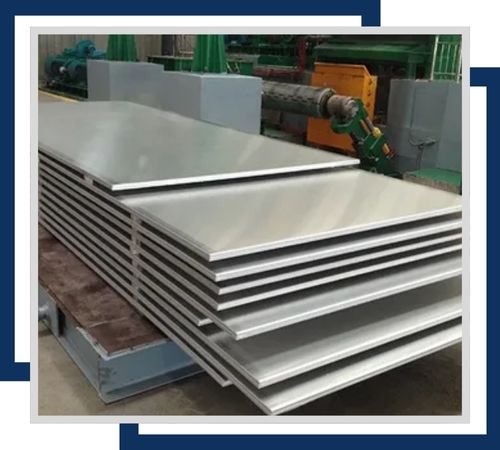

| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.

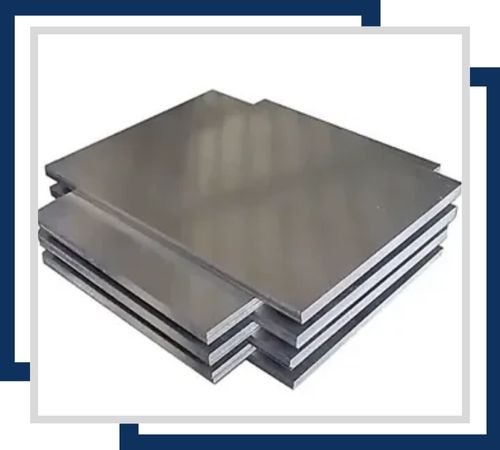

SS 422 cold rolled sheets are stainless steel material that is strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.

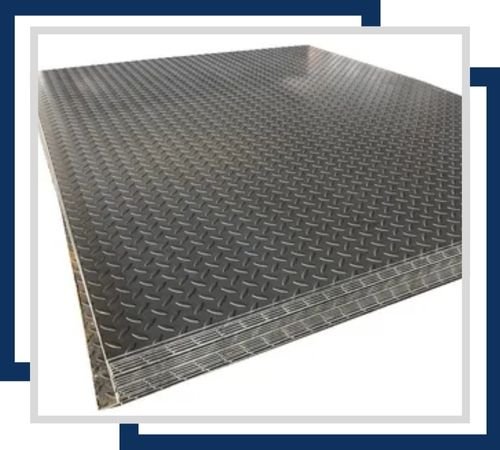

SS 422 chequered plates are highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.
SS 422 perforated plates are stainless steel sheets designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

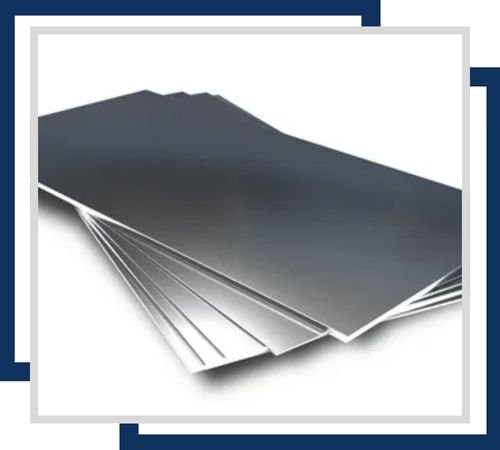

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.

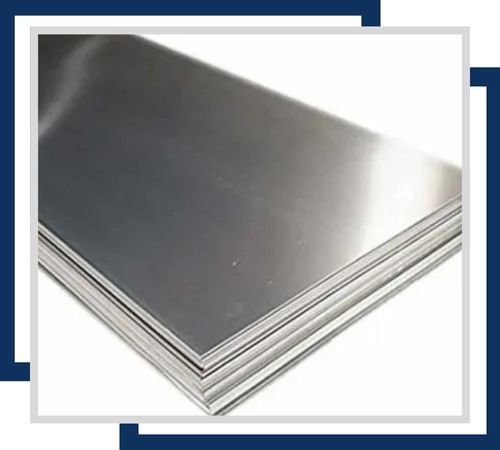

SS 422 Polished Plates are most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
SS 422 sheets and plates find extensive application in aerospace parts, turbine blades, valves, high-pressure shafts, and mechanical components demanding high heat resistance and strength. Their scaling resistance at elevated temperatures and hardenability find them particularly suited for components subjected to thermal cycling. SS 422 sheets and plates are also used in tooling for industry, knife blades, and engine parts. Owing to their wear resistance and machinability, SS 422 is a material of preference in applications where corrosion resistance ranks second to mechanical performance. It‘s particularly worth it in situations that call for thermal fatigue resistance and structural integrity.
