Vinit Stainless provides SS 465 stainless steel plates and sheets, specifically designed for use in high–strength, long-lasting, corrosion-resistant applications. Headquartered in Chennai, India, Vinit supplies SS 465 in different tempers and thicknesses to aerospace, defense, and medical industries. These sheets offer better mechanical properties without losing their formability and toughness. Vinit‘s manufacturing capability delivers close tolerance and surface finish appropriate for critical and fatigue-resistant applications. With superior performance under cyclic loading and temperature conditions, SS 465 is the preferred material for precision engineering and load-carrying applications.
SS 465 is an age-hardenable martensitic stainless steel alloy consisting of chromium (11–12%), nickel (10.5–11.5%), molybdenum, titanium, and carbon. It provides tensile strength of up to 1380 MPa and yield strength of 1170 MPa after aging. The alloy has excellent toughness, fatigue strength, and resistance to corrosion in sea and industrial environments. It is machinable in the annealed state and can be aged for ultimate strength. SS 465 has high fracture toughness combined with low distortion when heat-treated, and it is best used in applications that demand accurate dimensional control and performance.
| Standard Specification : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Fe 74.35% | Cr 11.75% | Ni 11.0% | Ti 1.65% | Mo 2.05% | |||||
| Mn <=0.25% | Si <=0.25% | C <=0.020% | P <=0.015% | N <=0.010% | |||||
| S 0.010% | |||||||||
| Property | Minimum | Maximum | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield Strength Range (Rp0.2 Offset) (ksi) | 170 | 270 | |||||||
| Tensile Strength Range (Rm) (ksi) | 190 | 280 | |||||||
| Elongation (AL=5 x Ø) | 2.3% | 14.0% | |||||||
| Brinell Hardness (H) | 271 | 560 | |||||||
| Modulus of Elasticity (ksi) (E): 32000 | |||||||||
| Machineability General Index: Unknown | |||||||||
Contact us to get a quick quote for your requirement.

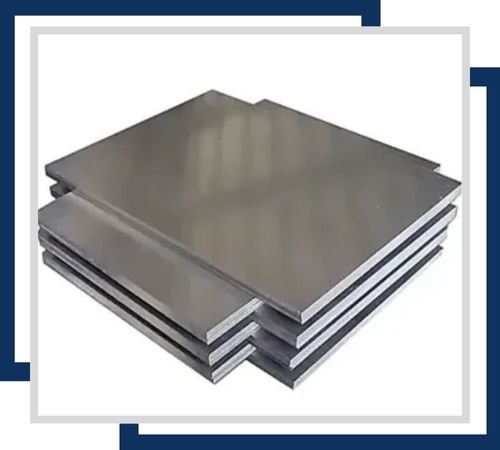

SS 465 Cold Rolled Sheets are widely demanded, high-quality, and corrosion-resistant steel products that find a diverse application in multiple industries. These sheets are provided in different sizes, having different thicknesses, that range from 0.3mm to 3mm for excellent surface finish, strength, and precision for superior quality and performance in applications.

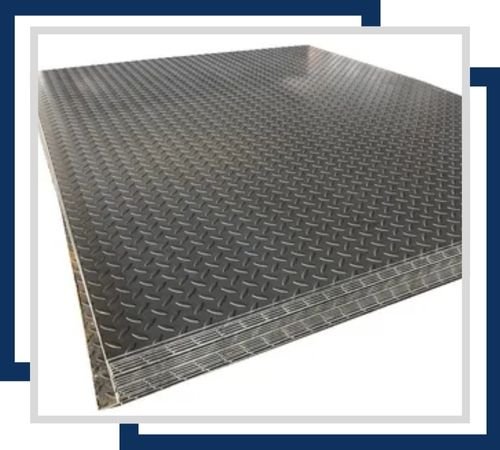

SS 465 Chequered Plates are heavy-duty stainless steel plates that have a raised, textured surface for anti-slip applications. They are widely found in industries where high corrosion resistance and structural strength is at a premium. Available in a wide range of sizes, such as 4×8 feet, custom sizes are also available.

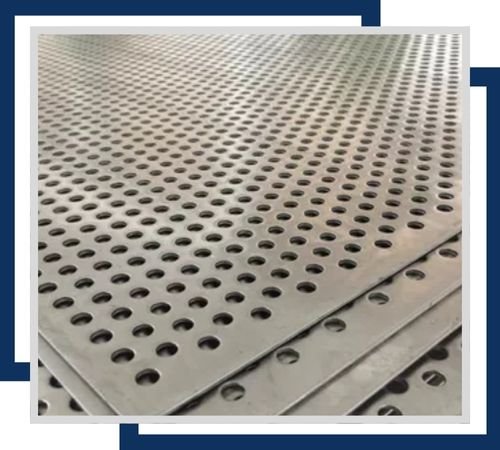

SS 465 perforated plates are high-quality stainless steel sheets with precision holes to allow for airflow, drainage, and filtration. They are available in a wide range of sizes, usually in terms of thickness, from 0.5mm to 5mm and hole diameters ranging from 1mm to 25mm.

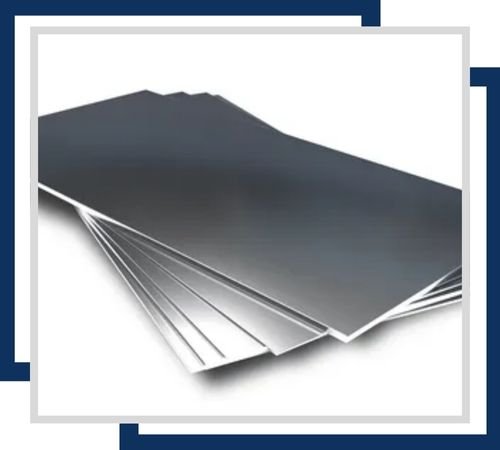

SS 465 Shim Sheets are high-quality stainless steel sheets. They are primarily used for applications requiring precise spacing and alignment. The shim sheets are usually offered in thickness ranging from 0.05mm to 1.00mm, and the best corrosion resistance is offered with an excellent durability to be used for critical engineering tasks.

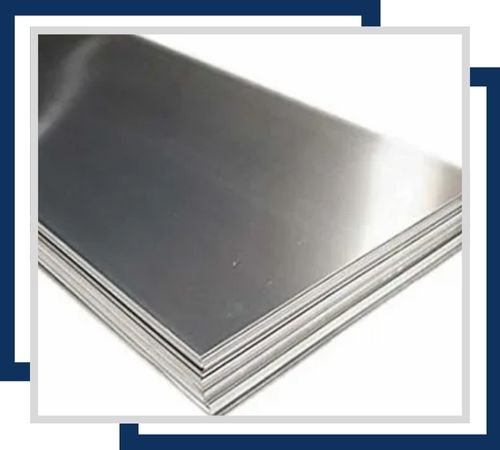

SS 465 Polished Plates are made from stainless steel that is very shiny and polished on the surface. They come in various sizes. Generally, their thickness ranges between 3mm and 100mm, widths can be up to 1500mm, and lengths can go up to 6000mm.
SS 465 finds extensive use in aerospace structures, turbine engine components, medical equipment, and high-performance marine applications. It is best suited for airframe parts, shafts, fasteners, critical rotating parts, due to its resistance to fatigue and heavy loads. The good corrosion resistance of the alloy also renders it suitable for salt-enriched, humid environments. SS 465 finds special value in weight-saving designs without loss of strength. Its machinability, in addition to high mechanical strength and reliability, makes it an attractive choice for commercial and military-grade parts.
