Vinit Stainless in Chennai, India, is a prominent manufacturer and supplier of high-grade stainless steel products, such as commonly used SS201 sheet and plates. Featuring outstanding formability, tensile strength, and cost-effectiveness, SS201 sheets and plates are suitable for numerous industrial and commercial uses. Operating with strict manufacturing standards and quality check, Vinit Stainless provides consistent performance and longevity. With a focus on delivering high-quality products on schedule, the company deals with multifaceted industries like construction, automotive, kitchenware, and transportation. Vinit Stainless is known for delivering pragmatic, economical stainless steel solutions in India as well as internationally.
SS201 sheet and plates consist of around 16–18% chromium, 3.5–5.5% nickel, 5.5–7.5% manganese, and ≤0.15% carbon. Such a composition provides SS201 good strength, moderate corrosion resistance, and outstanding formability. The material possesses tensile strength of approximately 520 MPa and yield strength of about 275 MPa with excellent elongation and hardness. Though less corrosion-resistant than SS304, SS201 is suitable for use in indoor and slightly corrosive conditions. It is also non-magnetic in the annealed state and takes on some magnetic properties when cold worked and is thus used for different kinds of fabrication and structural purposes.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

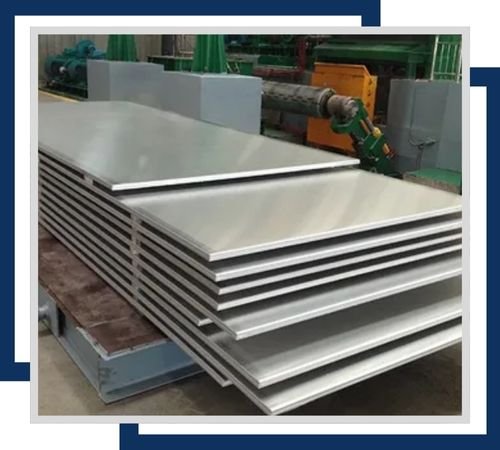

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

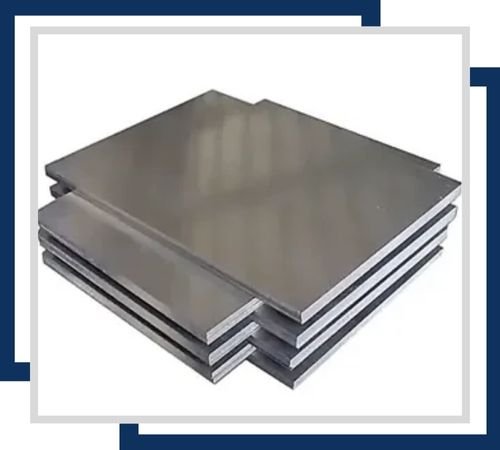

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.
Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.

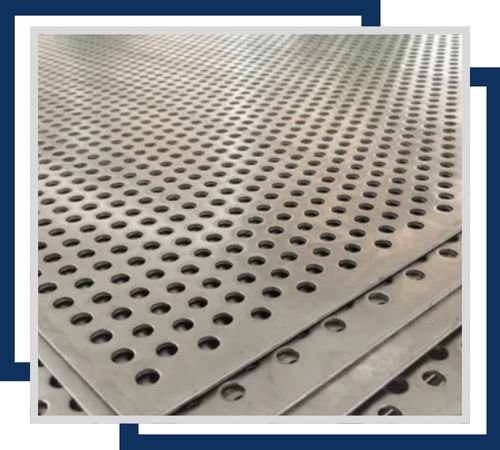

Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.

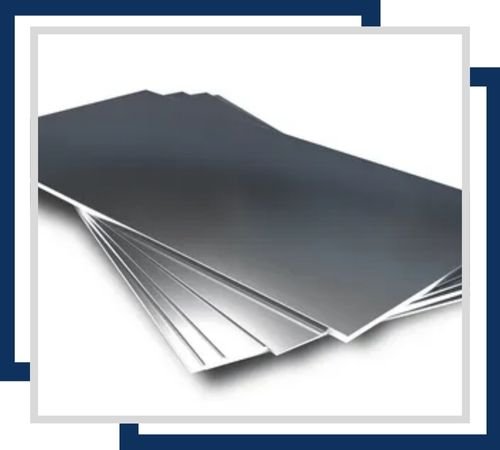

Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.

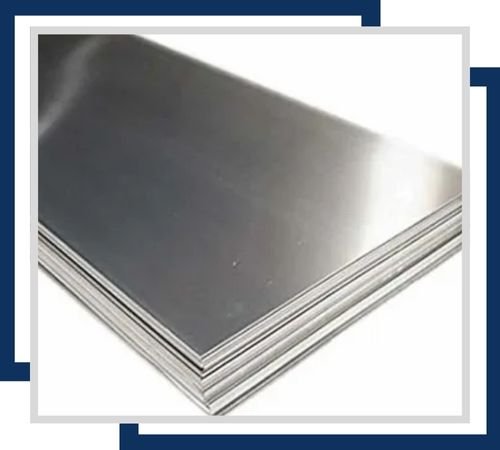

Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
