With its headquarters located in Chennai, India, Vinit Stainless is a reputable manufacturer and supplier of high-quality stainless steel products. The company is well-known for providing premium stainless steel solutions and provides precision-engineered materials to a variety of industrial sectors. Stainless Steel 253MA Sheets and Plates, which are renowned for their outstanding high-temperature performance and structural dependability, are among its flagship products. Applications requiring exceptional strength, creep resistance, and oxidation stability at high temperatures are best suited for these sheets and plates. Vinit Stainless guarantees that every product exceeds international standards and satisfies the particular requirements of its industrial clients by prioritizing quality, innovation, and prompt delivery.
A high-alloy austenitic stainless steel with exceptional heat resistance and long-term strength is stainless steel 253MA. In addition to trace amounts of nitrogen and rare earth metals like cerium for increased oxidation resistance, its chemical makeup consists of 20–22% chromium, 18–20% nickel, and 1.5–2.5% molybdenum. The alloy has good creep resistance, tensile strength above 600 MPa, and mechanical strength even at temperatures above 1000°C. It also provides outstanding resistance to scaling and weldability. Because of these qualities, 253MA can be used for extended periods of time in extremely hot conditions without losing its structural integrity.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Cr | Ni | Si | C | Mn | P | S | N | Ce | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 20.00 | 10.00 | 1.40 | 0.05 | – | – | – | 0.14 | 0.03 | Balance |
| MAX | 22.00 | 12.00 | 2.00 | 0.10 | 0.80 | 0.04 | 0.03 | 0.20 | 0.08 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Reduction Area,% |
|---|---|---|---|---|
| 253 MA | 87,000 | 45,000 | 40 | 50 |
Contact us to get a quick quote for your requirement.

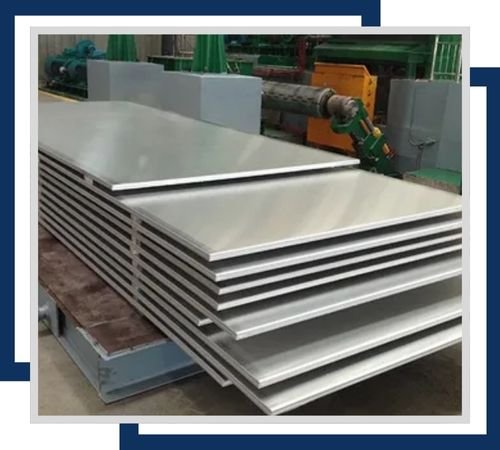

Hot-rolled stainless steel 253MA sheets are manufactured by a process known as hot rolling at elevated temperatures, ensuring robust and tough materials. Thickness usually ranges between 3mm to 100mm. Excellent resistance to corrosion and oxidation in a high temperature is one of its excellent characteristics.

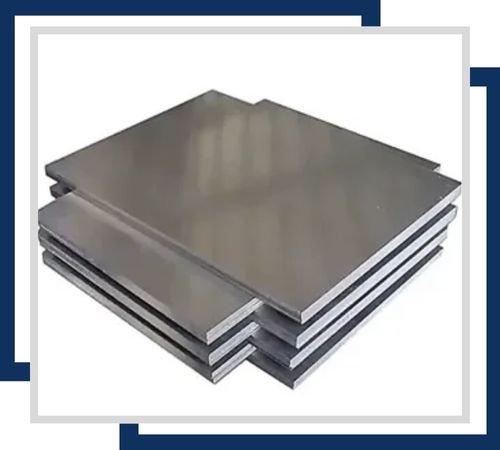

These stainless steel 253MA cold rolled plates are made at room temperature, giving these plates a smooth finish with very precise dimensions. Thickness is available from 0.3mm up to 3mm and offers high resistance against corrosion. They are ideal for applications wherein tight tolerances and high quality of surface finish can be achieved.

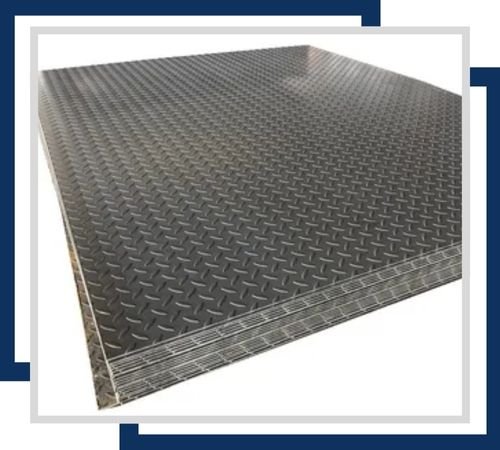

Stainless Steel 253MA Chequered Sheets provide a raised diamond pattern for improved grip and aesthetics. Available in gauges between 3mm and 12mm, these sheets have corrosion resistance properties. The product is widely used in floorings, walkways, and decorative applications.

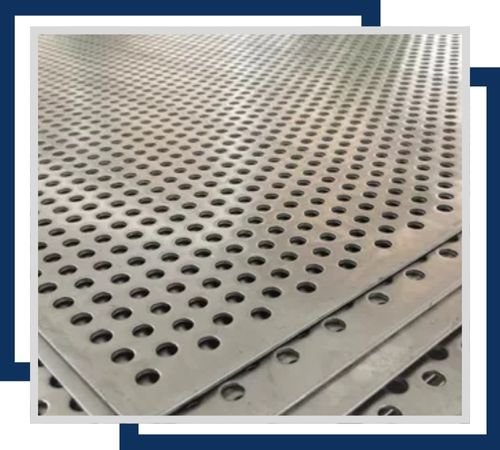

Stainless Steel 253MA perforated plates offer evenly spread holes, used for ventilation, filtration, and decorative purposes. They offer these plates in various hole sizes, available from 0.5mm to 5mm thickness. They have excellent corrosion resistant and good for applications where they need to allow airflow and drainage.

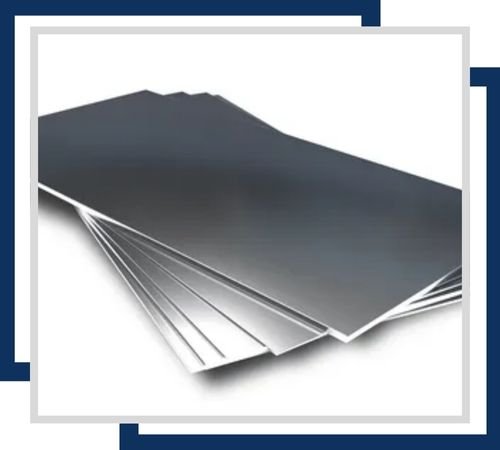

Stainless Steel 253MA Shim Sheets are thin and precise sheets applied for adjustments and alignment in machinery and structures. They are offered in a variety of thickness from 0.1mm up to 3mm. Their excellent corrosion resistance makes them critical for tight tolerance applications in numerous industries.

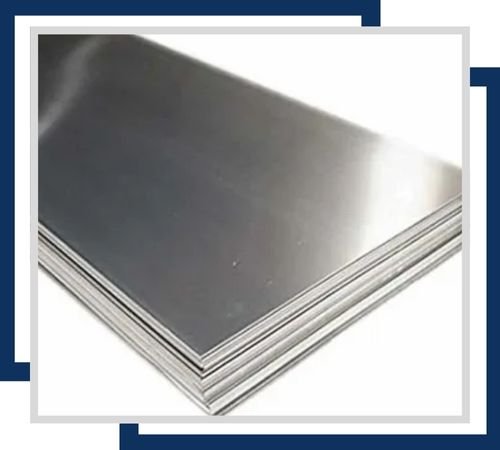

Stainless Steel 253MA Polished Plates are buffed to a reflective, mirror-like finish. The plates are available in thicknesses from 0.3mm to 50mm. They are used in architectural, decorative, and high-visibility applications due to their superior corrosion resistance.
Vinit Stainless prioritizes delivering a seamless customer experience backed up by thorough documentation of the premium-quality Stainless Steel 253MA Sheets and Plates. Essential documents include the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. These documents create authenticity and superior quality of our products that earn the trust of our esteemed clients. Moreover, we offer Stainless Steel 253MA sheets and plates with various test certificates including MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report and Third-Party Inspection Certificate. These test certificates indicate our customer-centric approach while achieving excellence in every product.
High-temperature industrial applications requiring strength and resistance to oxidation frequently use stainless steel 253MA sheets and plates. They are perfect for parts like burners, kilns, furnaces, and heat exchangers in the cement, petrochemical, and power generation sectors. They are also extensively utilized in structural components subjected to mechanical and thermal stress, boiler systems, catalytic converters, and thermal processing apparatus. They are also appropriate for use in refineries, chemical plants, and aerospace systems due to their exceptional resistance to oxidation and corrosion. Even in the most demanding high-temperature service environments, 253MA guarantees dependability and durability.
