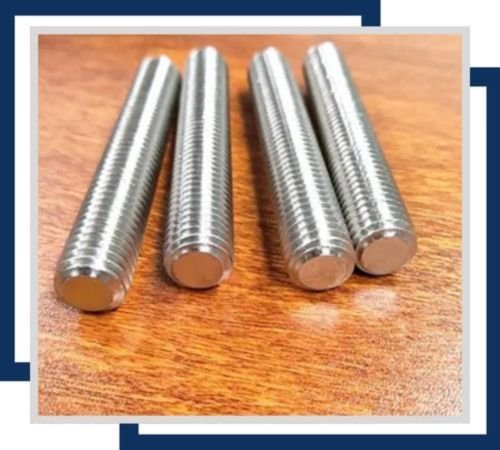

Based in Chennai, India, Vinit Stainless is a reputable producer and supplier of 304H stainless steel stud bolts. The business offers premium-grade fasteners made for high-temperature and high-pressure applications and has a solid reputation for accuracy and quality. To satisfy international standards, SS 304H Stud Bolts are produced utilising sophisticated procedures and strict quality controls. These bolts, which are widely used in refineries, petrochemical industries, and power plants, are renowned for their strength, resilience to corrosion, and durability. Vinit Stainless is a preferred supplier for essential industrial fastening solutions in India and around the world because of their prompt delivery, personalised sizes, and first-rate customer service.
The austenitic stainless steel alloy used to make 304H stud bolts has a high carbon content (0.04%–0.10%), 18–20% chromium, and 8–10.5% nickel. Creep resistance and high-temperature strength are improved by the higher carbon content. These stud bolts have good elongation, yield strength (about 205 MPa), and exceptional tensile strength (up to 515 MPa). Additionally, SS 304H is suitable for high-heat environments because it retains its toughness even at high temperatures. It is easily welded and fabricated using standard techniques, has good oxidation resistance, and is non-magnetic when annealed.
| Grade | Stainless Steel 304, 304H, 304L |
| Specifications | ASTM A193 / ASME SA193 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3mm to 200mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Types | Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Bronze Hex Studs, Threaded Studs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel DIN 1.4301 Stud Bolts offer superior strength and corrosion resistance, adhering to DIN standards. Ideal for general-purpose applications, they ensure reliable performance in various industrial settings.

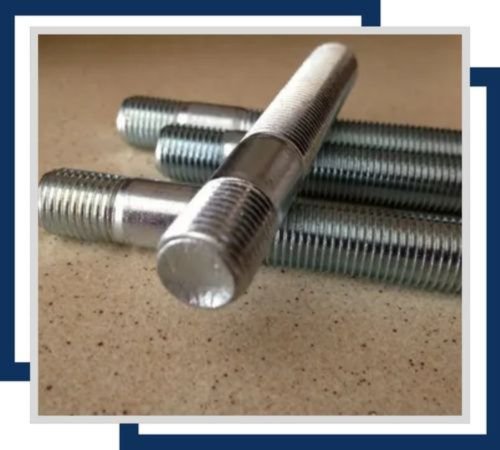

Stainless Steel UNS S30409 Stud Bolts deliver high strength and excellent resistance to corrosion and high temperatures. Suitable for demanding industrial applications, they ensure durability and reliability in challenging environments.

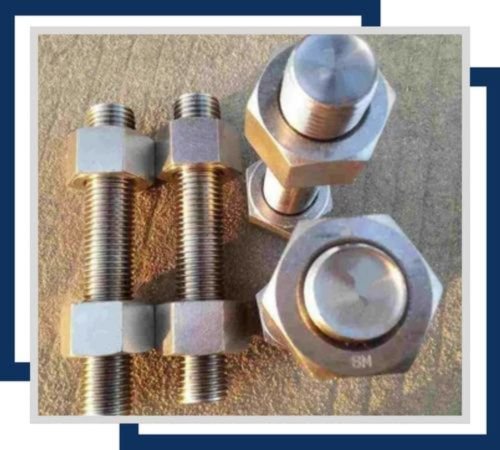

Stainless Steel 304H Flush Head Stud Bolts combine high strength with a sleek, flush design, ideal for applications requiring minimal protrusion. They offer excellent corrosion resistance and durability in harsh environments.
Because of their increased strength and resistance to creep, stainless steel 304H stud bolts are mostly utilised in high-temperature and pressure applications. In refineries and power plants, they are extensively used in piping systems, boilers, superheaters, heat exchangers, and pressure vessels. For safe and durable connections in corrosive environments, the chemical and petrochemical industries also depend on these fasteners. Furthermore, SS 304H stud bolts can be used in furnace parts, steam processing and other thermal systems. They are perfect for crucial applications where dependability and performance are crucial due to their longevity, resistance to corrosion, and stability at high temperatures.
