With its headquarters located in Chennai, India, Vinit Stainless is a reputable manufacturer and supplier of stainless steel 304H tubing. Vinit Stainless is well-known for its dedication to accuracy and quality, and it offers high-performance tubing solutions made for applications requiring high pressure and temperature. High carbon austenitic stainless steel, which is used to make SS 304H tubing, is perfect for heat-resistant settings like refineries, petrochemical plants, and power plants. International standards for strength, durability, and corrosion resistance are met by these tubes, which are manufactured using sophisticated techniques and stringent quality control. Vinit Stainless is a reputable brand in the stainless steel sector because it guarantees prompt delivery and top-notch customer support.
A high-carbon variant of 304 stainless steel, 304H tubing has 0.04–0.10% carbon, 8–10.5% nickel, and 18–20% chromium. Strength and creep resistance at higher temperatures are improved by the higher carbon content. It has good elongation and toughness, as well as a tensile strength of about 515 MPa and a yield strength of about 205 MPa. Because it can withstand extended exposure to high temperatures without losing its structural integrity, SS 304H tubing is appropriate for applications involving pressure. Long-term performance in demanding service environments is ensured by its exceptional corrosion resistance, weldability, and resistance to high-temperature oxidation.
| Alloy 304H Standards | Stainless Steel 304H |
|---|---|
| ASTM A213 Stainless Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| ASTM A249 TP 304H Stainless Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| ASTM A269 TP 304H Stainless Steel Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| ASME SA213 TP 304H Stainless Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| SS 304H Length | Single Random, Double Random, Standard & Cut length Tube |
| UNS S30409 Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| ASTM A213 Gr. TP304H Form | ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| ASTM A269 TP 304H Stainless Steel Type | Seamless, ERW, EFW, Welded, Fabricated Tube |
| ASTM A213 Stainless Steel End | Plain End, Beveled End, Treaded Tube |
| ASME SA213 SS 304H Marking | All 304h Stainless Steel Tube are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| ASME SA213TP 304H Stainless Steel Application | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| 304H SS Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Stainless Steel 304H Specialize in | Stainless Steel 304H Capillary Tube & Other Odd Size Alloy 304H Heat Exchanger & Condenser Tube |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.

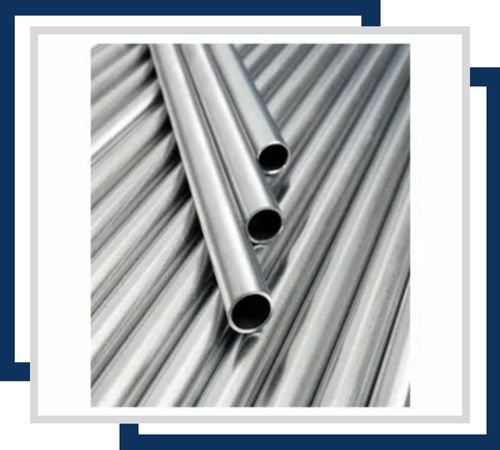

These tubes offer superior corrosion resistance, ideal for high-pressure applications. Sizes typically range from 1/8″ to 24″ in diameter. They provide excellent durability and are used in industries requiring precise tolerances.

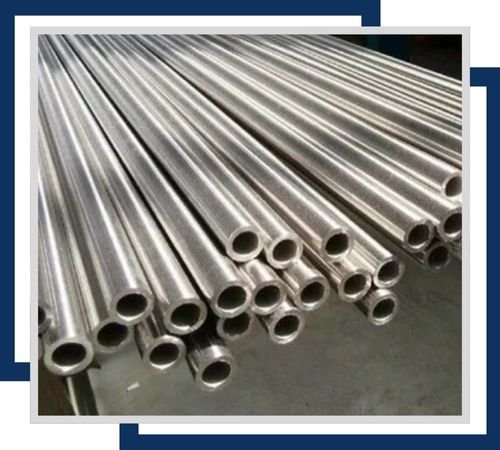

Known for its excellent corrosion resistance, this tubing is available in sizes from 1/8″ to 24″. It’s cost-effective for less critical applications and offers good strength and flexibility for various uses.

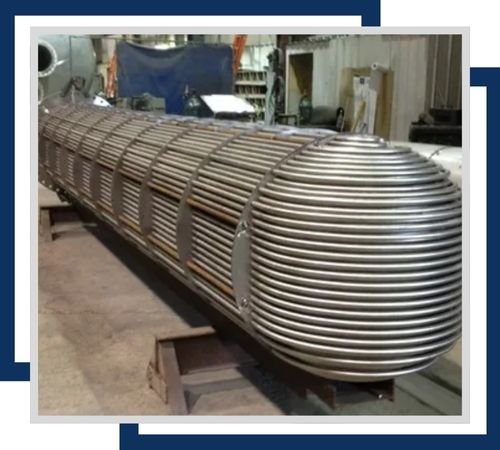

These tubes excel in corrosion resistance and thermal conductivity. Common sizes range from 1/2″ to 1-1/2″ in diameter, designed for efficient heat transfer in industrial applications.

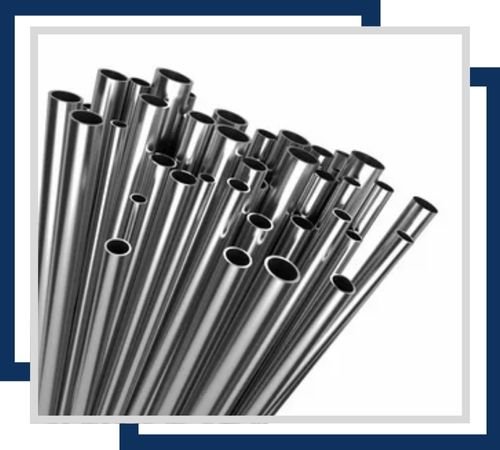

Providing high corrosion resistance, these tubes are typically available in sizes from 1/16″ to 2″. They are crucial for precise instrumentation and control systems in various industries.

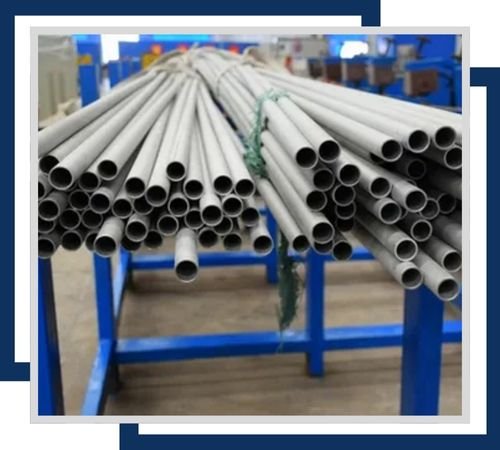

These corrosion-resistant tubes come in sizes typically from 1/2″ to 5″ in diameter. They are designed to withstand high temperatures and pressures in boiler systems.

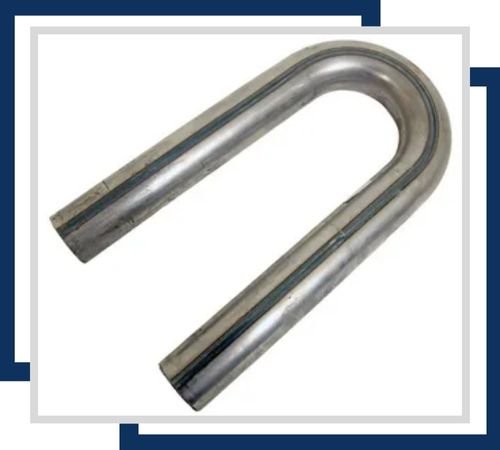

Featuring high corrosion resistance, these U-shaped tubes are available in sizes from 1/2″ to 1-1/2″. They are commonly used in heat exchangers and condensers for efficient thermal management.

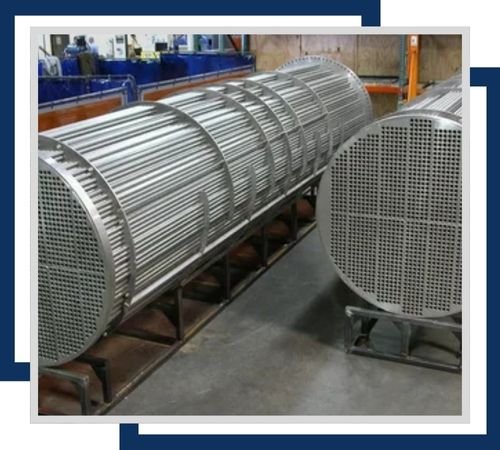

Known for its superior corrosion resistance, this tubing ranges from 3/8″ to 1-1/4″ in diameter. It’s used in condensers to efficiently transfer heat and condense steam into water.

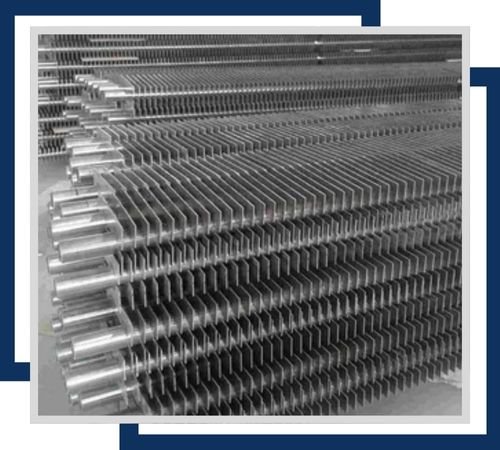

These tubes offer excellent corrosion resistance and are available in sizes typically from 1/2″ to 1-1/2″. They are used in applications requiring enhanced heat transfer efficiency due to their extended surface area.
In many different industries, stainless steel 304H tubing is widely used in high-temperature and high-pressure applications. Heat exchangers, boilers, superheaters, steam piping, and pressure vessels in refineries and power plants are examples of common applications. It is also utilised in parts of furnaces with high temperatures, oil and gas pipelines, and equipment used in chemical processing. It is perfect for extended heat exposure because of its high carbon content, which guarantees improved strength and creep resistance. SS 304H tubing can also be used for welding and fabrication, providing dependable performance in sectors that need corrosion resistance, high-temperature endurance, and structural stability.
