Vinit Stainless, headquartered in Chennai, India, is a leading manufacturer and provider of high-quality stainless steel products. We are experts in SS 304L flanges, which are renowned for their superior corrosion resistance, strength, and weldability. Our world–class manufacturing units and competent team ensure that every flange is produced to international standards and customer-specific needs. For low-pressure piping lines or corrosive environments, Vinit Stainless provides products that ensure reliability as well as long-term performance. With a firm emphasis on quality control and timely supply, we cater to industries such as chemical, petrochemical, power, and food processing in India and abroad.
SS 304L flanges are low-carbon forms of SS 304, which contain 18–20% chromium and 8–12% nickel with a maximum carbon level of 0.03%. This reduced carbon level enhances resistance to intergranular corrosion after welding. Mechanical specifications consist of tensile strength of 485 MPa, yield strength of 170 MPa, and elongation of approximately 40%. SS 304L exhibits excellent cryogenic and elevated temperature strength and toughness. These flanges provide excellent weldability, resistance to corrosion in mildly acidic conditions, and are best suited for applications where heat treatment after welding is not possible.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

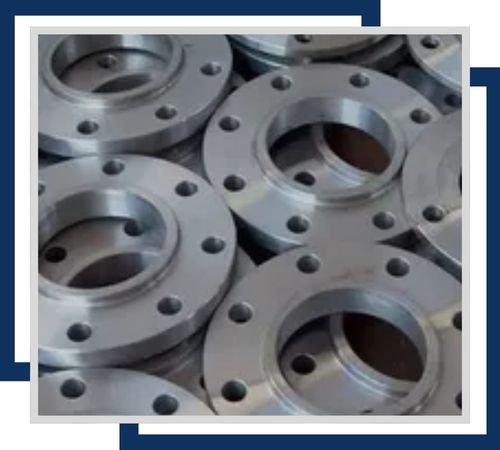

SS 304L socket weld flanges are designed for high-strength, secure connections in piping systems. Made from stainless steel 304L, they provide excellent resistance to corrosion and ease of installation.

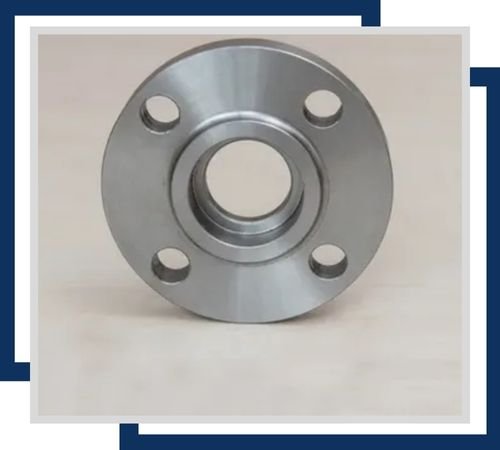

SS 304L ring type joint flanges provide a robust seal for high-pressure applications. Made from stainless steel 304, they ensure a tight, leak-proof connection with their precision-engineered ring design.

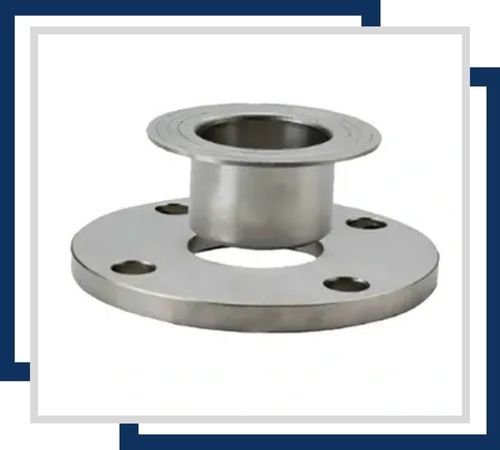

SS 304L forged flanges are crafted from stainless steel 304L through a forging process, offering exceptional strength and durability. They are ideal for high-pressure applications and resist corrosion effectively.
SS 304L flanges find extensive use in industries where there is a need for high corrosion resistance as well as good weldability. Some typical applications are piping systems in chemical plants, food and beverage plants, pharmaceutical plants, and water treatment plants. These flanges are perfect for applications in which there is frequent exposure to moisture, mild chemicals, or oxidizing agents. Due to their low carbon content, SS 304L flanges are used for welded applications where there is no necessity for post-weld annealing. They are also perfect for use in marine systems, oil and gas systems, and structural piping where reliability and sanitation are paramount.
