Home > Sheet and Plates > Stainless Steel 305 Sheet and Plates
Based in Chennai, India, Vinit Stainless is a well-known producer and supplier of high-end stainless steel goods. Our specialty is Stainless Steel 305 Sheets and Plates, which are renowned for their strength, resistance to corrosion, and visual appeal. We are dedicated to quality and innovation. These products are perfect for a variety of industries, such as manufacturing, automotive, and construction. Our commitment to accuracy, efficiency, and client satisfaction is evident in every sheet and plate we manufacture. Vinit Stainless is a well-known brand in the stainless steel sector both domestically and internationally thanks to its prompt delivery and reliable quality.
Austenitic stainless steel alloy 305 contains 18–20% chromium, 8–10% nickel, and trace amounts of carbon, silicon, and manganese. Its low carbon content enhances weldability by providing resistance to carbide precipitation during welding. Excellent formability and strength are guaranteed by mechanical properties such as a tensile strength of 515–700 MPa, a yield strength of 205 MPa, and an elongation of 40%. Because SS 305 is non-magnetic when annealed and has good oxidation and pitting resistance—particularly in aggressive or corrosive environments—it can be used in a variety of industrial settings.
| Element | 305 |
| Carbon | 0.12 |
| Chromium | 17.0-19.0 |
| Nickel | 10.5-13.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Property | 305 |
| Yield Strength, min. (ksi) | 25 |
| Tensile Strength, min. (ksi) | 70 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 88 |
Contact us to get a quick quote for your requirement.

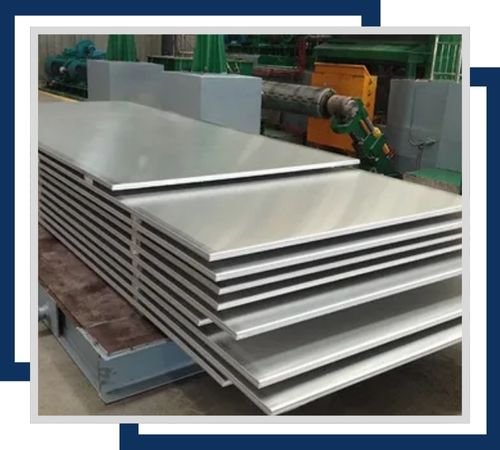

The 305 stainless steel in hot rolled sheets is corrosion-resistant, strong, and versatile. These sheets are usually available in various thicknesses between 1.5mm and 25mm and up to 2000mm in width. Ideally, they find applications in heavy-duty sectors and structural elements.

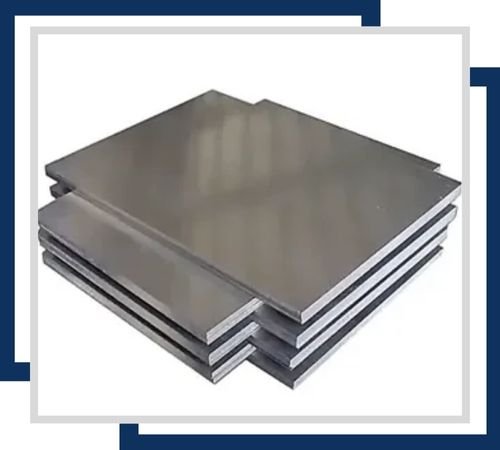

These cold-rolled plates have excellent corrosion resistance and a smooth, polished surface. They are available in thicknesses from 0.3mm to 3mm and widths up to 1500mm and are widely used in automotive, kitchen, and architectural applications.

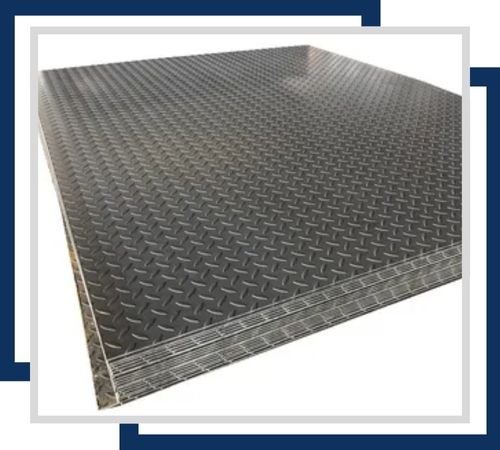

Stainless Steel 305 chequered plates are surface patterned with slip resistance; they have a good corrosion-resistant property. It is available in 2mm to 10mm thickness and 1250mm width for use in flooring and stair treads.

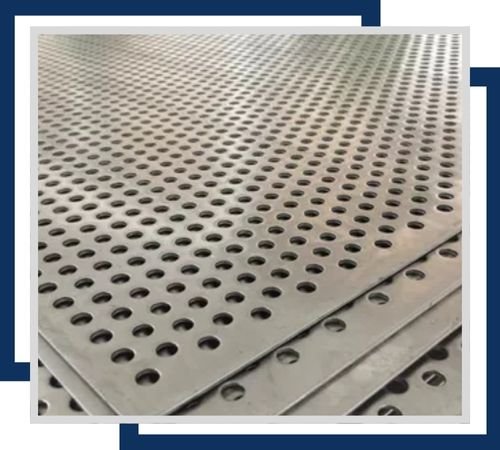

The perforated stainless steel 305 sheets have been specially designed to exhibit excellent corrosion resistance, having holes for ventilation and aesthetic purposes. They usually vary in sizes ranging from 0.5mm to 6mm thickness. The sheet may be ordered as per required dimension and hole pattern.

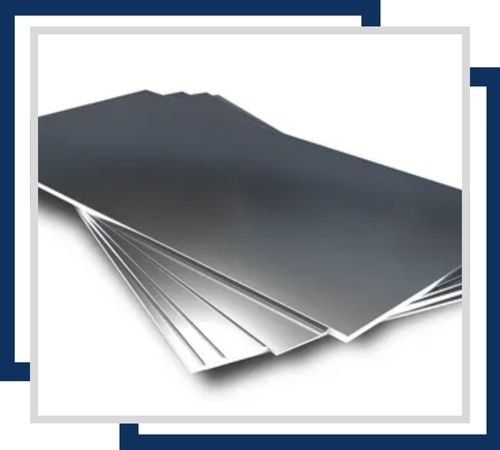

Used for precise spacing and levelling, these shim sheets provide superior corrosion resistance. These are available in thicknesses ranging from 0.1mm to 3mm and in various dimensions and are ideal for mechanical and structural applications where exact tolerances are required.

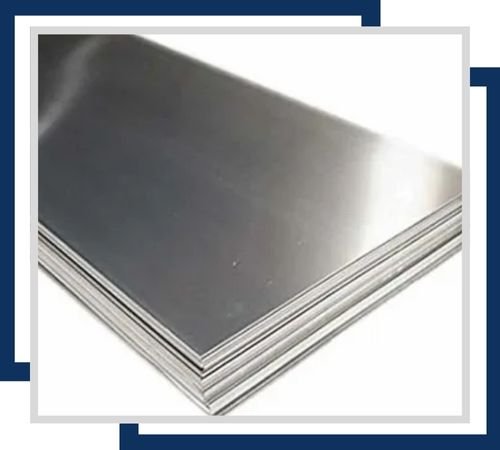

Known for their excellent corrosion resistance and aesthetic appeal, polished plates come in thickness from 0.5mm up to 50mm and up to 2000mm width. They are mainly used for decorative and high-visibility applications where a desired high-gloss finish is achieved.
Vinit Stainless promises superior customer satisfaction supplemented by thorough documentations of Stainless Steel 305 Sheets and Plates. The documentations that our company offers contain the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. All the documents authenticate products for superiority qualities and thereby are helpful in attaining the utmost trust from all valued customers. We also provide Stainless Steel 305 Sheets and Plates along with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our commitment to continuous product excellence.
Applications needing superior formability and corrosion resistance frequently use stainless steel 305 sheets and plates. Common industries where corrosion protection and hygiene are crucial include chemicals, food processing, and pharmaceuticals. It is also utilized in medical equipment, kitchen appliances, and architectural designs because of its aesthetically pleasing finish and easy-to-clean surface. It is appropriate for use in heat exchangers, tanks, piping, and seawater applications due to its resistance to oxidation in harsh conditions. For components needing both form and function, SS 305 is the perfect material because of its deep drawing capabilities and dependable performance at high temperatures.
