Based in Chennai, India, Vinit Stainless is a well-known producer and supplier of stainless steel 309 tubing. Vinit Stainless offers tubing solutions made for corrosive and high-temperature environments with a strong emphasis on performance and quality. To satisfy international quality and performance standards, SS 309 tubing is produced using premium raw materials and cutting-edge production techniques. These tubes are well-known for being strong, heat-resistant, and weldable, making them perfect for demanding applications in a variety of industries, including power generation, thermal processing, and petrochemicals. In both domestic and foreign markets, Vinit Stainless guarantees dependable service, prompt delivery, and client satisfaction.
With higher chromium content than 304 for better oxidation resistance, stainless steel 309 tubing is a high-temperature austenitic stainless steel alloy made up of roughly 23% chromium and 12% nickel. With a yield strength of about 205 MPa and a tensile strength of about 550 MPa, it provides exceptional mechanical strength. Even at high temperatures, the material offers good toughness and elongation. Applications involving extreme heat and corrosive conditions can benefit from SS 309’s exceptional resistance to oxidation, sulfidation, and carburisation, as well as its ability to maintain structural integrity in environments up to 1000°C.
| Specifications | ASTM A/ASME SA213 / A249 / A269 |
| Dimensions | ASTM, ASME and API |
| SS 309 Tubes Size | 10.29 OD (mm) – 762 OD (mm) |
| Thickness | 0.35 OD (mm) to 6.35 OD (mm) in thickness ranging from 0.1mm to 1.2mm. |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round Tubes, Custom Tubes, Square Tubes, Rectangular Tubes, “U” Shape, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Grade | 309 | |
|---|---|---|
| min | max | |
| C | – | 0.20 |
| Mn | – | 2 |
| Si | – | 1 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 18.0 | 23.0 |
| Mo | – | – |
| Ni | 8.0 | 14.0 |
| N | – | – |
| Grade | 309 | |
|---|---|---|
| Tensile Strength (MPa) min | 620 | |
| Yield Strength 0.2% Proof (MPa) min | 310 | |
| Elongation (% in 50mm) min | 45 | |
| Hardness | Rockwell B (HR B) max | 85 |
| Brinell (HB) max | 169 | |
Contact us to get a quick quote for your requirement.

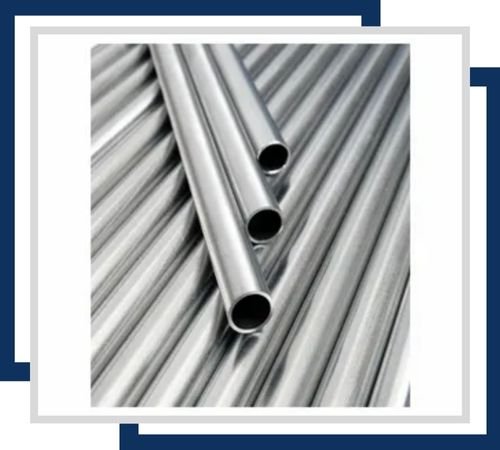

Stainless Steel 309 Seamless Tubing offers excellent corrosion resistance and is available in sizes ranging from 1/8″ to 12″ nominal diameter. It is ideal for high-temperature applications, with superior strength and durability. This tubing type ensures leak-free connections due to its seamless construction.

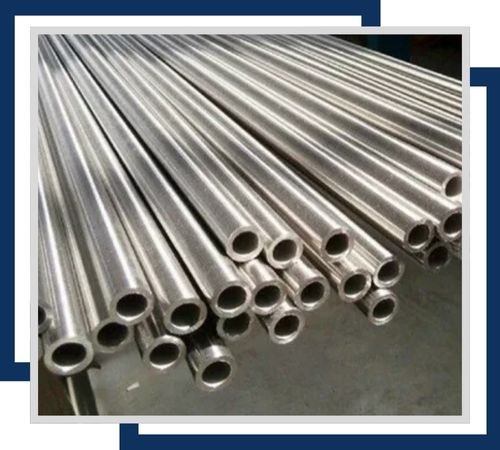

Stainless Steel 309 Welded Tubing provides good corrosion resistance and is available in sizes from 1/8″ to 24″ nominal diameter. It is produced by welding rolled strips of 309 stainless steel, making it cost-effective for various industrial applications. The welded joints are robust, ensuring long-term reliability.

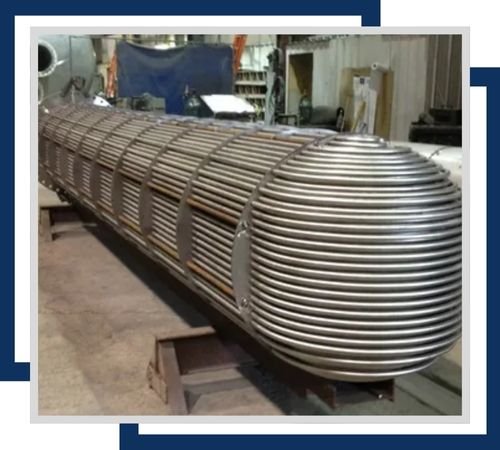

Stainless Steel 309 Heat Exchanger Tube excels in high-temperature environments and comes in sizes from 1/4″ to 12″ outer diameter. Its excellent corrosion resistance makes it suitable for chemical processing and power generation industries. This tubing ensures efficient heat transfer and durability in demanding conditions.

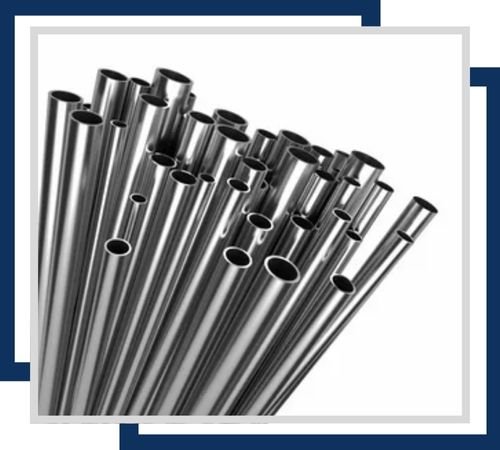

Stainless Steel 309 Instrumentation Tubing, available in sizes from 1/8″ to 1″ nominal diameter, offers superior corrosion resistance and precision. It is ideal for use in high-pressure and high-temperature instrumentation systems. The smooth internal surface ensures accurate and reliable fluid flow.

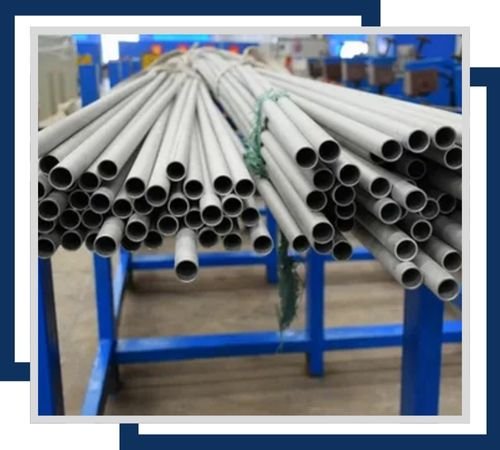

Stainless Steel 309 Boiler Tubes provide exceptional corrosion resistance and are available in sizes from 1/4″ to 5″ outer diameter. They are designed to withstand high temperatures and pressures in boiler systems. These tubes offer longevity and efficiency in steam generation and other heat-related processes.

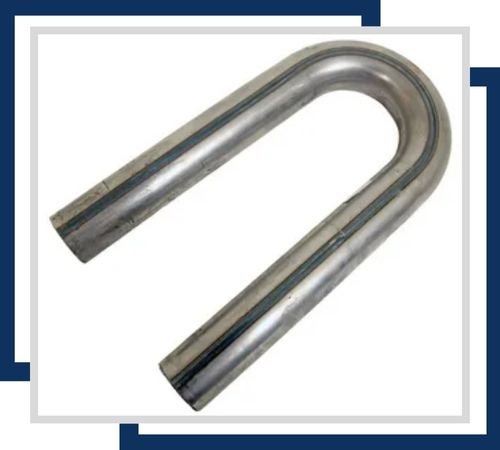

Stainless Steel 309 U-Tubes, with sizes ranging from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and are shaped for efficient heat exchange in compact spaces. They are widely used in heat exchangers, condensers, and economizers. Their U-shape design ensures optimal thermal performance.

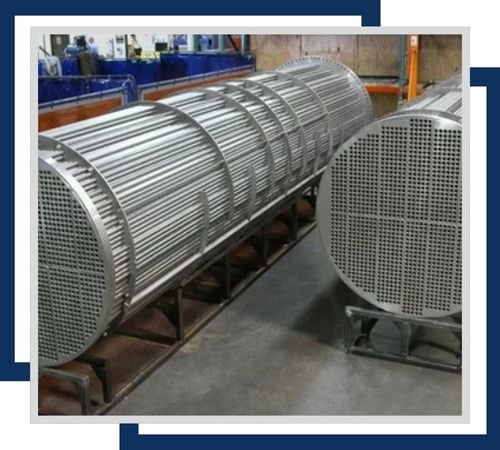

Stainless Steel 309 Condenser Tube provides high corrosion resistance and is available in sizes from 1/4″ to 2″ outer diameter. It is used in condensers for efficient heat transfer in various industrial processes. This tubing type ensures durability and performance in corrosive environments.

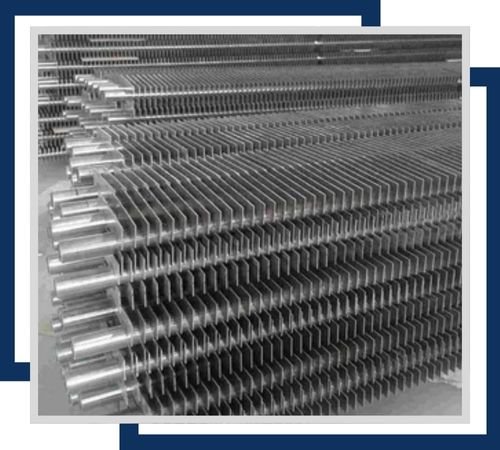

Stainless Steel 309 Fin Tubes, available in sizes from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and enhanced heat transfer efficiency. The finned design increases the surface area, making them ideal for heat exchangers and cooling systems. These tubes provide reliable performance in high-temperature applications.
Because of its exceptional resistance to oxidation and heat, stainless steel 309 tubing is frequently utilised in high-temperature applications. Boiler tubes, heat exchangers, thermal processing units, and furnace components are examples of common applications. It is widely utilised in waste incineration systems, cement kilns, refineries, and petrochemical plants. Additionally, radiant tubes, catalytic converters, and flue gas systems are all excellent uses for SS 309 tubing. It is appropriate for the chemical processing and power generation industries due to its high corrosion resistance. It is also utilised in the construction of industrial ovens, chimney liners, and ducts where structural dependability and long service life are essential.
