Vinit Stainless is a reliable manufacturer and supplier of high-quality stainless steel products, with its headquarters in Chennai, India. We are specialized in manufacturing high-performance SS 309H forged fittings, used in high-temperature and corrosive applications. With a pledge to quality, accuracy, and reliability, Vinit Stainless provides forged fittings that meet international standards and specifications. Our advanced infrastructure, expert manpower, and high standards of quality control procedures guarantee that all fittings conform to the stringent requirements of industries like petrochemical, power generation, and shipbuilding. We take pride in serving our customers in India and abroad at competitive rates and with prompt delivery.
SS 309H forged fittings consist of an austenitic stainless steel alloy with 22–24% chromium, 12–15% nickel, and higher carbon content (0.04–0.10%) for enhanced high-temperature strength. The alloy has superior resistance to oxidation and structural stability at high temperatures. Mechanical properties are specified with minimum tensile strength of 550 MPa, yield strength of 205 MPa, and elongation of about 40%. These fittings also possess good creep resistance and thermal stability and are well suited for use in long-term service in demanding applications that entail high heat and mechanical stresses.
| Specifications | ASTM A403 / ASME SA403, ASTM A182 & ASME SA182 |
| Forged Fittings Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Buttweld Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Buttweld Fittings Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Forged Fittings Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Buttweld Fittings Type | Seamless / Welded / Fabricated |
| Forged Fittings Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Buttweld Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Buttweld Fittings Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Grade | C | Mn | Si | P | S | Cr | Ni | Fe | |
| SS 309H | 0.04-0.10 | 2.0 | 0.75 | 0.045 | 0.03 | 22.0-24.0 | 15.0 | 58.0-63.0 | |
| Grade | Tensile Strengtd ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) max |
| 309H | 40 | 30 | 40 | 217 |
Contact us to get a quick quote for your requirement.

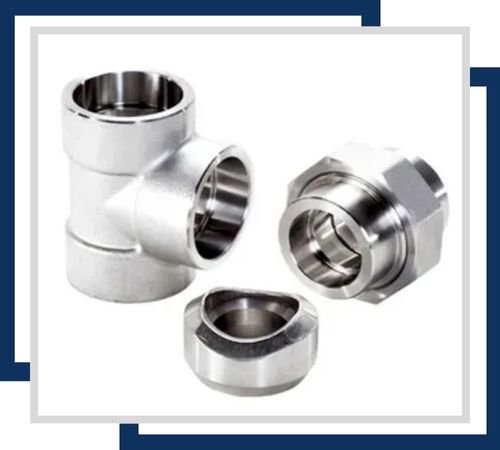

Corrosion-resistant and durable Stainless Steel 309H Socket Weld Fittings are used in high-temperature applications. They typically come in sizes ranging from 1/4″ to 4″, designed to withstand pressures up to 3000 psi, offering a reliable connection in critical systems.

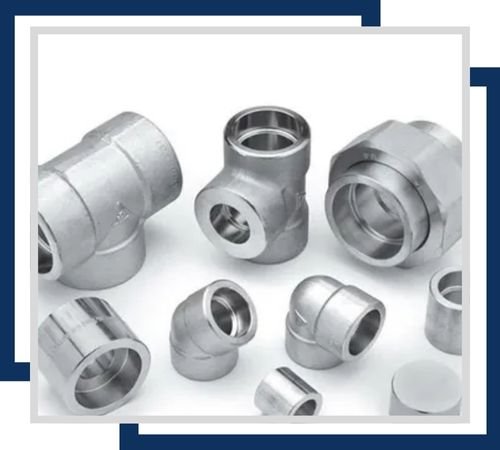

Known for excellent corrosion resistance, Stainless Steel 309H Threaded Fittings are ideal for high-temperature environments. They are available in sizes from 1/8″ to 6″, featuring standard threading for easy assembly and disassembly, making them suitable for various piping systems.

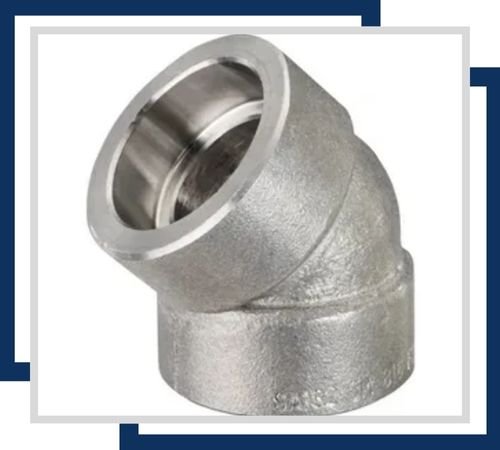

The Stainless Steel 309H Socket Weld 45 Degree Elbow has outstanding corrosion resistance and is designed for directional changes in piping systems. It comes from 1/2″ to 4″, offering a durable solution for high-temperature and high-pressure applications.

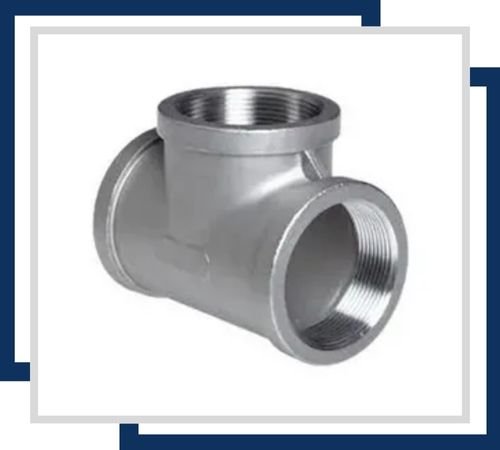

Stainless Steel 309H Threaded Tee offers superior corrosion resistance and creates branches in piping systems. Available in sizes ranging from 1/8″ to 6″, it ensures strong, leak-proof connections and is suited for high-temperature and pressure applications.

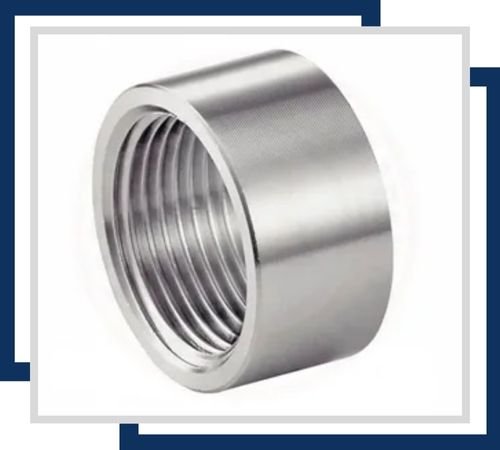

The Stainless Steel 309H Threaded Half Coupling offers excellent corrosion resistance and connects pipes of the same size. Sizes range from 1/8″ to 6″, designed for high-temperature environments, providing robust and secure fittings in piping systems.

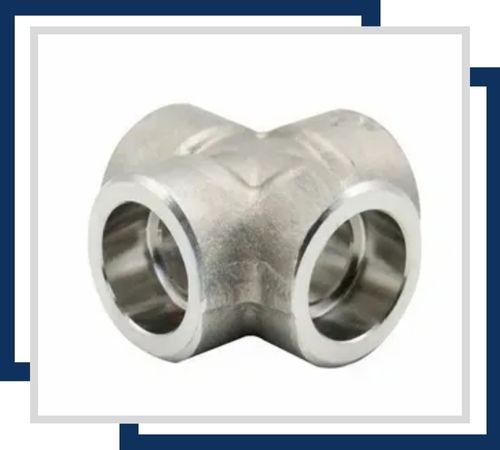

The Stainless Steel 309H Socket Weld Cross has excellent corrosion resistance and allows for four-way connections in piping systems. Available in sizes from 1/2″ to 4″, it is ideal for high-temperature applications and offers a durable solution for complex pipe layouts.
SS 309H forged fittings are extensively found in high-temperature, high-pressure, and corrosive service conditions. Fittings are necessary in oil and gas, petrochemical, refinery, thermal power, and chemical processing industries. Pipeline connections, pressure systems, boiler installations, and heat exchangers are common applications where joint integrity is paramount. Their improved carbon content contributes improved creep resistance at high temperatures and is thus suitable for superheaters and reheater tubes. They also have exceptional corrosion resistance and strength, which maintains durability in marine and offshore environments, where harsh conditions require high-performance materials.
