Vinit Stainless is a well-known producer and exporter of high-quality stainless steel items, headquartered in Chennai, India. With an unwavering dedication to customer satisfaction and quality, the firm deals with an extensive variety of industrial fittings, such as SS 310 Forged Fittings. These fittings are designed to the highest industry standards and find extensive applications across a wide range of industries because of their higher durability and performance under extreme conditions. Vinit Stainless brings together innovative manufacturing processes along with rigorous quality control procedures to provide products that guarantee reliability, corrosion resistance, and high mechanical strength for demanding industrial use.
SS 310 Forged Fittings consist mainly of chromium (24-26%) and nickel (19-22%), ensuring superior oxidation and corrosion resistance. SS 310 contains small traces of manganese, silicon, and carbon. Mechanically, SS 310 has a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and elongation of 40% in 50mm. SS 310 retains strength and toughness even at elevated temperatures and is thus best suited for high-temperature applications. These characteristics render SS 310 forged fittings ideal for use in situations that need resistance to thermal stress, creep, and overall wear in aggressive service conditions.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 ma | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.

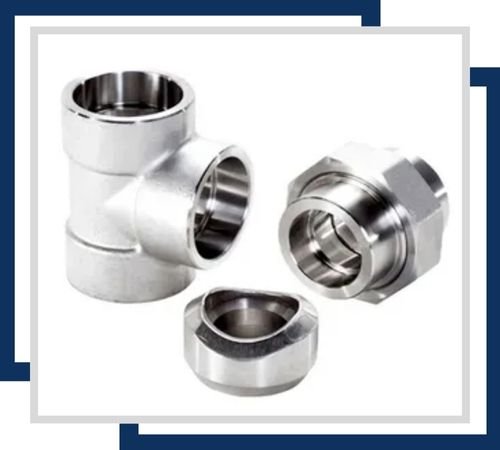

These fittings are highly resistant to oxidation and corrosion at elevated temperatures. They are designed for high-pressure applications and come in various sizes typically ranging from 1/2 inch to 4 inches. Socket weld fittings are ideal for applications requiring a strong, leak-proof connection.

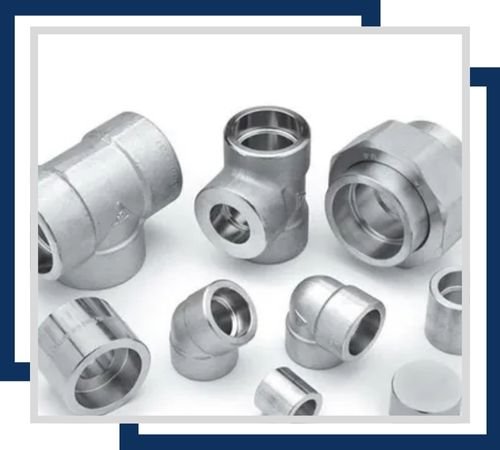

Threaded fittings in SS 310 offer excellent resistance to oxidation and corrosion, especially in high-temperature environments. Sizes generally vary from 1/8 inch to 4 inches. They are used for connecting pipes with threads, making them suitable for pressure-tight joints.

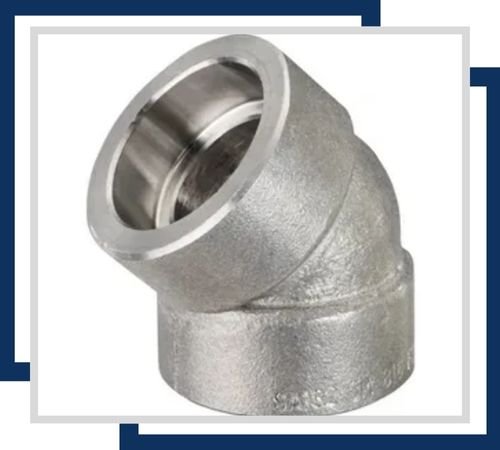

These elbows provide excellent corrosion resistance and are ideal for applications involving high temperatures. They are available in sizes from 1/2 inch to 4 inches and are used to change the direction of flow in piping systems by 45 degrees.

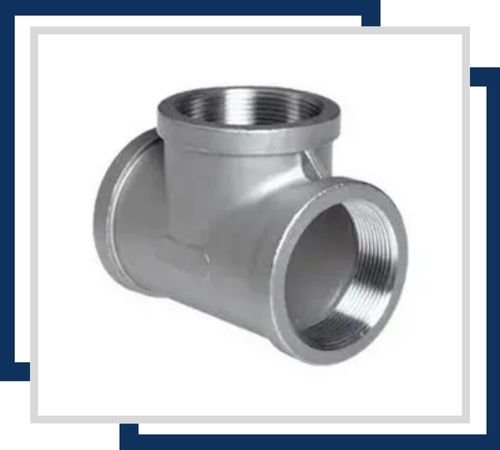

Threaded tees made of SS 310 exhibit superior resistance to high-temperature oxidation and corrosion. Common sizes range from 1/4 inch to 4 inches. These tees are used to branch out pipelines and provide a secure connection in high-pressure systems.

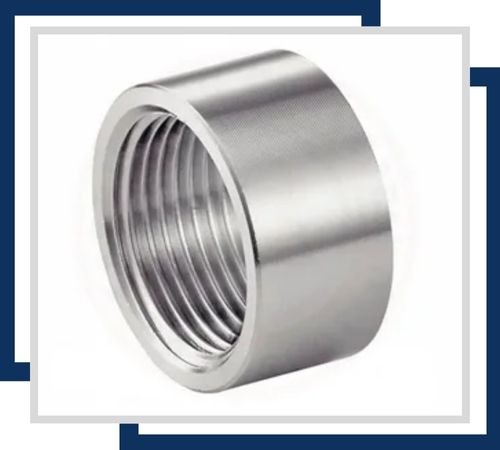

Offering excellent corrosion resistance, threaded half couplings are used to connect two pipes in high-temperature applications. Sizes typically range from 1/8 inch to 4 inches. They are ideal for creating a connection in the middle of a pipe.

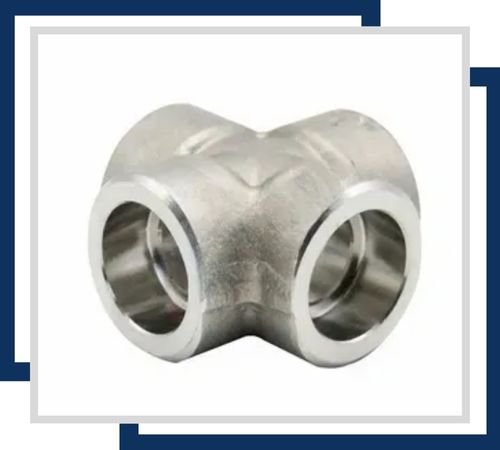

Socket weld crosses in SS 310S provide high resistance to oxidation and are used in high-pressure systems. They are available in sizes from 1/2 inch to 4 inches and allow for the intersection of four pipes, ensuring a robust connection.
SS 310 Forged Fittings find extensive application in industries that demand high-temperature and corrosion-resistant fittings. Some of the common applications involve heat exchangers, furnaces, power plants, chemical processing, and oil and gas pipelines. Their superior strength and resistance to oxidation at temperatures of up to 1100°C allow them to find application in thermal processing equipment and boiler parts. These fittings also find application in marine applications cryogenic services because of their highly stable mechanical performance. The superior durability and minimal maintenance needs of SS 310 forged fittings make them a stable option for long-term use in aggressive industrial applications.
