High-quality stainless steel 310 bars designed for demanding industrial applications are the speciality of Vinit Stainless, a leading stainless steel manufacturer and supplier with headquarters in Chennai, India. SS 310 bars are designed to function in extremely hot and cold conditions and are renowned for their exceptional resistance to heat and oxidation. At Vinit Stainless, we make sure every 310 bar satisfies international standards by using sophisticated manufacturing techniques and strict quality controls. Our products are used in a variety of industries, such as thermal, chemical, and power generation. Vinit Stainless provides dependable 310 bars that support long-lasting, high-performance solutions with an emphasis on accuracy and durability.
Chromium (24–26%) and nickel (19–22%), which are present in stainless steel 310 bars, offer exceptional resistance to oxidation and high temperatures. To balance strength and corrosion resistance, the carbon content is kept low, usually less than 0.25%. These bars have a yield strength of 205 MPa, a tensile strength of about 515 MPa, and an elongation of about 40%. Up to 1100°C, they are resistant to oxidation and scaling due to their austenitic microstructure, which also provides exceptional toughness and thermal stability. Under extended exposure to high temperatures, SS 310 bars retain their strength and integrity, guaranteeing dependability in demanding industrial settings.
| ASTM Specifications | ASTM A276, A479 /ASME SA276, SA479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Hex Bars in Milimeter | 18mm – 57mm (11/16″ to 2-3/4″) |
| Round Bars Diameter | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars Diameter | Outside Diameter in the range of 4mm to 100mm |
| Square Bars in Milimeter | 18mm – 47mm (11/16″ to 1-3/4″) |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Flat Bars in Milimeter | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Element | SS 310 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.

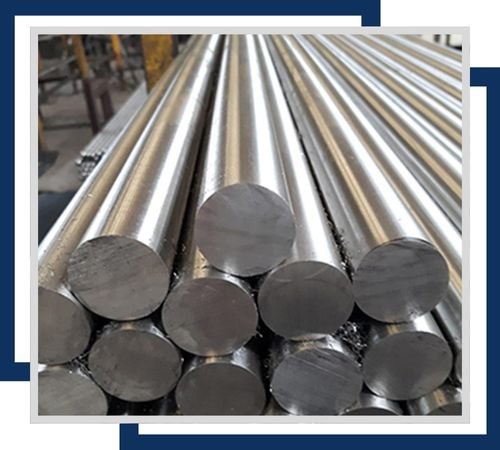

Stainless Steel 310 Round Bars provide exceptional heat resistance, available in diameters from 6mm to 500mm. Suitable for high-temperature applications such as furnace parts and heat exchangers, they ensure durability and reliability.

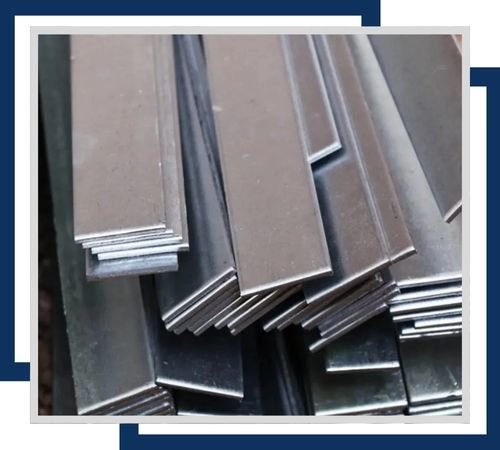

Stainless Steel 310 Flat Bars are available in thicknesses from 3mm to 100mm and widths from 12mm to 300mm. Ideal for structural and industrial applications, these bars offer excellent thermal stability and strength.

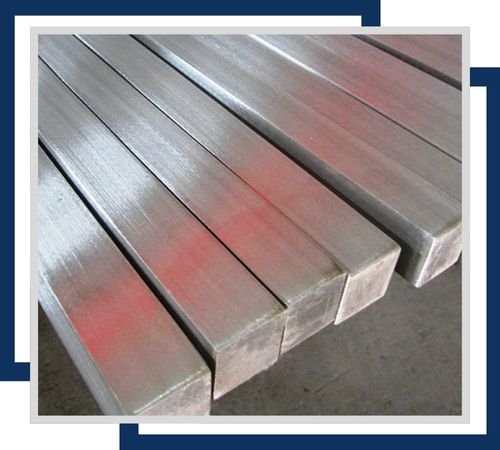

Stainless Steel 310 Square Bars, ranging from 6mm to 150mm, are designed for high-temperature environments. Their superior heat resistance makes them suitable for use in furnace components and industrial machinery.

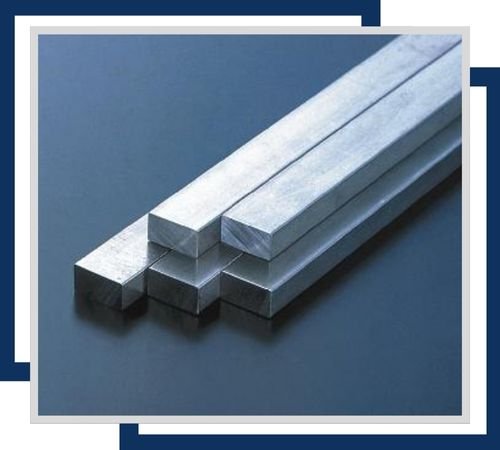

Stainless Steel 310 Rectangular Bars are available in thicknesses from 5mm to 100mm and widths from 10mm to 200mm. These bars are ideal for structural support in high-temperature applications, providing excellent strength and stability.

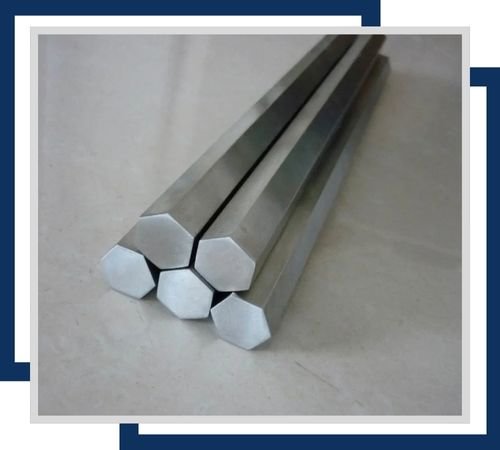

Stainless Steel 310 Hexagonal Bars, with sizes from 6mm to 100mm across flats, are perfect for high-temperature applications requiring strong, heat-resistant materials. They are commonly used in fasteners and fittings.

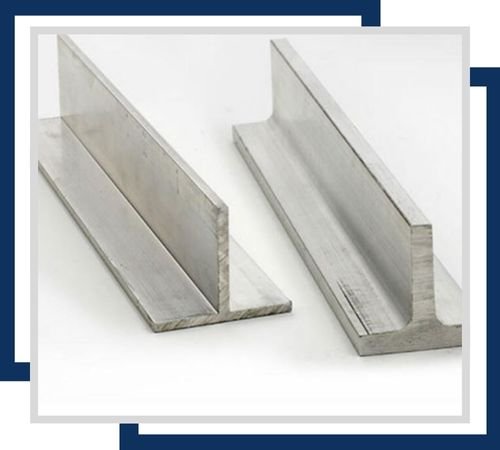

Stainless Steel 310 T Bars offer robust structural support, available in sizes from 20mm to 100mm in width. These bars are used in construction and architectural applications, providing high strength and heat resistance.
Heat exchangers, boiler components, kiln linings and furnace parts are just a few of the high-temperature applications for stainless steel 310 bars. They are perfect for producing combustion chambers, burners, and other crucial components that are subjected to heat and oxidation stress. Because of its superior mechanical qualities and heat resistance, SS 310 bars are used in a variety of industries, including steel production, petrochemicals, power plants, and aerospace. These bars are crucial to the thermal processing, refining, and energy industries because they are also used in the construction of structural elements that need to be durable at high temperatures and resistant to corrosion.
