Vinit Stainless is one of the top manufacturers and suppliers of high-performance stainless steel products in Chennai, India. It specializes in providing a vast array of structural steel components, such as the corrosion-resistant and long–lasting SS 316 Angle. Structured to be strong and long-lasting, SS 316 Angles find extensive applications in construction, fabrication, and industrial activities where they must withstand severe environments. Vinit Stainless provides products that are in line with international standards and guarantee reliability, dimensional accuracy, and superb surface finish. Through a robust distribution network and customer-centric attitude, Vinit Stainless keeps on serving various industries with a consistent quality and timely delivery.
SS 316 Angle is an austenitic stainless steel alloy containing 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which improves its resistance to corrosion, particularly against chlorides and sea environments. It contains up to 0.08% carbon, making it weldable and shapeable. The general mechanical properties are tensile strength 515 MPa, yield strength 205 MPa, and elongation 40%. SS 316 Angles are extremely resistant to pitting and crevice corrosion and retain their strength and performance even under high-temperature and high-pressure applications.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| Stainless 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Stainless 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| Stainless 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| Stainless 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 316/316L angles are L-shaped structural components known for their excellent corrosion resistance, strength, and durability. They are used in marine, chemical, and high-temperature applications for support and reinforcement.
Stainless Steel 316/316L equal angles have two legs of the same length, forming a 90-degree angle. They offer high strength and corrosion resistance, ideal for structural support in demanding environments.
Stainless Steel 316/316L unequal angles have legs of different lengths, creating a 90-degree angle. They provide versatile support and reinforcement in construction and industrial applications, offering high strength and corrosion resistance.
Stainless Steel 316/316L L angles are L-shaped structural components offering high strength, durability, and superior corrosion resistance. They are used for framing and support in marine, chemical, and high-temperature environments.
SS 316/316L T-bar angles are stainless steel sections with a T-shaped profile, providing robust support and stability. They are ideal for structural and framework applications, offering high strength and corrosion resistance.

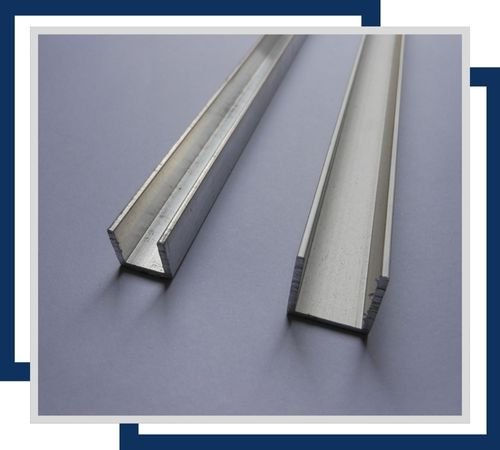

Stainless Steel 316/316L corner angles are L-shaped sections designed for reinforcing and joining corners. They offer high strength, durability, and excellent corrosion resistance, making them suitable for construction and architectural applications.
SS 316 Angles find extensive use in structural and support structures in industries where strength and corrosion resistance are a priority. They are most suitable for offshore platforms, water treatment plants, chemical processing facilities, and marine construction due to their high resistance to saltwater as well as corrosive chemicals. They find architectural usage, bridge construction, as well as industrial fabrication, providing both strength and beauty. In pharmaceutical and food industries, SS 316 Angles are selected due to their hygienic nature. Their weldability, flexibility, and high-temperature resistance make them ideal for load-bearing applications in harsh environments.
