Vinit Stainless is a leading manufacturer and supplier of high-quality stainless steel products based in Chennai, India. With a strong commitment to quality, precision, and customer satisfaction, we offer one of the widest selections of stainless steel materials, including Stainless Steel 316 and 316L Sheets and Plates. Known for their exceptional corrosion resistance and durability, these grades are ideal for demanding environments such as chemical processing, marine applications, and food industries. Vinit Stainless consistently meets industry standards and client expectations with timely delivery, robust products, and reliable service, making us a trusted partner across India and global markets.
Stainless Steel 316 and 316L are austenitic stainless steels composed of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which enhance corrosion resistance, especially in chloride-rich environments. The 316L grade contains a maximum of 0.03% carbon, improving weldability by minimizing carbide precipitation. These alloys provide excellent strength and ductility, with minimum tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%. The combination of mechanical strength and corrosion resistance makes them suitable for applications in harsh industrial, marine, and sanitary environments.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

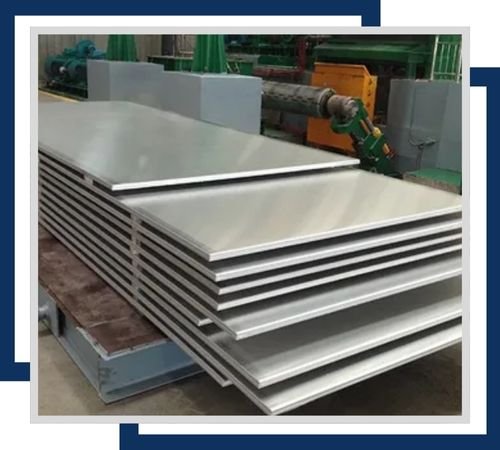

Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

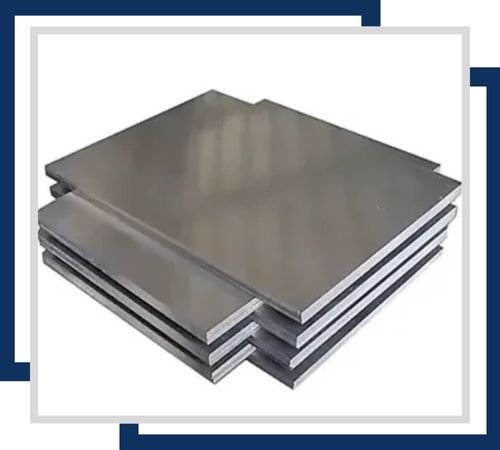

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

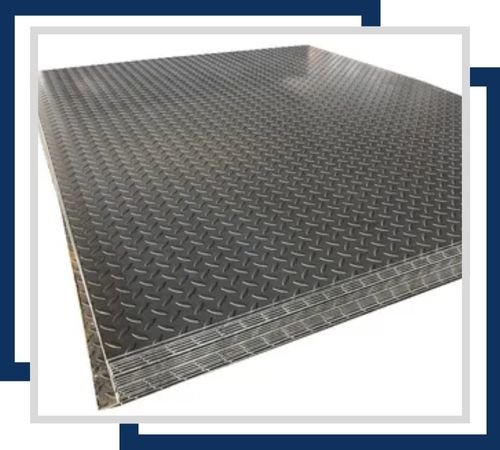

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

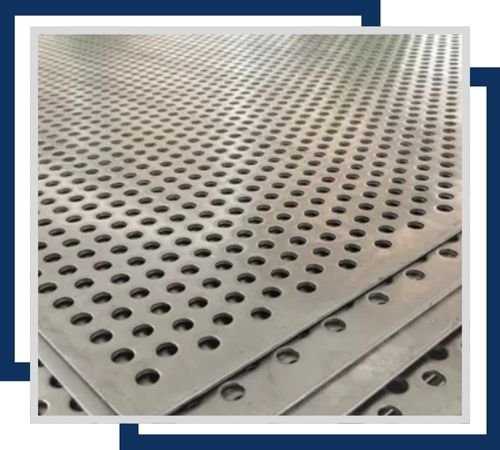

Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

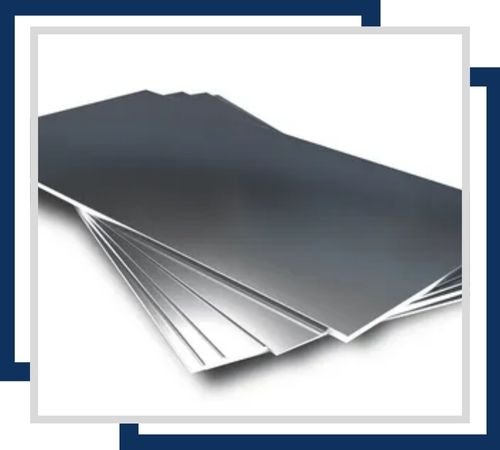

Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

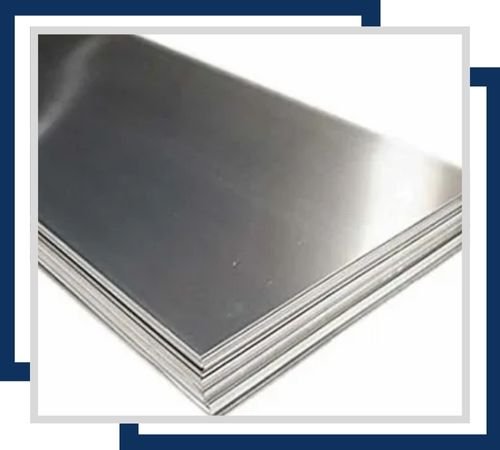

Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Vinit Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
316/316L stainless steel sheets and plates are widely used in settings that demand exceptional resistance to corrosion, particularly when chlorides and acidic media are present. Because of their resistance to pitting, crevice corrosion, and high temperatures, these materials are perfect for use in pressure vessels, chemical tanks, food processing equipment, pharmaceutical machinery, and marine components. Heat exchangers, piping systems, evaporators, and structural supports in hygienic and corrosive settings are further uses. They are the go-to option for industries requiring performance, safety, and durability under demanding operating conditions because of their superior formability, weldability, and hygienic qualities.
