Vinit Stainless is a well-established supplier and manufacturer of SS 316 bars in Chennai, India, famous for providing high-quality stainless steel solutions for applications that demand better corrosion resistance. SS 316 is a molybdenum-containing austenitic stainless steel that provides superior resistance to pitting and crevice corrosion in chloride environments. Our SS 316 bars find extensive application in marine, chemical, and pharmaceutical industries. Vinit Stainless offers SS 316 bars with superior strength, formability, and surface finish, conforming to domestic as well as international standards. Our focus on quality provides long-term performance and reliability in harsh operational conditions.
SS 316 contains 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, and ≤0.08% carbon. It provides tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%. SS 316 exhibits great corrosion resistance in acidic, salt-water, and chloride environments. It is non-magnetic in the annealed state and has good weldability and formability. SS 316 maintains mechanical integrity at high temperatures and possesses superior creep resistance, making it ideal for numerous aggressive service applications.
| Specifications | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 316 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 316 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 316 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 316 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 316 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | SS 316 |
| Ni | 10.0 – 14.0 |
| C | 0.08 |
| Mn | 2.0 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 0.75 max |
| Cr | 16.0 – 18.0 |
| Mo | 2.00 – 3.00 |
| N | 0.10 |
| Element | SS 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.

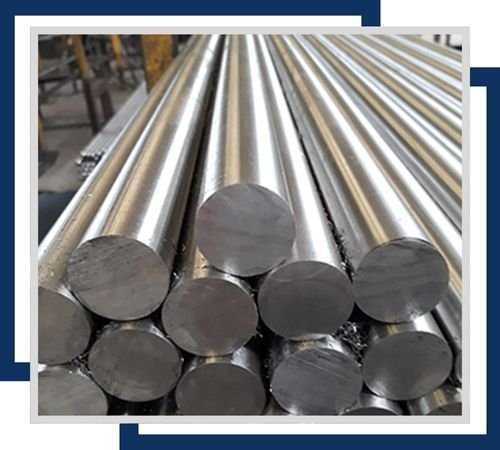

Corrosion-resistant Stainless Steel 316 Round Bars are available in diameters from 6 mm to 200 mm. They are used in marine, chemical, and high-temperature environments, offering excellent strength and durability.

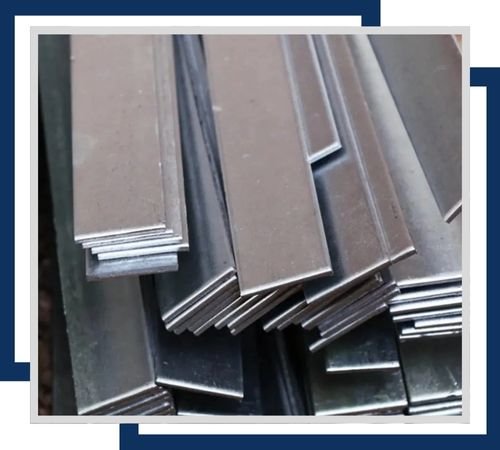

Stainless Steel 316 Flat Bars provide superior corrosion resistance and come in widths ranging from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are ideal for structural and architectural applications.

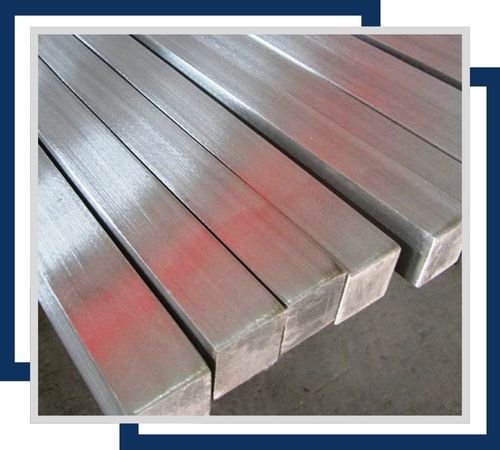

Featuring excellent corrosion resistance, Stainless Steel 316 Square Bars are available in sizes from 10 mm to 100 mm. They are commonly used in high-stress and marine environments for their strength and resistance to oxidation.

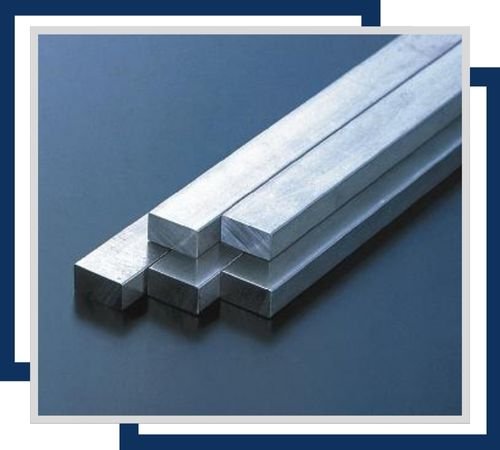

Stainless Steel 316 Rectangular Bars offer outstanding corrosion resistance and are available in dimensions from 20 mm x 10 mm to 150 mm x 50 mm. They are suitable for construction, industrial, and marine applications.

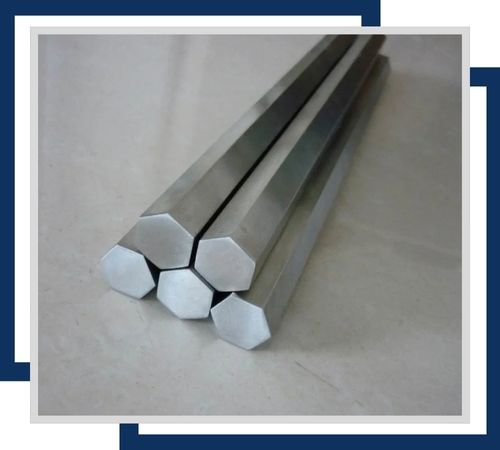

With high corrosion resistance, Stainless Steel 316 Hexagonal Bars come in sizes from 6 mm to 50 mm across flats. These bars are used in various engineering and manufacturing applications where durability and strength are crucial.

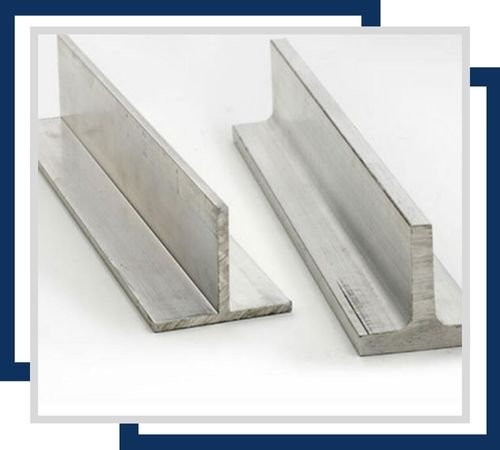

Stainless Steel 316 T-Bars offer excellent corrosion resistance and come in dimensions ranging from 20 mm x 20 mm x 6 mm to 100 mm x 100 mm x 10 mm. These bars are ideal for structural support in marine environments, chemical processing, and high-temperature applications, providing durability and strength where needed.
SS 316 bars find extensive use in marine atmosphere, chemical processing plants, food and beverage plants, and pharmaceutical factories. Typical uses include heat exchangers, pulp & paper machinery, textile processing equipment, and architectural fittings. The alloy is specifically designed for saltwater-exposure environments, brine, and severe chemicals. SS 316 finds other uses in hospital and cleanroom settings for surgical equipment and sanitary applications. It is a trusted solution for shafts, fasteners, pressure vessels, tanks, and structural members exposed to corrosive or high-moisture environments.
