Vinit Stainless is a reliable manufacturer and distributor of high-quality stainless steel products in Chennai, India. Known for precision engineering and high durability, the company provides an extensive portfolio of industrial solutions designed to withstand the challenging requirements of diverse industries. One of its star products is the SS 316H Forged Fitting used in high-temperature and high-pressure conditions. With its unwavering focus on quality, timely delivery, and customer satisfaction, Vinit Stainless has established itself as a well-reputed company in the domestic and global markets and is a preferred partner for stainless steel forged fittings and other superior piping components.
SS 316H Forged Fittings consist chiefly of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), with a higher carbon level (0.04–0.10%) for increased high-temperature strength. The alloy contains manganese, silicon, and traces of other elements. The fittings have fine mechanical properties like tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 35% minimum. Their high corrosion resistance, particularly against chlorides and corrosive environments, with high creep and stress rupture resistance, render them suitable for high-temperature applications under severe conditions.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

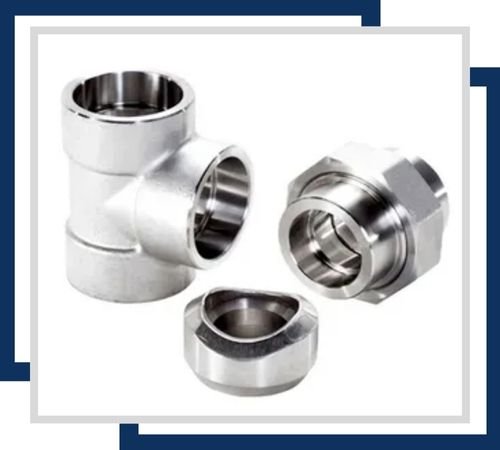

Corrosion-resistant and highly durable, Stainless Steel 316H Socket Weld Fittings are used for high-pressure applications. Sizes typically range from 1/4″ to 4″ in diameter. These fittings are designed for a strong, leak-proof connection in piping systems.

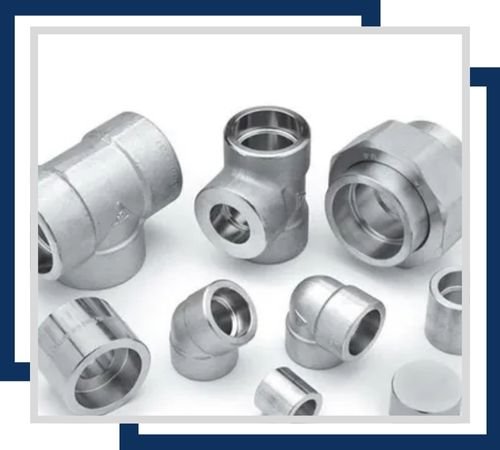

Offering excellent resistance to corrosion and high temperatures, Stainless Steel 316H Threaded Fittings are ideal for various industrial applications. They come in sizes from 1/8″ to 6″. These fittings provide easy installation and maintenance with threaded connections.

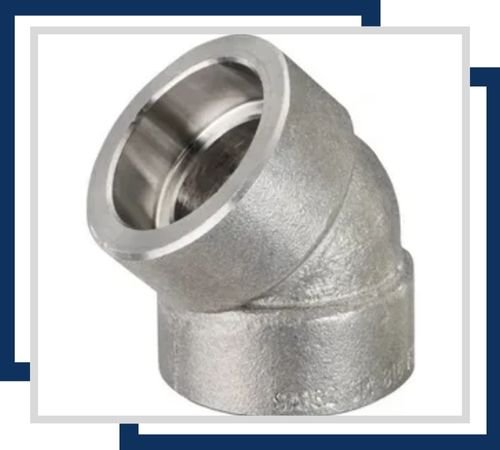

The Stainless Steel 316H Socket Weld 45 Degree Elbow combines corrosion resistance with high strength, allowing smooth changes in direction. Typically available in sizes from 1/4″ to 4″, it ensures reliable performance under high-pressure conditions.

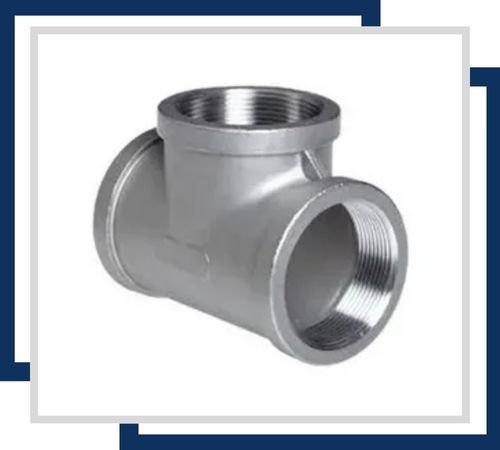

Featuring excellent resistance to corrosion and high durability, the Stainless Steel 316H Threaded Tee is used to connect and branch pipes. Sizes generally range from 1/4″ to 6″. It facilitates fluid flow in multiple directions efficiently.

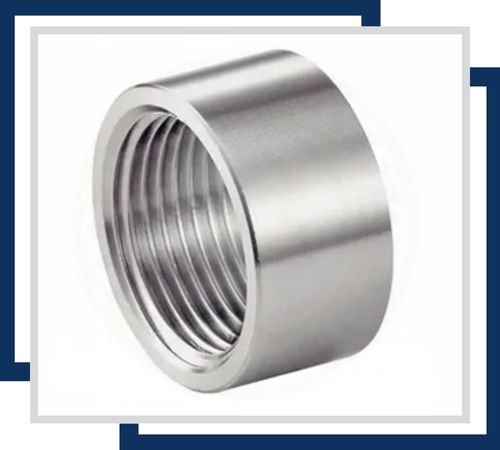

The Stainless Steel 316H Threaded Half Coupling provides strong corrosion resistance and is used to connect two sections of pipe. Available in sizes from 1/8″ to 4″, it offers easy installation and robust performance in various applications.

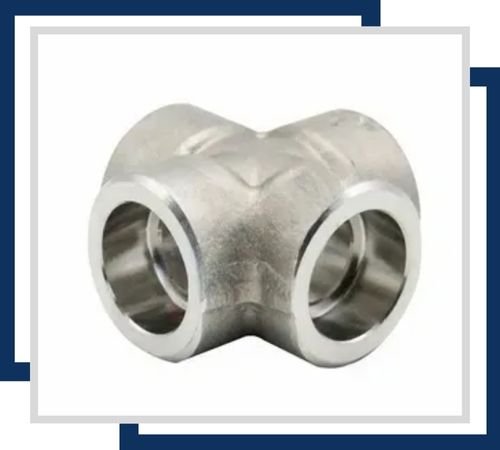

Known for its superior corrosion resistance, the Stainless Steel 316H Socket Weld Cross is used to connect multiple pipe lines. It comes in sizes from 1/4″ to 4″ and provides a reliable, high-strength connection suitable for complex piping systems.
SS 316H Forged Fittings have extensive uses in high–strength and corrosion-resistant applications at high temperatures. They are commonly found in power plants, heat exchangers, petrochemical facilities, oil and gas refineries, and chemical processing units. These fittings are ideal for joining and redirecting piping systems carrying corrosive fluids or gases. Their high carbon content ensures enhanced creep resistance, making them suitable for furnace parts and high-pressure steam lines. SS 316H forged fittings are utilized in marine uses, pharmaceutical, and food processing equipment where both mechanical strength and hygienic characteristics are of essence.
