Home > Stud Bolts > Stainless Steel 316H Stud Bolts
Based in Chennai, India, Vinit Stainless is a top producer and supplier of stainless steel goods. We provide a large selection of stainless steel components, including premium-grade Stainless Steel 316H Stud Bolts, as part of our dedication to quality and excellence. These stud bolts are widely used in a variety of industries, including power generation, chemical processing, shipbuilding, and oil and gas. They are renowned for their exceptional strength, durability, and resistance to corrosion. We at Vinit Stainless are a reliable partner for stainless steel fasteners in a variety of industries because we guarantee product dependability, timely delivery, and customer-focused solutions suited to hard industrial applications.
About 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a higher carbon content of 0.04–0.10% make up stainless steel 316H Stud Bolts. Their strength at high temperatures is increased by this composition, which also provides exceptional corrosion resistance, particularly in environments that are high in chloride. They perform well under heat stress, have a high tensile strength, and are resistant to pitting and crevice corrosion. These bolts are ideal for demanding applications involving high heat, pressure, and chemically aggressive environments because of their exceptional resistance to stress corrosion, cracking, and oxidation.
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31609 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316h Fasteners Standard: | ANSI – American National Standards Institute
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

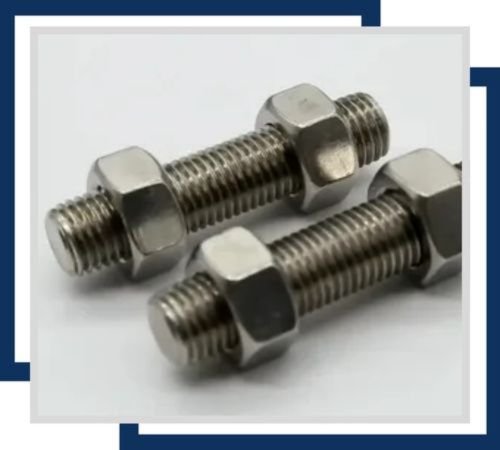

Stainless Steel 316H lag stud bolts offer high strength and superior corrosion resistance, ideal for high-temperature and harsh environments, ensuring durability and reliability in industrial, chemical, and marine applications.

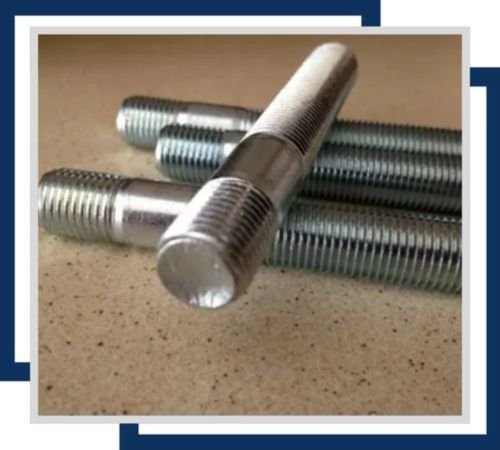

Stainless Steel 316H stud anchor bolts provide high strength and exceptional corrosion resistance, ideal for high-temperature and harsh environments, ensuring secure anchoring in industrial, chemical, and marine applications.

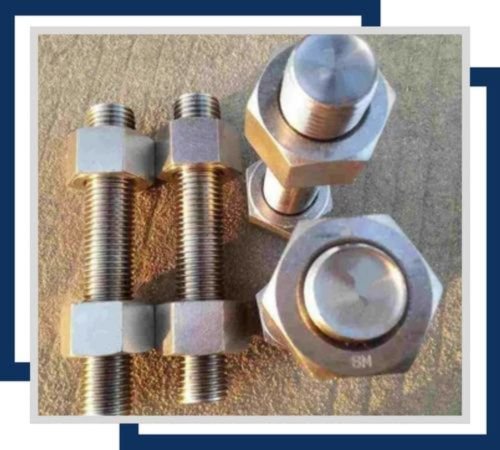

Stainless Steel 316H exhaust stud bolts offer high strength and corrosion resistance, ideal for high-temperature exhaust systems, ensuring durability and reliability in automotive, industrial, and marine applications.
We provide a wide range of certifications by supplying you with only the highest quality standards through our Stainless Steel 316H Stud Bolts. What’s included in our package is commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. We also give you different types of test certificates specifically for your Stainless Steel 316H Stud Bolts. We assure 100 percent client satisfaction with confidence in products by providing them with the proper certifications. It includes MTC as per EN 10204/3.1b, PMI Test Certificate, and 100 percent radiography test report and third-party inspection certificates.
Because of their improved mechanical and chemical stability, stainless steel 316H stud bolts are widely used in corrosive and high-temperature environments. These fasteners are essential for securing vital equipment in a variety of industries, including petrochemical, food processing, oil and gas, marine, chemical processing, and power generation. They are perfect for applications where durability, strength, and resistance to corrosion are crucial, such as heat exchangers, pressure vessels, tanks, reactors, and boiler components. They are a popular option for fastening applications in structures that require dependability, safety, and a long service life because of their capacity to function in extremely hot and corrosive environments.
