Vinit Stainless, a well-known producer and supplier of stainless steel 316L stud bolts with headquarters in Chennai, India, provides high-end fasteners for environments that are extremely corrosive and stressful. Vinit Stainless is well known for their dedication to quality, accuracy, and global manufacturing standards. They provide stud bolts that are strong, resistant to corrosion, and perfect for demanding industrial applications. The company serves important industries like oil and gas, petrochemicals, marine, and power generation with its state-of-the-art facilities and skilled technical staff. In both domestic and international markets, Vinit Stainless is renowned for its dependable delivery schedules, affordable prices, and customer-focused solutions.
The alloy used to make stainless steel 316L Stud Bolts has a low carbon content (maximum 0.03%) to improve weldability and reduce carbide precipitation. It contains 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. In environments with a lot of chloride, molybdenum increases resistance to pitting and crevice corrosion. These bolts have a 40% elongation, a minimum tensile strength of 485 MPa, and a yield strength of 170 MPa. These stud bolts are perfect for demanding load-bearing applications under challenging circumstances because of the 316L’s mechanical stability and resistance to corrosion.
| Grade | Stainless Steel 316L Fasteners. |
| Standard | ASTM A193 / A194, ASME SA193 / SA194, IS, BS, ANSI |
| Size | M02 to M33 |
| Length | 5 METERS |
| Grade | C | Ni | Mn | S | Cr | Si | P | Mo | N | |
| SS 316L | min. | – | 10.0 | – | – | 16.0 | – | – | 2.00 | – |
| max. | 0.08 | 14.0 | 2.00 | 0.03 | 18.0 | 0.75 | 0.045 | 3.00 | 0.10 | |
| Grade | Yield Strength 0.2% Proof (MPa) min | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316L | 170 | 485 | 40% | 95 | 217 |
Contact us to get a quick quote for your requirement.

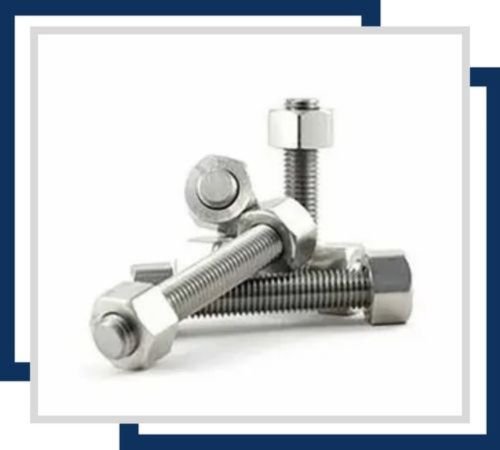

These have threads on both ends, designed for secure connections in flanges or equipment. Ideal for high-corrosion environments due to 316L’s excellent resistance.

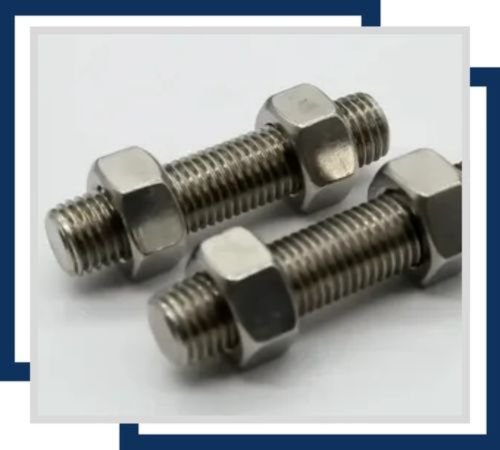

Fully threaded rods offer versatile fastening solutions in structural and mechanical applications. Known for superior corrosion resistance in marine and chemical environments.

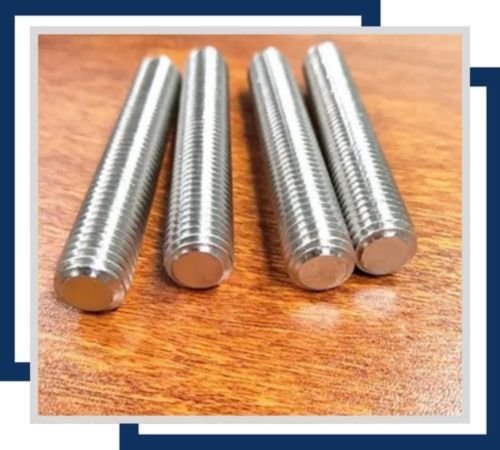

These are high-strength fasteners with threads throughout or at both ends. Perfect for applications requiring durability and resistance to corrosion.

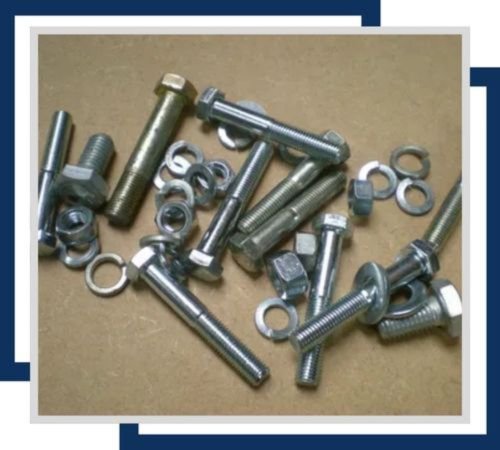

Conforming to DIN 1.4301 standards, these bolts provide precise dimensions and quality assurance. Suitable for a variety of industries requiring corrosion-resistant fasteners.

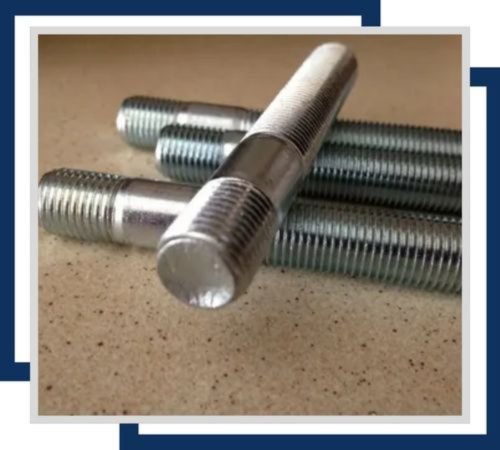

Manufactured under UNS S31600 designation, these bolts ensure high strength and excellent corrosion resistance. Ideal for chemical, petrochemical, and marine applications.

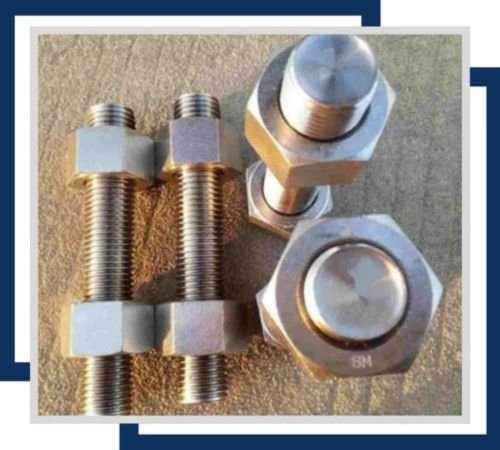

These bolts feature a flush head for smooth, low-profile applications. Designed for environments demanding both aesthetic appeal and high performance.
Industries that demand strong corrosion resistance and structural integrity frequently use stainless steel 316L stud bolts. Offshore oil rigs, chemical processing facilities, desalination units, marine hardware, and pressure vessels are examples of typical applications. They are perfect for marine and coastal infrastructure because of their exceptional performance in saltwater and chloride environments. These bolts are also utilised in the pulp and paper, food processing, and pharmaceutical industries, where resistance to acidic substances and cleanliness are essential. In a wide range of industrial applications, 316L stud bolts offer reliable fastening solutions in high-temperature, high-pressure, and corrosive operating environments due to their exceptional weldability and durability.
