Vinit Stainless provides SS 316Ti fasteners—titanium-stabilized austenitic stainless steel hardware perfectly suited for corrosive and high-temperature applications. Produced in Chennai, the fasteners consist of bolts, nuts, washers, and studs customized for industrial applications in food processing, pharmaceutical, and marine engineering industries. The titanium stabilization of SS 316Ti enhances resistance to sensitization as well as provides improved performance in welded structures that undergo high-temperature exposure, and thus it is a long-term solution under aggressive environments.
SS 316Ti has 16–18% chromium, 10–14% nickel, 2–3% molybdenum, ≤0.08% carbon, and titanium (~0.5%). It provides tensile strength of ~550–620 MPa, yield strength ~240 MPa, and elongation ~30–35%. Titanium addition makes chromium carbide formation at the grain boundary impossible, which improves weldability and intergranular corrosion resistance under heat stress.
| Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

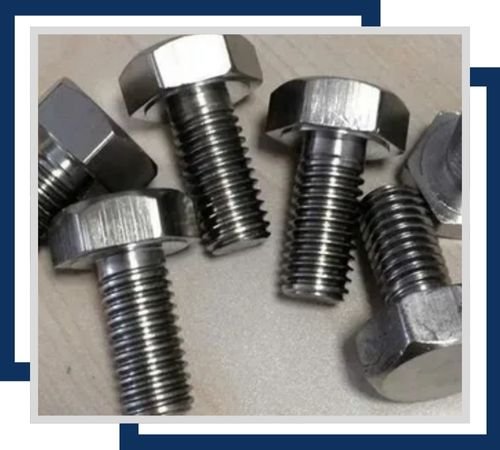

Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

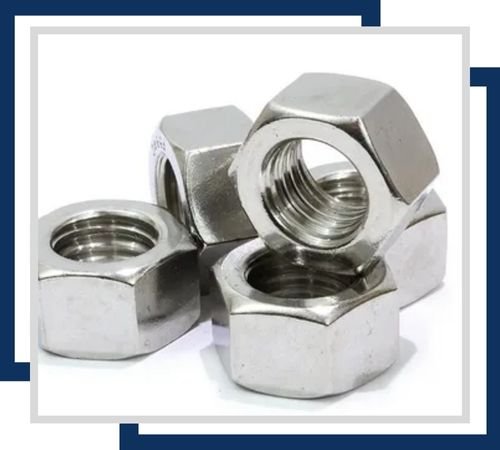

SS 316Ti Nuts are designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

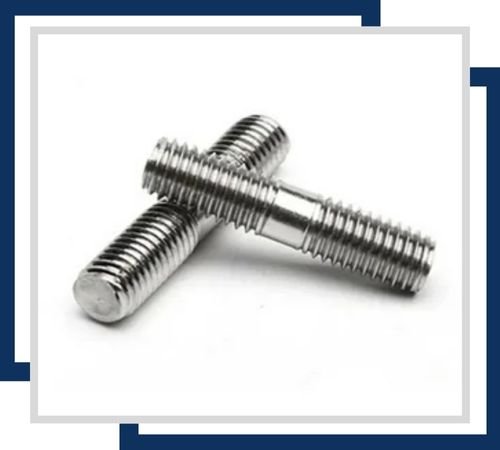

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.

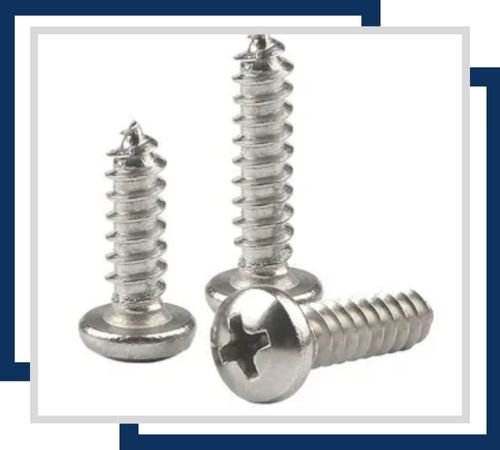

Known for their corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.

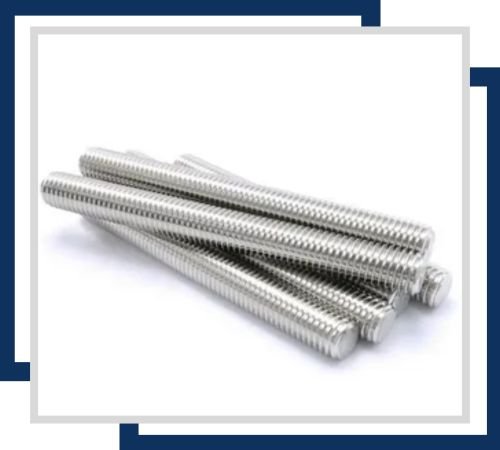

Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.

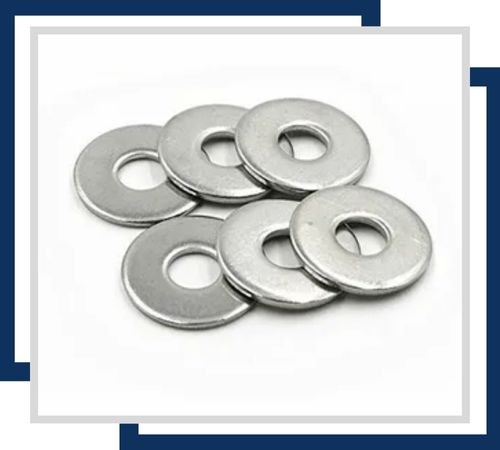

Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
SS 316Ti fasteners are employed in heat exchangers, pressure vessels, flue gas scrubbers, and sea structures. They are titanium-stabilized, making them ideal for welded joints in chemical and food processing applications. They also have good performance in high-temperature furnace components and architectural buildings exposed to sea atmosphere. Vinit Stainless provides these fasteners to refineries, desalination units, and pharmaceutical plants in India
