Vinit Stainless is a prominent manufacturer and distributor of SS 316Ti tubing headquartered in Chennai, India. An expert in quality stainless steel solutions, Vinit Stainless provides superior tubing solutions for heavy-duty industrial applications. SS 316Ti is a titanium-stabilized stainless steel, which is formulated to enhance corrosion resistance after welding. It has the same mechanical and corrosion-resistant properties as SS 316 but provides higher high-temperature strength. At Vinit Stainless, we emphasize precision engineering, on-time delivery, and customization to suit the varying needs of industries like chemical processing, heat exchangers, and food manufacturing. Our SS 316Ti tubing is established on reliability and endurance.
SS 316Ti tubing contains 16–18% Chromium, 10–14% Nickel, 2–3% Molybdenum, and 0.5% Titanium. The addition of titanium stabilizes the structure against the precipitation of chromium carbide during welding. It has superior mechanical strength with about 550 MPa tensile strength and around 230 MPa yield strength. The tube also resists pitting and crevice corrosion with high strength, especially in the presence of chloride. SS 316Ti has good performance in high temperatures and corrosive environments and is therefore a superior option for heat-high usage where material stability over a long period is needed.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
Contact us to get a quick quote for your requirement.

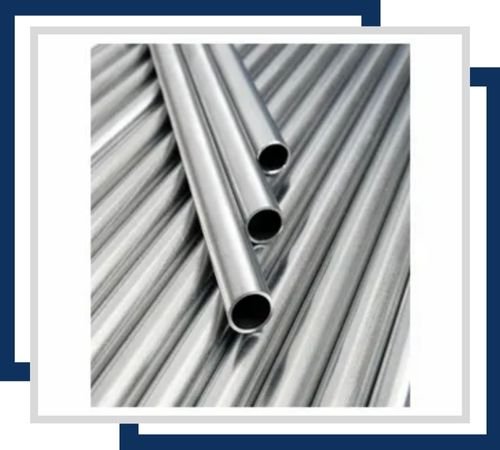

Stainless Steel 316Ti Seamless Tubing is known for its superior corrosion resistance, especially in high-temperature environments. Typically available in sizes ranging from 1/8” to 12” OD, it offers excellent mechanical properties and smooth surface finishes. Ideal for applications requiring high precision and reliability.

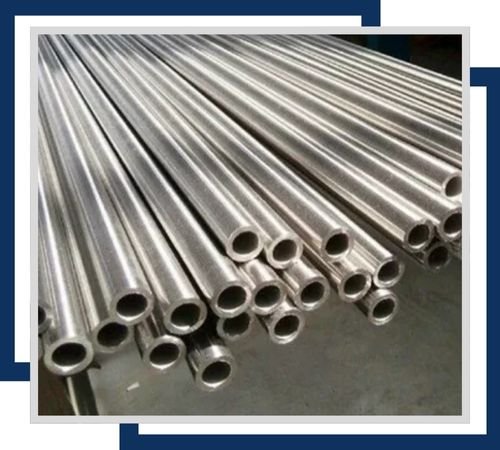

Stainless Steel 316Ti Welded Tubing combines excellent corrosion resistance with durability. Available in sizes from 1/8” to 24” OD, this tubing is cost-effective and versatile for various applications. It is particularly suitable for industries where high resistance to oxidizing acids is essential.

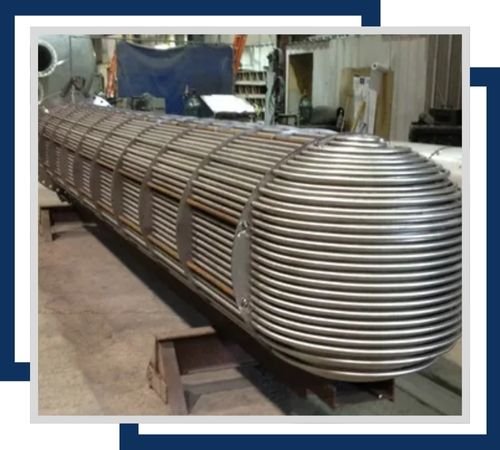

Stainless Steel 316Ti Heat Exchanger Tubes are designed for optimal thermal conductivity and corrosion resistance. These tubes come in sizes ranging from 1/4” to 2” OD, making them perfect for heat exchangers in chemical processing and power generation industries. They ensure efficient heat transfer and long service life.

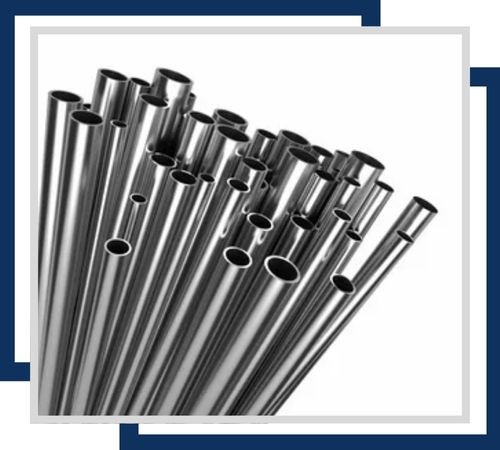

Stainless Steel 316Ti Instrumentation Tubing offers superior corrosion resistance and precision. Available in sizes from 1/16” to 1” OD, it is ideal for high-pressure and high-temperature applications in instrumentation and control systems. Ensures reliable performance and accuracy in critical applications.

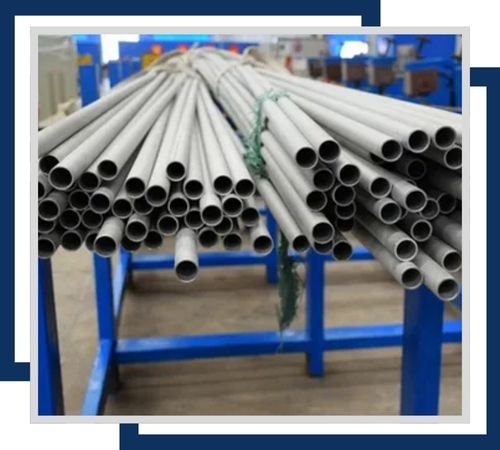

Stainless Steel 316Ti Boiler Tubes are engineered for high temperature and pressure conditions. Sizes range from 1/2” to 5” OD, providing excellent resistance to oxidation and corrosion. These tubes are essential for maintaining efficiency and longevity in boiler systems

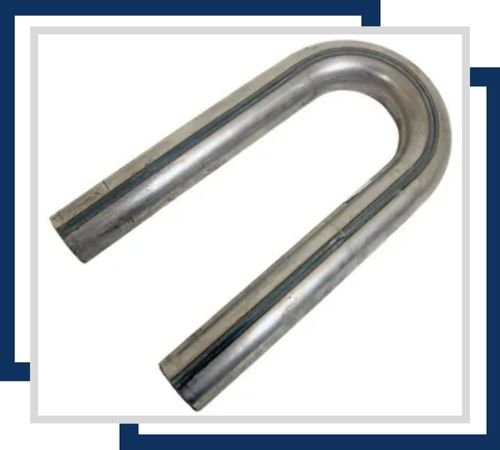

Stainless Steel 316Ti U-Tubes are designed for heat exchangers and boiler systems where space-saving is crucial. Available in sizes from 1/4” to 1” OD, they offer exceptional corrosion resistance and flexibility in design. Ideal for applications requiring compact and efficient thermal transfer solutions
Stainless Steel 316Ti Condenser Tubes provide excellent corrosion resistance and thermal conductivity. Sizes range from 1/4” to 2” OD, making them suitable for condensers in power plants and HVAC systems. Ensures efficient condensation and long-term performance

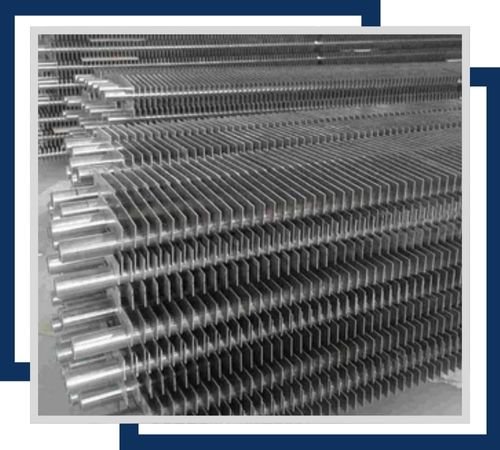

Stainless Steel 316Ti Fin Tubes enhance heat transfer efficiency while maintaining high corrosion resistance. Available in sizes from 1/4” to 1-1/2” OD, these tubes are used in heat exchangers, condensers, and evaporators. The finned design maximizes surface area for optimal thermal performance.
SS 316Ti tubing is widely applied in industries that demand high corrosion resistance and high-temperature applications. It is used in heat exchangers, chemical processing equipment, and flue gas scrubbers where they require high corrosion resistance combined with mechanical stability at higher temperatures. It is also used in the food and beverages industry because of its non-toxic, corrosion-resistant characteristics. The stabilization of titanium makes it perfectly suited for weld structures, particularly in environments that are exposed to chlorides or acidic chemicals. SS 316Ti tube guarantees a long service life in abrasive industrial conditions, saving maintenance and overall system reliability.
