High-grade stainless steel 317 tubing made for use in extremely corrosive environments is available from Vinit Stainless, a well-known manufacturer and supplier with headquarters in Chennai, India. Austenitic stainless steel SS 317, which contains molybdenum, offers improved resistance to chemical attack, especially from acids and chlorides. Vinit Stainless follows international standards like ASTM A213 and A269 while producing 317 tubing with precision engineering. These tubes come in a variety of wall thicknesses and diameters in both seamless and welded forms. Our tubing guarantees long-lasting performance and high resistance to pitting and crevice corrosion, making it perfect for industries such as chemical processing, pharmaceuticals, and marine applications.
In order to prevent sensitisation and intergranular corrosion, stainless steel 317 tubing has a low carbon content, 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. Compared to ordinary stainless steels, this composition provides better resistance to chemical attack. It has outstanding elongation and toughness, with a tensile strength of roughly 515–675 MPa and a yield strength of roughly 205 MPa. When exposed to high temperatures and pressures, SS 317 tubing functions effectively, preserving its structural integrity and resistance to corrosion. It is appropriate for demanding industrial and marine applications due to its good formability and weldability.
| ASTM A213 / ASME SA 213 | Standard Specification for SS TP 317L Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | ASME SA213 TP317L Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish DIN 1.4438 Stainless Steel 317L Tubing or Custom Finish as per customer’s specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| SS 317L | Maximum |
|---|---|
| Ni | 11 – 15 |
| C | 0.035 Maximum |
| Mn | 2 Maximum |
| P | 0.040 Maximum |
| S | 0.03 Maximum |
| Si | 1 Maximum |
| Cr | 18 – 20 |
| Mo | 3 – 4 |
| N | – |
| Element | AISI 317L |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Range | 1454 °C (2650 °F) |
| Tensile Stress | Psi – 75000 , MPa – 515 |
| Yield Stress (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Hardness (Brinell) |
Contact us to get a quick quote for your requirement.

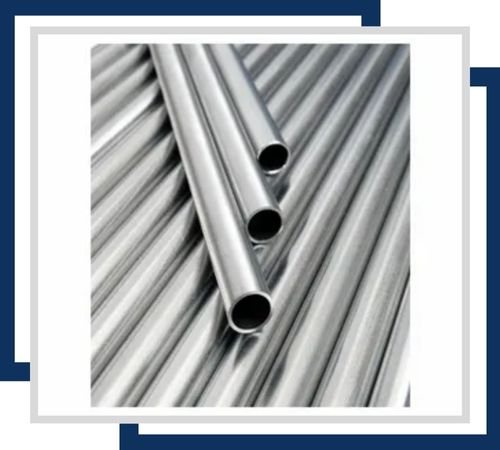

This tubing is produced without welds, offering superior strength and uniformity. It typically ranges from 1/8″ to 12″ in diameter. It is highly resistant to corrosion, particularly in chloride environments.

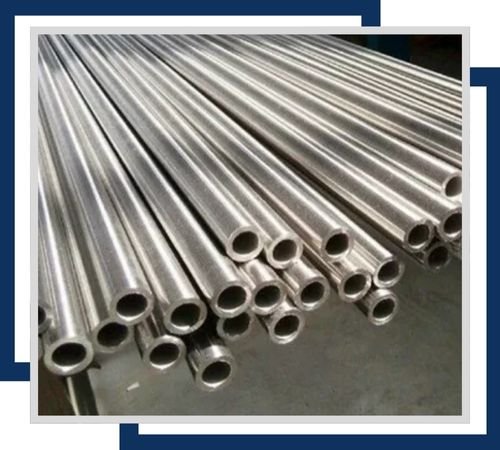

Manufactured by welding a strip of stainless steel, this tubing is suitable for applications requiring moderate strength and corrosion resistance. Sizes generally range from 1/4″ to 6″ in diameter. It provides good resistance to corrosive environments, especially those with chlorides.

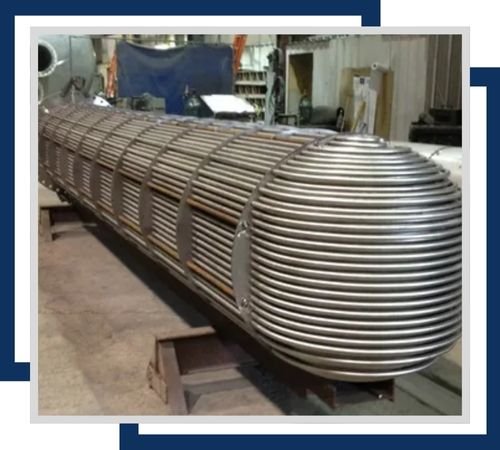

Designed for use in heat exchangers, this tubing is available in diameters from 1/2″ to 2″ and offers excellent heat transfer properties. It is highly resistant to corrosion, making it ideal for aggressive chemical environments.

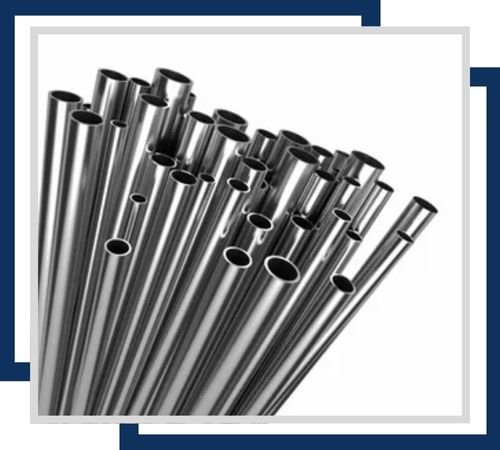

This tubing is used for precise measurement and control applications, with sizes typically ranging from 1/16″ to 2″ in diameter. It offers excellent resistance to corrosion and maintains integrity under high pressure.

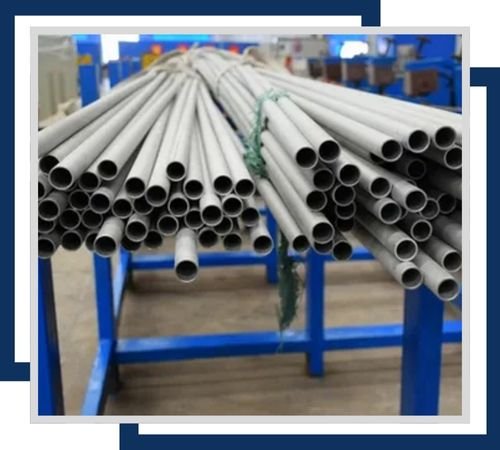

Engineered for high-temperature applications, these tubes usually come in diameters from 1/2″ to 4″. They provide robust resistance to oxidation and scaling, making them suitable for boiler systems.

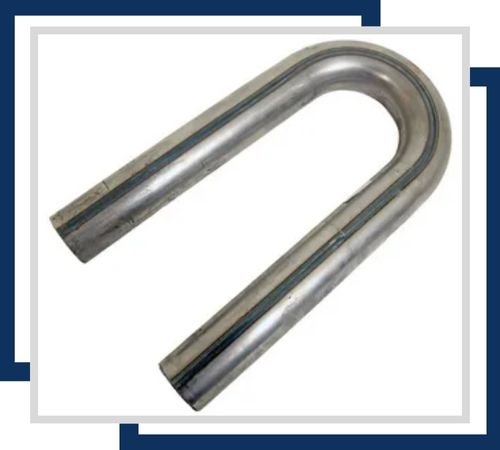

U-Tubes are used in various heat exchanger and condenser applications, with sizes commonly from 1″ to 3″ in diameter. They are highly resistant to corrosion and can withstand the thermal stresses of heat exchange processes.

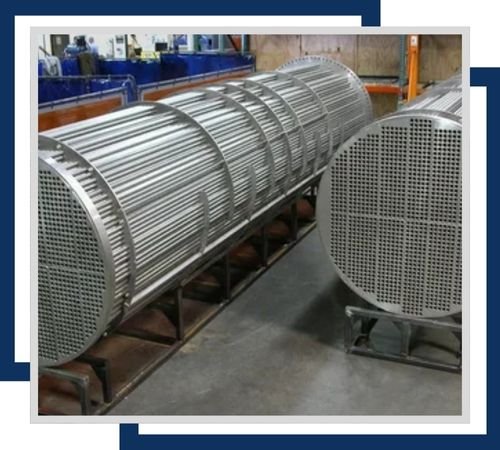

These tubes are specifically designed for condenser systems, with dimensions typically ranging from 1/2″ to 2″ in diameter. They offer excellent resistance to corrosion from steam and other condensate environments.

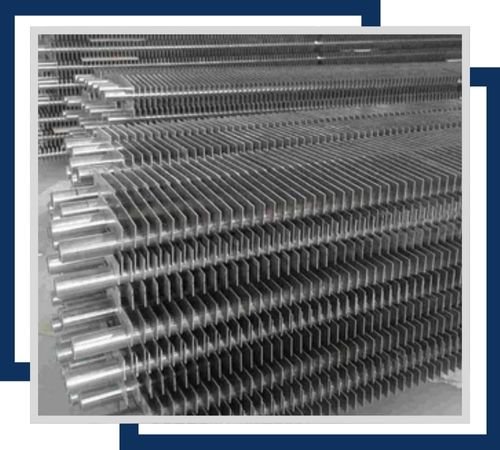

Used for heat transfer applications, these tubes are available in various diameters, often from 1/2″ to 2″. They feature enhanced surface area for improved heat exchange efficiency and are highly resistant to corrosion.
317 Stainless Steel In extremely corrosive environments, particularly those where exposure to strong acids, chlorides, and high temperatures is frequent, tubing is widely used. This tubing is used in heat exchangers, evaporators, condensers, and fluid transport systems in the chemical processing, pulp and paper, textile dyeing, marine, and petrochemical industries. It works especially well in situations involving sulphuric acid and acidic chloride. A long service life is guaranteed by its resistance to pitting, crevice corrosion, and stress corrosion cracking. Additionally, SS 317 tubing is utilised in food and pharmaceutical processing systems where durability, corrosion resistance, and hygienic practices are critical in demanding operating environments.
