Based in Chennai, India, Vinit Stainless is a reputable producer and supplier of premium stainless steel goods. The company, which is well-known for emphasizing quality, dependability, and innovation, provides cutting-edge stainless steel solutions for a range of industrial applications. Stainless Steel 317L Bars, one of its flagship products, are notable for their exceptional mechanical strength, durability, and resistance to corrosion. These bars are particularly well-suited for high-demand industries like chemical processing and maritime settings. Vinit Stainless is still a well-known brand in the stainless steel sector thanks to its strong dedication to client satisfaction, prompt delivery, and engineering accuracy.
A low-carbon version of grade 317, stainless steel 317L bars provide better weldability and resistance to intergranular corrosion. They are composed of 16–18% chromium, 11–15% nickel, and 2–3% molybdenum, which offer superior defense against acidic environments and corrosion caused by chloride. They are perfect for high-temperature applications because of their lower carbon content, which inhibits carbide precipitation during welding. With a tensile strength of about 515 MPa, yield strength of 205 MPa, and elongation of about 35–40%, the bars have strong mechanical qualities that guarantee long-term durability under demanding industrial conditions.
| Specification | ASTM A276, A479 / ASME SA276, SA479 |
|---|---|
| Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round Bars | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars | 8mm – 47mm (11/16″ to 1-3/4″) |
| Length | 1 to 6 meters, Custom Cut Length |
| Form | Round, Square, Hexagonal, Rectangular |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317L | 0.03 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | 0.1 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317L | 595 MPa | 260 MPa | 55% | 85 | 200 | – |
Contact us to get a quick quote for your requirement.
We ensures exceptional quality through rigorous testing and certification of stainless steel 317L frames. Each bar undergoes ultrasonic, hardness and tensile strength testing to ensure it meets industry standards. Certified to ISO 9001, EN10204 3.1/3.2, and NABL-accredited laboratory reports, our products guarantee durability, corrosion resistance and reliability for critical applications

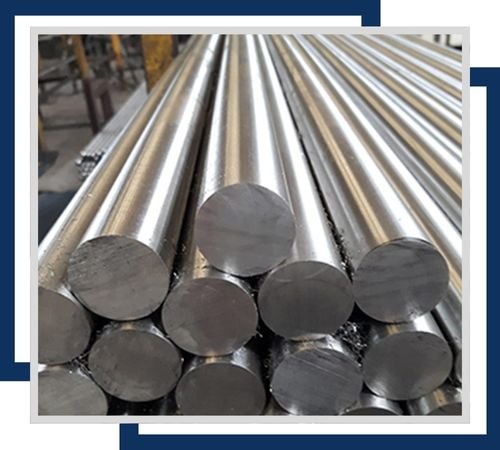

Corrosion-resistant Stainless Steel 317L Round Bars come in various diameters, typically from 6mm to 300mm. Ideal for applications requiring high strength and resistance to chloride environments, these bars are used in chemical and marine industries.

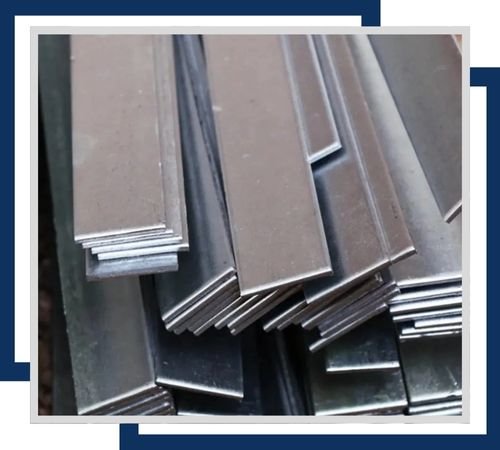

Stainless Steel 317L Flat Bars are available in thicknesses from 3mm to 50mm and widths up to 300mm. These bars offer exceptional corrosion resistance, making them suitable for structural and industrial applications, including chemical processing.

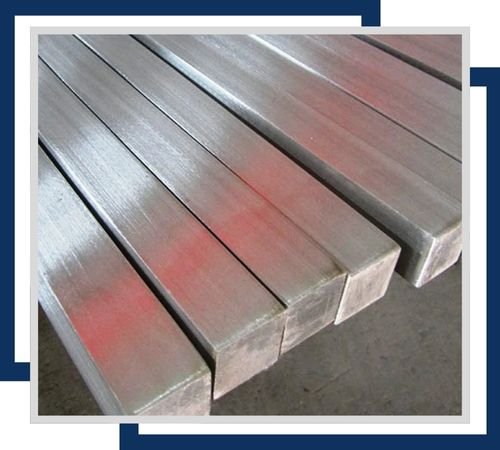

Stainless Steel 317L Square Bars are produced in sizes ranging from 10mm to 100mm. Known for their durability and resistance to aggressive environments, they are ideal for use in manufacturing and construction where strength and corrosion resistance are essential.

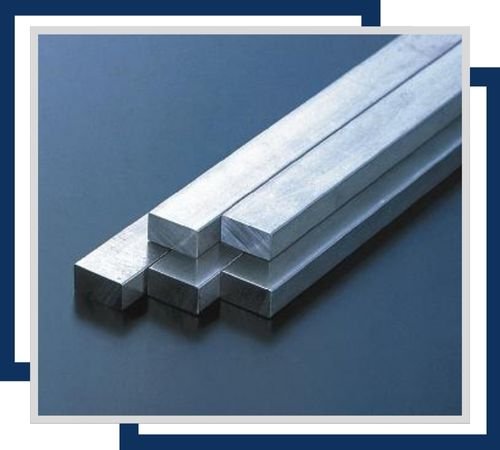

Stainless Steel 317L Rectangular Bars come in custom sizes with typical thicknesses of 5mm to 50mm and widths from 20mm to 200mm. They are used in applications where strength and resistance to harsh conditions are critical, such as in marine and chemical industries.

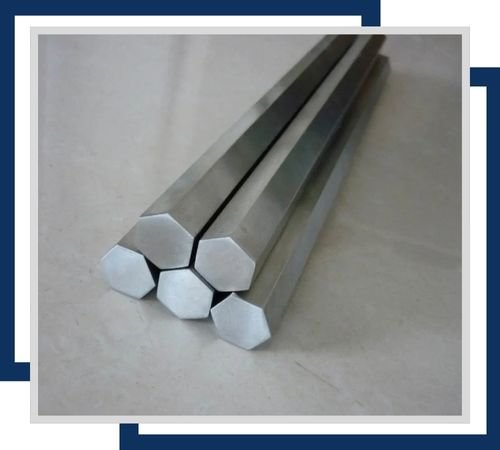

Stainless Steel 317L Hexagonal Bars are available in dimensions from 10mm to 100mm across flats. Their unique shape and corrosion resistance make them suitable for applications in high-stress environments, including aerospace and marine sectors.

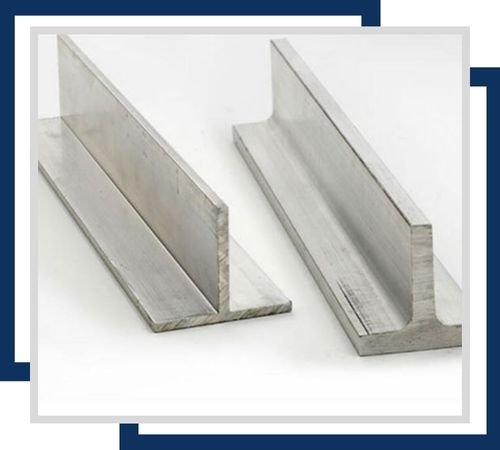

Stainless Steel 317L T-Bars are manufactured with standard dimensions, often ranging from 10mm x 10mm to 100mm x 100mm. These bars are used in structural and industrial applications where high resistance to corrosion and strength are required, such as in chemical processing plants.
In industries where resistance to high temperatures and corrosive chemicals is crucial, stainless steel 317L bars are widely used. Pulp and paper mills, marine structures, pollution control systems, and chemical processing equipment are examples of common applications. They are also perfect for nuclear power systems, refinery components, and the processing of food and pharmaceuticals because of their strength and resistance to harsh acids and chlorides. Their mechanical toughness and corrosion resistance ensure minimal maintenance and optimal performance in harsh operating environments, while their low carbon content guarantees reliable welded assemblies and extended exposure to heat.
