With its headquarters located in Chennai, India, Vinit Stainless is a leading manufacturer and supplier of premium stainless steel products. We specialize in providing Stainless Steel 321/321H Sheets and Plates to industries in India and worldwide, with a strong emphasis on accuracy and quality. Even in the most severe circumstances, our products are renowned for their exceptional resilience to corrosion, dependability, and durability. Vinit Stainless is a trusted partner for vital industrial applications in industries like power generation, chemical processing, and aerospace because of its dedication to providing high-quality materials on schedule.
The titanium-stabilized austenitic stainless steel 321/321H offers exceptional resistance to intergranular corrosion. In a ratio of at least five times the carbon content, the composition contains 17–19% chromium, 9–12% nickel, and titanium. For increased high-temperature strength, Grade 321H has a higher carbon content. Up to 900°C (1650°F), this alloy retains its mechanical qualities and provides exceptional resistance to oxidation. It is perfect for heat exchangers, pressure vessels, and other thermal and chemical equipment because it also has good machinability, formability, and weldability.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

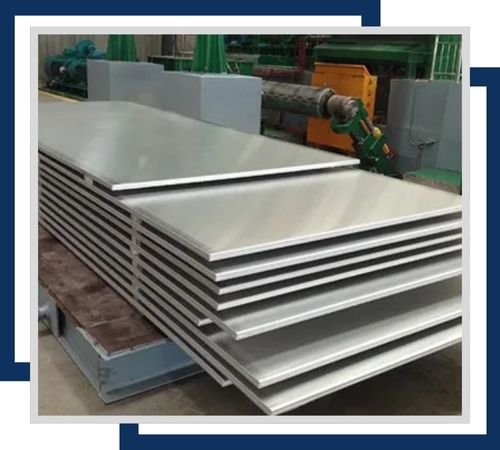

These sheets contain high corrosion resistance and are available up to 1.2-12mm thickness and width up to 2000mm. They are ideal for high temperature application.

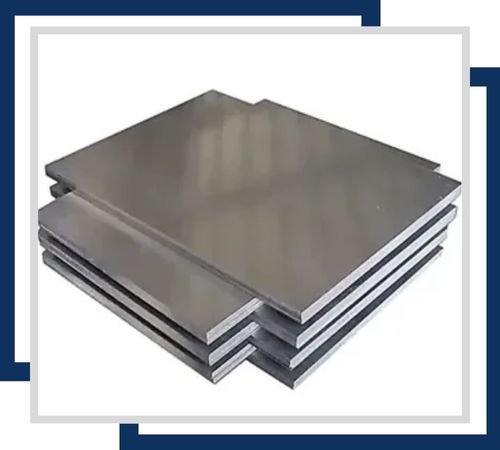

Cold rolled plates of SS 321H possess higher corrosion resistance and are available up to 0.3-6mm in thickness and up to 1500mm in width. They are perfect for applications requiring a smooth finish and high strength.

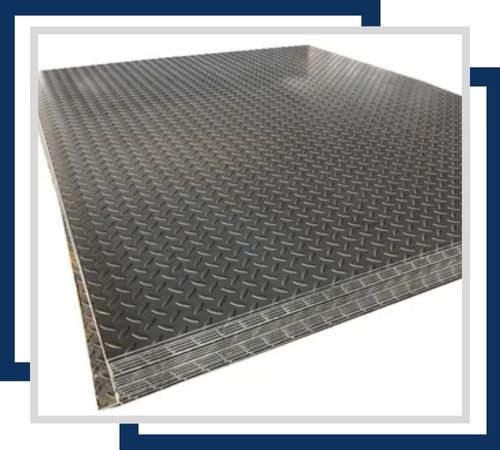

These plates provide outstanding resistance to corrosion, and come in thickness from 3mm up to 12mm and have sizes of up to 1500mm x 3000mm. Raised pattern surface increases the gripping value, thus commonly used for floor and structural work.

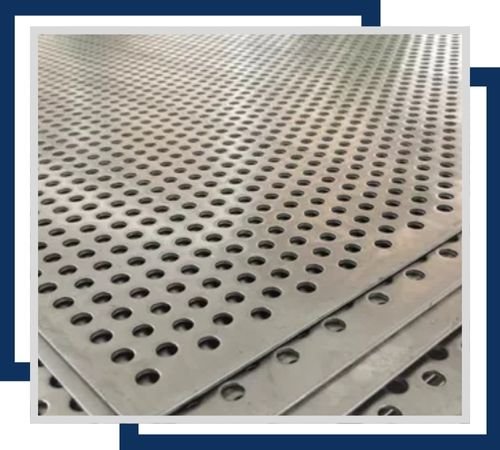

Perforated sheets are extremely resistant to corrosion and can be perforated from 0.5mm up to 20mm in diameter. The sheet thickness is also from 0.3mm up to 3mm. It is used in filtration and ventilation systems.

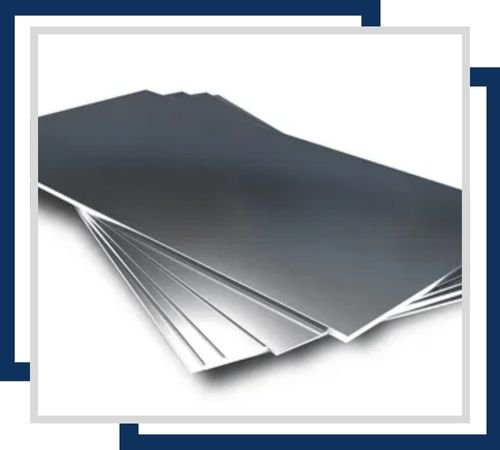

Shim sheets are resistant to corrosion with a high accuracy level. Thickness is available between 0.05mm up to 3mm, and cut-to-size service is also possible to get precise dimensions for several alignment and spacing applications.

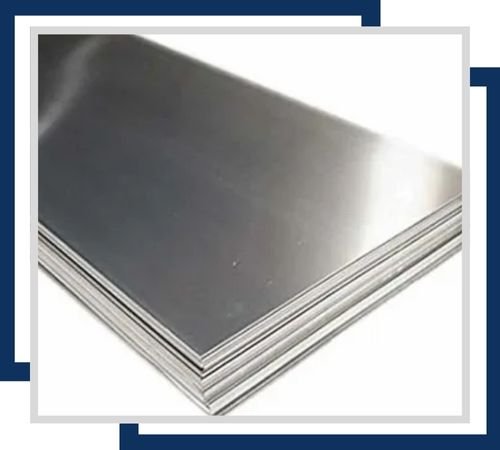

Polished plates have excellent resistance to corrosion, and a reflective finish. These plates are manufactured in thickness range from 3mm to 50mm. The size for these plates up to 2000mm x 6000mm is ideal for aesthetic applications as well as a high-quality surface finish.
Vinit Stainless offers an excellent customer experience along with detailed documentation of its high-quality Stainless Steel 321/321H Sheets and Plates. We deliver key documents such as the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, making it easier to validate the authenticity and superior quality of our products for the value-added customers. Our Stainless Steel 321/321H Sheets and Plates, meanwhile, possess diversified test certificate features, ranging from MTC accordance with EN10204 /3.1B to a PMI test Certificate, radiographic test reports having 100 % and even up to third Party Inspection. Here, too the certificates explain their customer-driven activities and unwearied product quest for superior product quality.
Applications requiring high strength and resistance to oxidation at elevated temperatures make extensive use of stainless steel 321/321H sheets and plates. They are appropriate for heat exchangers, pressure vessels, and chemical processing equipment due to their resistance to intergranular corrosion. These sheets are frequently used for parts such as boilers, manifolds, exhaust systems, furnace parts, and aircraft engine parts in the petrochemical, power generation, and aerospace industries. SS 321/321H products are perfect for environments with aggressive media, cyclic heating, and high mechanical stress because of their exceptional high-temperature performance and structural integrity.
