Vinit Stainless is a well-known producer and supplier of stainless steel 348 sheets and plates with headquarters in Chennai, India. The company is renowned for providing top-notch stainless steel solutions for demanding industrial applications. Our SS 348 sheets and plates are made with premium raw materials and cutting-edge manufacturing processes, and they are designed to function well in corrosive and high-temperature environments. These products have outstanding mechanical strength, intergranular corrosion resistance, and weldability. Vinit Stainless is committed to upholding global quality standards, providing customised sizes and finishes, and guaranteeing on-time delivery to customers in a variety of industries, such as the fabrication, chemical processing, aerospace, and power generation sectors.
The stabilised austenitic stainless steels known as Stainless Steel 348 Sheets and Plates are mainly made up of 17–19% chromium and 9–13% nickel, with tantalum and niobium (columbium) added to improve resistance to intergranular corrosion. These components stop carbide precipitation when exposed to high temperatures and during welding. SS 348 has good elongation qualities, a yield strength of about 205 MPa, and a tensile strength of roughly 515–750 MPa. It can be used continuously up to 800°C because it retains its mechanical stability and resistance to oxidation at high temperatures. Additionally, the material is very formable, weldable, and appropriate for applications requiring a lot of heat and pressure.
| Steel grade type | Stainless Steel: |
|---|---|
| Standard | 348 |
| Production specifications | Steel plate,Sheet, Coil,Flat bar,Round bar, Strip steel,wire,All kinds of forgings. |
| Mchining | Turning Milling Grinding Deep hole drilling: length max 9.8 meters. |
Range of work | Round bar steel: 1mm to 2000mm Square-shape steel: 10mm to 1000mm steel Plate and sheet:0.08mm to 800mm Width: 10mm to 1500mm Lenth: We can supply any lenth based on the customer’s requirement. Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes Tubings: OD: φ4-410 mm, with wall thickness ranging from 1-35 mm. |
| Heat treatment | Normalizing,Annealing,Tempering,Quenching,Hardening and tempering,Seasoning,Surface hardening,Carburizing |
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Density (×1000 kg/m3) | 7.7-8.03 | 25 | |
| Poisson’s Ratio | 0.27-0.30 | 25 | |
| Elastic Modulus (GPa) | 190-210 | 25 | |
| Tensile Strength (Mpa) | 1158 | 25 | oil quenched, fine grained, tempered at 425°C |
| Yield Strength (Mpa) | 1034 | ||
| Elongation (%) | 15 | ||
| Reduction in Area (%) | 53 | ||
| Hardness (HB) | 335 | 25 | oil quenched, fine grained, tempered at 425°C |
Contact us to get a quick quote for your requirement.

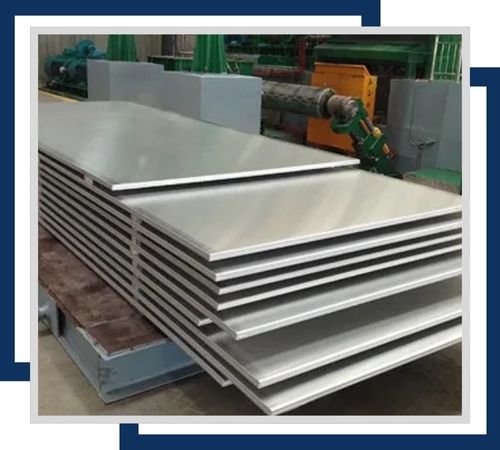

Stainless Steel 348 hot rolled sheet offers an exceptional corrosion-resistant barrier and may find applications for highly elevated temperature work. Hot-rolled stainless Steel 348 Sheet is readily available in gauges from 3 mm up to 12mm and in width up to 2000mm.

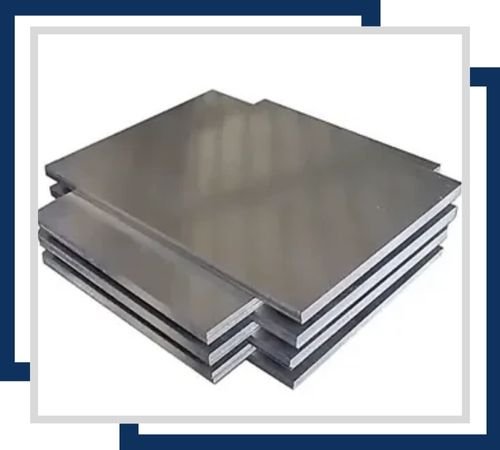

Cold rolled plates of Stainless Steel 348 offer high corrosion resistance with a bright surface finish. It is available in the range of 0.5 mm to 6 mm and up to 1250 mm in width, ideal for any detailed engineering application and aesthetic usage.

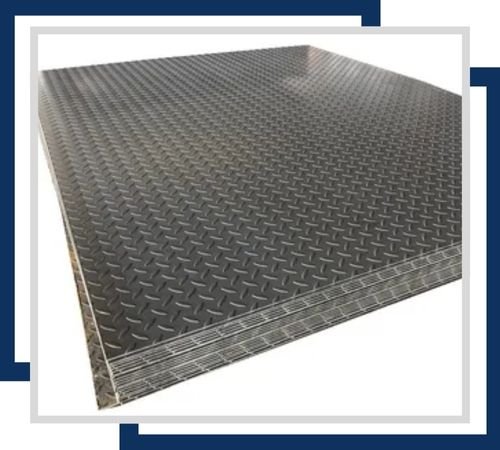

Stainless Steel 348 chequer plates are supplied with excellent resistance to corrosion and an anti-slip finish. With a thickness from 2mm to 10mm and common sizes up to 1500 mm x 1500 mm, they are highly used in floors and walkways.

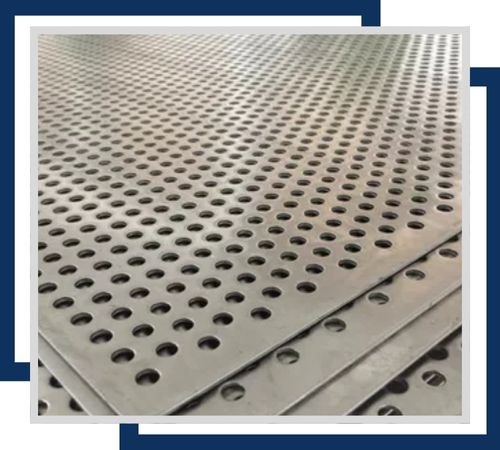

Perforated sheets in Stainless Steel 348 are corrosion-resistant and have a hole pattern for functional and aesthetic purposes. These are usually available in thicknesses ranging from 0.8 mm to 5 mm and in custom hole sizes. They are used for filtration and decorative purposes.

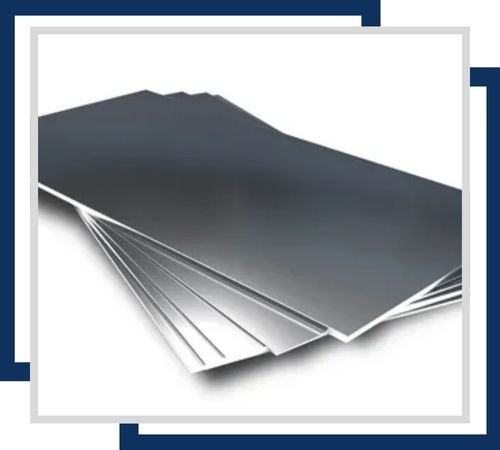

Corrosion resistance is very high on shim sheets made of stainless steel 348 and used to fill accurately the gaps and for leveling purposes. The thickness level ranges from 0.1mm to 2mm, with standard sheet sizes up to 1000mm x 2000mm.

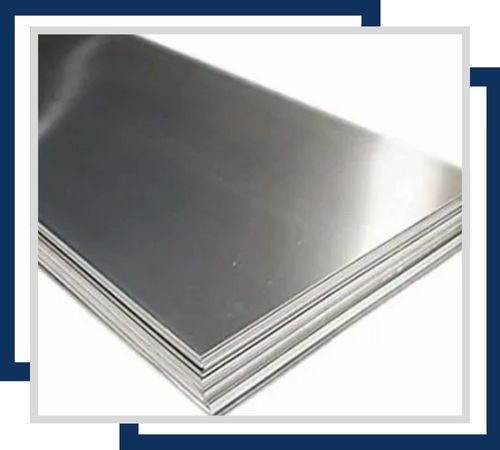

Polished plates of Stainless Steel 348 provide superb corrosion resistance with a high-shine finish. They are generally available in thickness from 1 to 12 mm and can be sized to order, thus making them perfect for decorative as well as high-end architectural applications.
Applications requiring resistance to high temperatures and intergranular corrosion make extensive use of stainless steel 348 sheets and plates. Common applications include chemical processing, where they are utilised in heat exchangers, reactor linings, and pressure vessels, and aerospace, where they are utilised in exhaust manifolds and turbine components. They are also utilised in expansion joints, welded structures, boilers, and furnace components. SS 348 plates and sheets are perfect for settings that involve frequent heating and cooling because of their superior weldability and thermal stability. They are appropriate for both industrial and high-precision applications due to their dependable performance under exposure and stress.
