With its main office in Chennai, India, Vinit Stainless is a reputable producer and supplier of high-performance stainless steel goods. We serve a wide range of industrial sectors, including engineering, design, automotive, and construction, and have years of experience in the stainless steel industry. Stainless Steel 416 Tubing is one of our best products; it is renowned for its exceptional machinability, moderate resistance to corrosion, and exceptional strength. For precision-based applications that need dependability and durability in harsh conditions, this tubing is perfect. Our goal at Vinit Stainless is to provide our customers with reliable service and high-quality products that support their long-term growth and operational success.
The martensitic stainless steel alloy that makes up Stainless Steel 416 Tubing is mainly made up of 12–14% chromium, 0.15% carbon, and roughly 1% sulfur, which greatly improves its machinability. It has good hardness, high tensile strength (usually between 550 and 700 MPa), and moderate corrosion resistance. In addition to being magnetic, this alloy can be heated to enhance its mechanical qualities, such as strength and resistance to wear. It is ideal for precision-engineered components where both form and function are crucial due to its special combination of machinability and structural performance.
| Grade | UNS | BS | BS | EN | EN | Swedish | Japanese |
| – | No. | EN | Name | SS | JIS | ||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 416 | min.max. | -0.15 | -1.25 | -1.00 | -0.060 | 0.15- | 12.0-14.0 | – | – |
| Tempering Temperature (°C) | Tensile Strength(MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
| Annealed * | 517 | 276 | 30 | 262 | – |
| Condition T ** | 758 | 586 | 18 | 248-302 | – |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 750 | 575 | 20 | 223 | 38 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 416 tubing through stringent testing and certification procedures. Each tube undergoes a thorough inspection, including dimensional testing, mechanical property testing and corrosion resistance evaluation. Certificates of compliance with traceability and quality reports are provided to ensure efficiency and reliability.

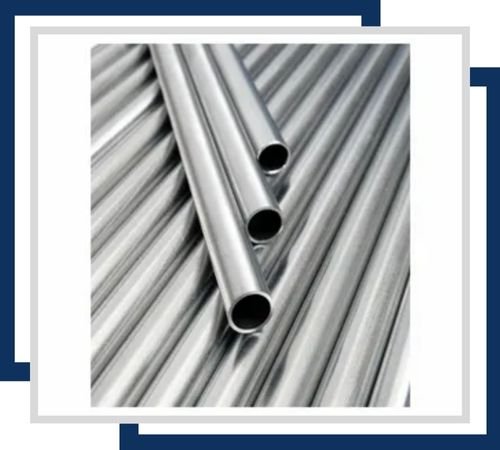

Available in sizes ranging from 0.25″ to 6″ outer diameter, 416 seamless tubing offers excellent corrosion resistance and machinability. Ideal for precision applications where smooth surfaces and dimensional accuracy are critical.

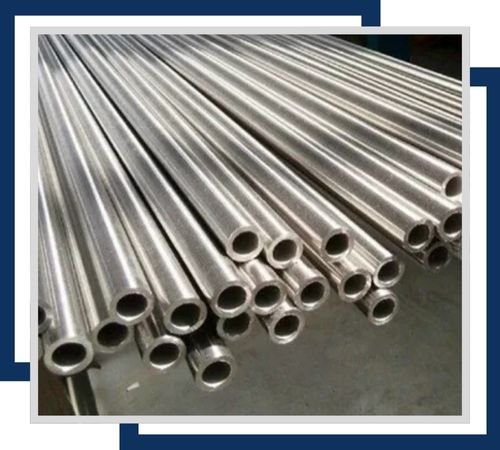

With dimensions typically ranging from 0.5″ to 24″ outer diameter, 416 welded tubing is corrosion-resistant and cost-effective for larger diameter applications. It is suitable for structural and non-critical fluid transfer purposes.
Available in sizes from 0.5″ to 2″ outer diameter, these tubes provide good corrosion resistance and thermal conductivity. They are used in heat exchangers where strength and durability are essential.

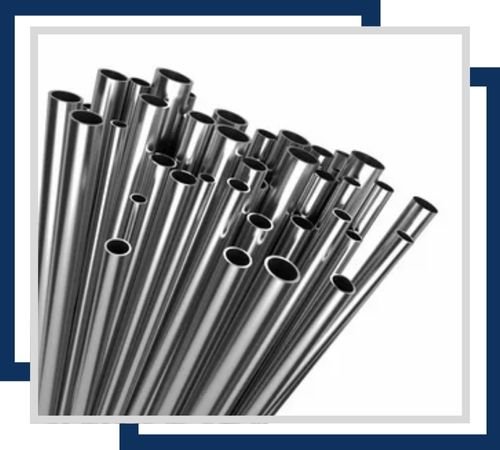

Ranging from 1/8″ to 1″ outer diameter, 416 instrumentation tubing offers excellent corrosion resistance and high strength. It is used in precise control and measurement applications in various industries.

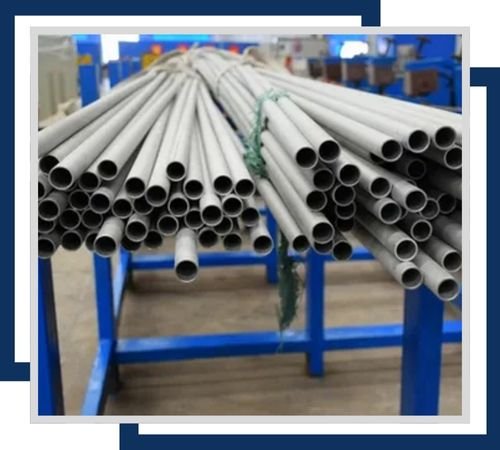

With sizes typically from 0.5″ to 5″ outer diameter, 416 boiler tubes provide excellent corrosion resistance and high-temperature performance. They are designed for use in steam boilers and other high-pressure environments.

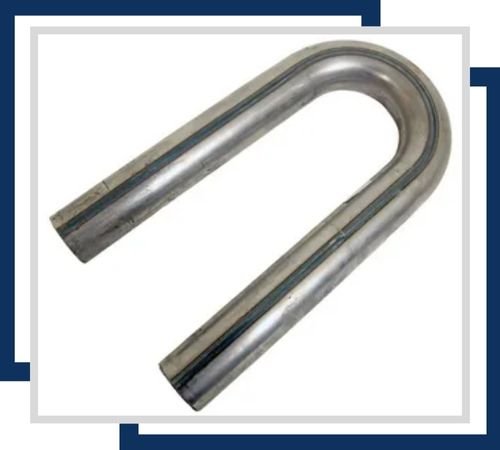

Available in dimensions from 0.5″ to 3″ outer diameter, 416 U-tubes are corrosion-resistant and ideal for heat exchangers where compact design and efficient heat transfer are required. Their U-shape allows for easier installation in tight spaces.

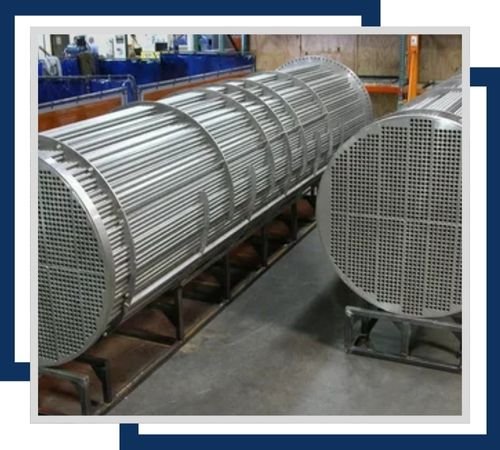

Ranging from 0.5″ to 2″ outer diameter, 416 condenser tubes offer good corrosion resistance and efficient heat transfer. They are used in condensers to cool steam and other fluids in power plants and industrial applications.

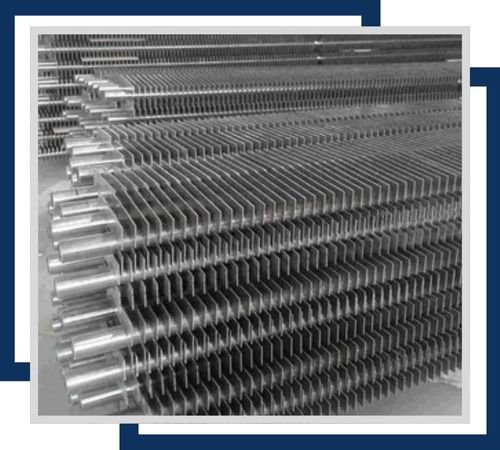

With sizes typically from 0.5″ to 3″ outer diameter, 416 fin tubes provide excellent corrosion resistance and enhanced heat transfer capabilities. They are used in heat exchangers and air coolers where maximizing surface area is critical for efficient operation.
Applications requiring high strength, good machinability, and moderate corrosion resistance frequently use stainless steel 416 tubing. It is used in valves, pump shafts, fittings, and hydraulic systems in common industries such as automotive, aerospace, chemical processing, and food manufacturing. Because of its exceptional machinability, it is perfect for parts like precision tools, marine hardware, and medical equipment that need complex designs or precise tolerances. Furthermore, it can be utilized in marine environments due to its performance under moderate environmental and chemical exposure, guaranteeing reliable operation in a variety of mechanical and structural applications.
