Based in Chennai, India, Vinit Stainless is a reputable producer and supplier of stainless steel 420 fasteners. Our speciality is providing corrosion-resistant, high-strength fastening solutions for demanding industrial applications. To guarantee optimum performance, longevity, and dependability, our SS 420 fasteners are expertly crafted from premium-grade materials and manufactured. These fasteners are well-known for their exceptional machinability and hardness, making them perfect for structural and mechanical applications. Vinit Stainless is dedicated to quality, innovation, and client satisfaction. We provide products that satisfy global standards and serve the tool manufacturing, engineering, construction, and automotive industries.
Stainless Steel 420 Fasteners are made of martensitic stainless steel, which contains trace amounts of silicon and manganese, as well as 12–14% chromium and 0.15–0.40% carbon. They provide good hardness and moderate corrosion resistance following heat treatment. The tensile and yield strengths of SS 420 fasteners are roughly 700–800 MPa and 500 MPa, respectively. Depending on the heat treatment, they can be as hard as 50 HRC. Where mechanical strength and wear resistance are crucial, 420 fasteners are perfect, despite being less corrosion-resistant than austenitic grades.
| Specifications | ASTM A 193 / ASME SA 193 |
| Standard | DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards |
| Size | M3 – M100 | 3/6″ – 4″ | Custom Sizes |
| Fasteners Length | 3 mm – 200 mm | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
| Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
| Grade | C | Mn | Si | P | S | Cr |
| SS 420 | 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | 14.0 – 12.0 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
| 420 | 480 | 275 | 16 | 95 | 201 |
Contact us to get a quick quote for your requirement.

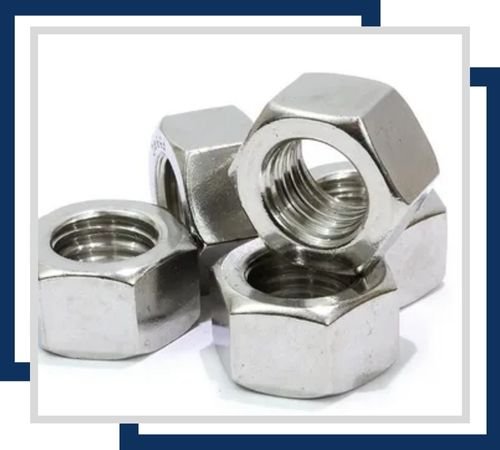

Stainless Steel 420 Nuts offer good corrosion resistance in mild environments, making them suitable for various applications. Typically available in sizes ranging from M3 to M24, these nuts provide robust mechanical properties and are often used in low to moderate-corrosive settings.

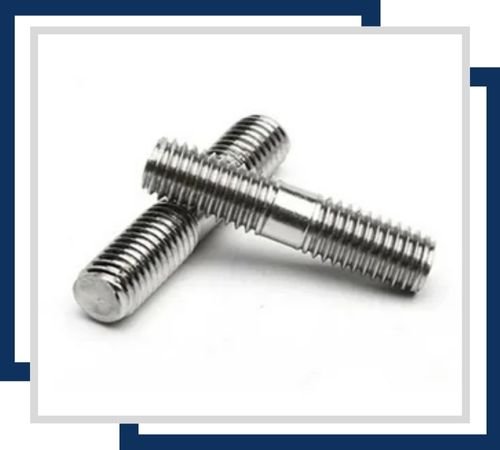

Stainless Steel 420 Stud Bolts exhibit moderate corrosion resistance, which is ideal for applications where exposure to mild corrosive agents is a concern. Common sizes range from M6 to M30, with lengths from 50mm to 300mm, offering strength and durability in fastening applications.

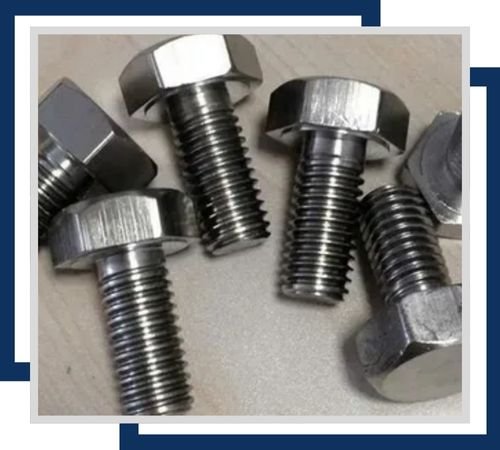

Stainless Steel 420 Bolts are moderately corrosion-resistant, making them suitable for general use in environments with low corrosive potential. They come in various sizes from M6 to M30 and lengths ranging from 20mm to 200mm, providing reliable performance in diverse applications.

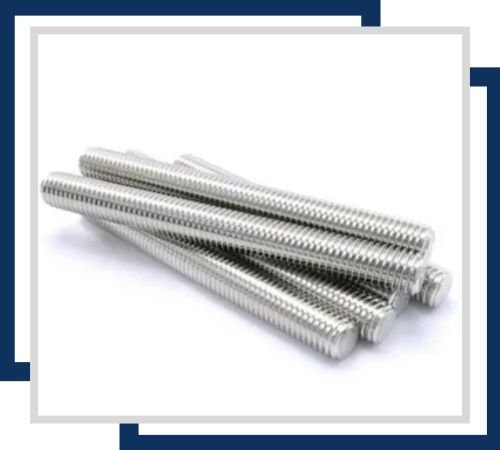

Stainless Steel 420 threaded rods provide moderate corrosion resistance and are suitable for mild corrosive environments. Available in diameters from M6 to M30 and lengths from 100mm to 1000mm, these rods offer flexibility and strength for various industrial and construction applications.

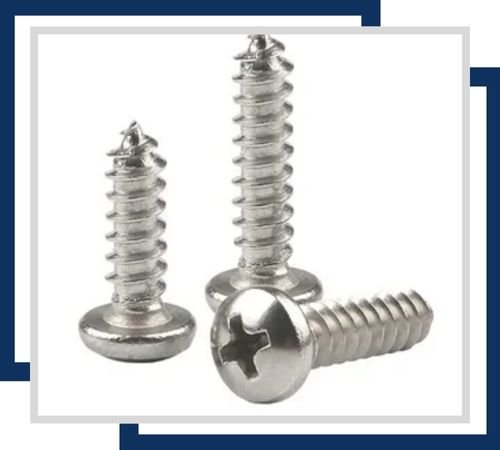

Stainless Steel 420 screws offer good corrosion resistance in less aggressive environments. They are typically available in sizes from M2 to M12 and have lengths ranging from 10mm to 100mm, making them suitable for general-purpose fastening in moderately corrosive conditions.

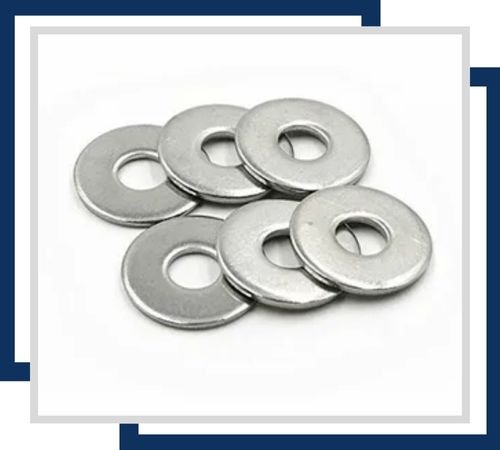

Stainless Steel 420 washers provide moderate corrosion resistance and are suitable for applications with low corrosive exposure. They come in various sizes, typically from M3 to M24, with thicknesses ranging from 1mm to 5mm, ensuring proper load distribution and stability in fastening systems.
Applications needing moderate corrosion protection, high strength, and wear resistance frequently use stainless steel 420 fasteners. Cutting tools, automotive parts, surgical instruments, and industrial machinery are among the common applications. They are employed in the construction industry to secure components that are subjected to mechanical stress. Pump shafts, valves, and hand tools also use SS 420 fasteners, particularly when durability and sharp edges are needed. They are appropriate for both general engineering and specific high-performance settings where strength and surface integrity are crucial because of their exceptional machinability and hardenability.
