Vinit Stainless is a Chennai-based leading manufacturer and supplier that offers good quality Stainless Steel Angles. These L-shaped structural elements are used in numerous construction, fabrication, and support functions with outstanding strength and rigidity. We focus on providing accurately formed angles that provide better corrosion resistance and durability. Our stainless steel angles are suitable for applications requiring rigorous structural frameworks, bracing, and architectural elements where durability, load-carrying strength, and look are of high importance, making them an adaptable option for a wide range of projects.
Stainless Steel Angles are usually produced from grades like 304/304L and 316/316L. Their chemical composition features high chromium (about 18-20%) and nickel (about 8-14%) content, yielding outstanding corrosion resistance. Grade 316/316L also contains molybdenum (2-3%) for added pitting and crevice corrosion resistance. Their mechanical properties feature high tensile strength (e.g., 515-620 MPa) and yield strength (e.g., 205-310 MPa), with firm load-carrying capability, structural stiffness, and good weldability for various fabrication applications.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| Stainless 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Stainless 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| Stainless 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| Stainless 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

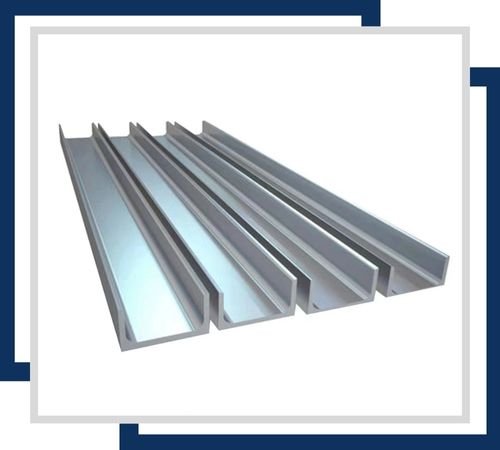

Stainless steel angles are L-shaped structural components made from stainless steel. They provide strength and support for various applications, including construction, manufacturing, and architectural projects, offering durability and corrosion resistance.

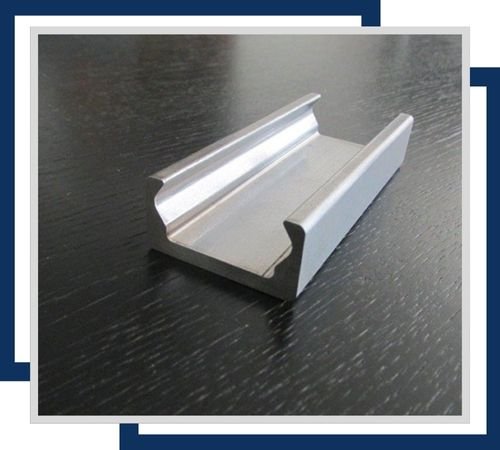

Stainless steel equal angles have two legs of equal length, forming a 90-degree angle. They are used for structural support and reinforcement in construction, offering strength, durability, and corrosion resistance.

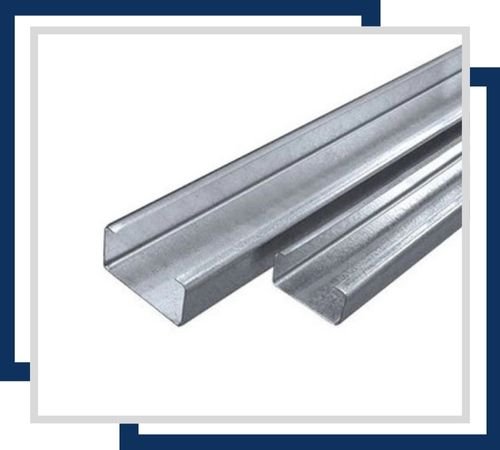

Stainless steel unequal angles have legs of different lengths, forming a 90-degree angle. They provide versatile support and reinforcement in construction and industrial applications, offering strength, durability, and corrosion resistance.

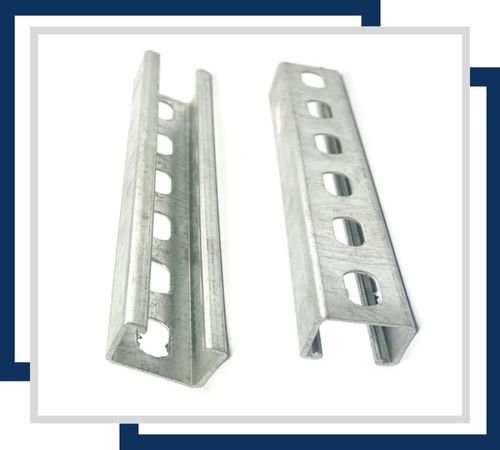

Stainless steel L angles are L-shaped structural components used for framing and support. They offer strength, durability, and corrosion resistance, making them suitable for construction, manufacturing, and architectural applications.

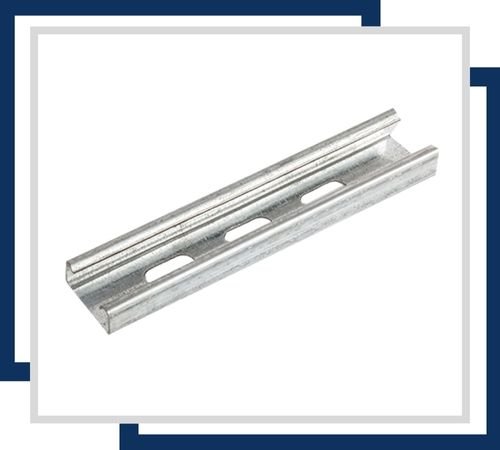

SS T-bar angles are stainless steel sections with a T-shaped profile, providing robust support and stability. They are used in structural applications and frameworks, offering high strength, durability, and corrosion resistance.

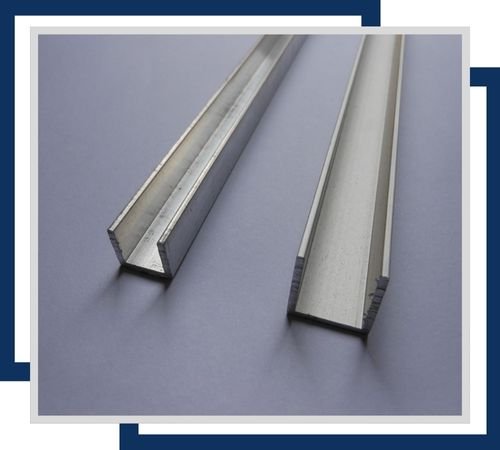

Stainless steel corner angles are L-shaped sections designed for joining or reinforcing corners in construction and fabrication. They provide strong, durable, and corrosion-resistant support for various structural and architectural applications.
Stainless Steel Angles find extensive application as structural elements and supports in numerous industries. They are a critical component in architectural works for window frames, decorative trims, and structural supports. In construction, they are used as bracing, lintels, and edge protection. They are used in manufacturing industries for machine frames, conveyor system parts, and mounting brackets. They are also crucial in chemical processing plants, food and beverage facilities, and marine environments, where their combination of structural integrity and corrosion resistance ensures long-lasting and reliable performance.
