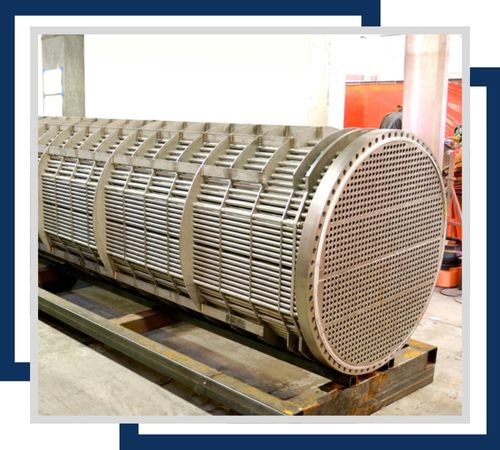

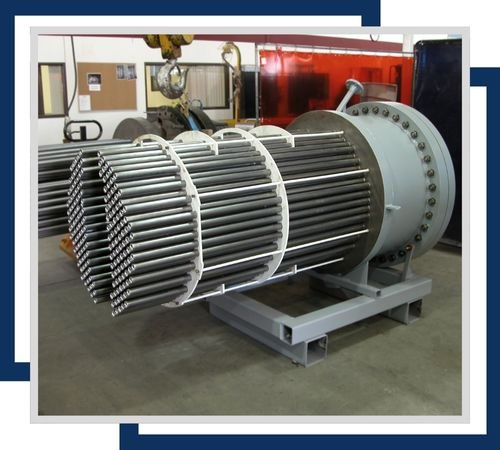

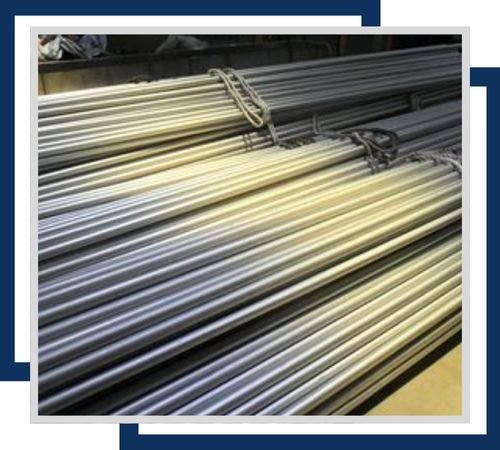

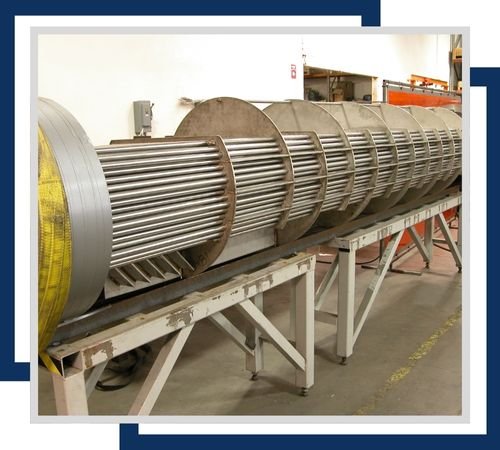

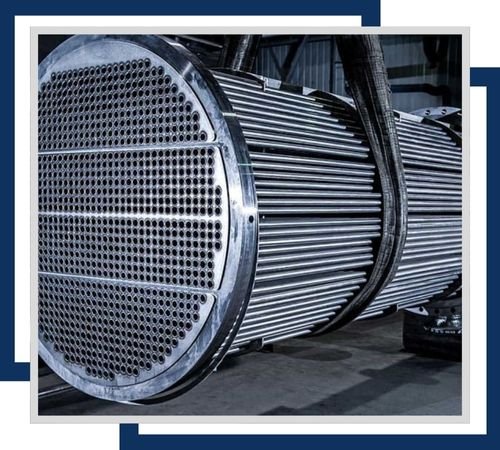

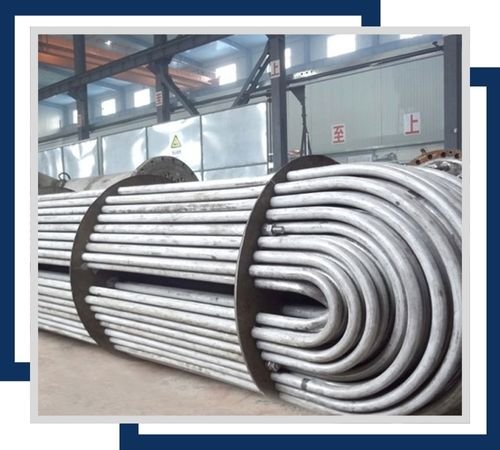

Vinit Stainless, as a top-notch manufacturer and supplier based in Chennai, India, offers high-quality Stainless Steel Heat Exchanger Tubing, a crucial element for effective heat transfer applications. This performance-oriented tubing is engineered to promote maximum thermal transfer under severe operating conditions. Our tubing is produced to rigorous specifications for outstanding performance, low corrosion, and longer life in varied industrial applications. Our mission is to provide dependable and high-performance heat exchanger solutions supporting the efficiency and longevity of your thermal systems.
Stainless Steel Heat Exchanger Tubing is made from materials such as 304/304L, 316/316L, and special alloys like Duplex (e.g., 2205). Nickel and chromium impart basic corrosion resistance, while molybdenum in grades such as 316L offers pitting as well as crevice corrosion resistance, particularly in chloride-containing environments. Mechanically, they possess good thermal conductivity, high tensile strength (515-620 MPa), and satisfactory ductility (40-50% elongation). They also retain integrity at elevated temperature and pressure, withstanding thermal fatigue and stress corrosion cracking for dependable heat transfer.
| Size Range | 10 mm OD to 50.8 mm OD |
| Stainless Steel Heat Exchanger Tube Outside Diameter | 6.00 mm to 101.60 mm |
| Wall Thickness | 0.70 mm to 8.00 mm |
| Length | up to 20 m (65.62 ft) Length & Customed Required Length |
| Stainless Steel Heat Exchanger Tube Dimenisons | ASTM, AISI, ASME/ ANSI, JIS, DIN, EN, GB, BS, SUS |
| Standard | ASTM A 213, A 268, A 269, A 789, Equivalent to ASME, EN, JIS Etc. |
| Stainless Steel Heat Exchanger tube Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
| Stainless Steel Heat Exchanger tube Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel Heat Exchanger Tubing is a critical component in a broad range of heat transfer applications in many industries. In power generation, it is widely used in steam condensers and boilers for effective energy conversion. In chemical processing, it is used to heat, cool, and condense aggressive fluids and gases. Additionally, in HVAC applications, the tubing is essential for effective energy transfer in evaporators, condensers, and chillers. With its high corrosion resistance and thermal characteristics, it is perfect for conditions where high temperatures, corrosive media, and effective heat exchange are critical for successful operation.
