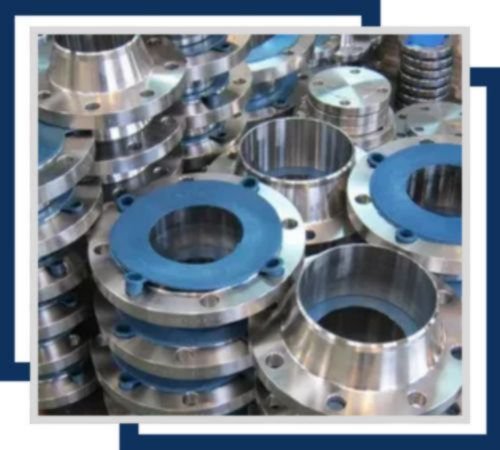

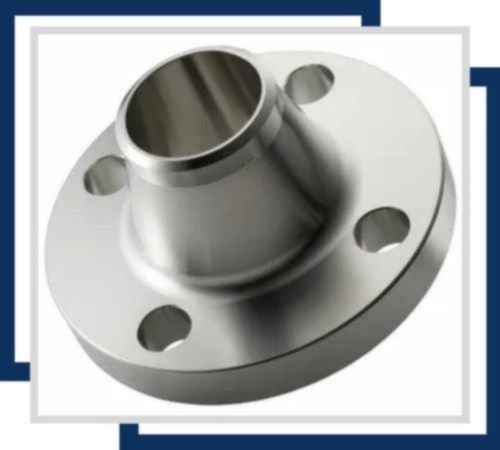

Vinit Stainless, a trustworthy manufacturer and supplier based in Chennai, India, is a specialist in precision-engineered Stainless Steel Orifice Flanges. These are vital components specifically designed to hold orifice plates, and hence are a must for precise flow measurement in any pipeline system. Our flanges are carefully engineered to high standards of precision to deliver both accurate readings and reliable performance in tough industrial applications. We are committed to delivering high-quality solutions that support efficient and accurate fluid control, making us a trusted partner for your flow measurement needs.
Stainless Steel Orifice Flanges are generally produced from robust stainless steel grades like 304/304L and 316/316L. These materials are selected for their excellent resistance to corrosive media, high temperatures, and pressures common in flow measurement applications. Their particular composition provides stability in dimensions and structural integrity essential for accurate operation with orifice plates. Mechanically, they have high tensile strength (485-620 MPa) and yield strength (170-310 MPa), making them capable of withstanding large pressure differentials and providing a tight seal for accurate and reliable flow measurement.
| Size: | 1/2″NB TO 24″NB IN |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Materials: | Stainless Steel : Grade: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Value Added Service: | CNC Machine, Customized Flanges |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Contact us to get a quick quote for your requirement.
Besides the aforementioned high-grade Stainless Steel Orifice Flanges, Vinit Stainless is also known for providing a wide range of test certificates which ensure the authenticity and reliability of our products. These include Material Test Certificates (MTC) according to EN 10204/3.1b, Positive Material Identification (PMI) Test Certificates, 100% Radiography Test Reports and Third Party Inspection Certificates. These documents are proof of our commitment to quality. And provide our clients with complete assurance and peace of mind. With Vinit Stainless, you can be sure that each Stainless Steel Orifice Flange meets up to the highest industry standards as far as performance and safety are concerned.
Stainless Steel Orifice Flanges are used in flow measurement systems to support orifice plates. Made from corrosion-resistant stainless steel, they ensure precise flow control and durability in various industrial applications
Stainless Steel Orifice Flanges are commonly used in industries such as oil and gas, petrochemical, chemical processing, water treatment, power generation, and HVAC systems for accurate flow measurement and control.
Yes, Stainless Steel Orifice Flanges are customizable to meet specific size, pressure rating, and dimensional requirements, ensuring compatibility with various industrial applications and precise flow measurement needs.
Documents provided with Stainless Steel Orifice Flanges include Material Test Certificates (MTC), Positive Material Identification (PMI) certificates, radiography test reports, and third-party inspection certificates, ensuring product quality and authenticity.
Stainless Steel Orifice Flanges are mostly applied in combination with orifice plates for precise flow measurement in pipelines in a range of industries. They are a vital component in the oil and gas industry to measure the flow rates of crude oil, natural gas, and product precisely, important for production and billing. In chemical process plants, these flanges allow for precise control of fluid inlet and outlet, so that optimal reaction conditions are maintained. In addition, in water treatment plants, they play an essential role in controlling and monitoring the flow of water through purification and distribution systems, adding to effective resource utilization.
