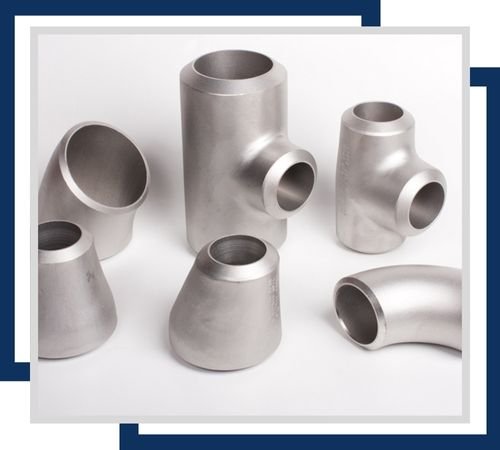

Vinit Stainless is a leading manufacturer and supplier of a wide variety of Stainless Steel Pipe Fittings in Chennai, India. We are engaged in the production of superior quality fittings required for establishing strong, leak-free, and corrosion-resistant connections within different piping systems. Our dedication to precision engineering and rigorous quality control guarantees that every fitting provides outstanding performance and life, addressing the varied requirements of chemical processing, food, and beverage industries and more. Opt for Vinit Stainless for trustworthy pipe fitting solutions with full assurance of optimum system integrity and efficiency in long-term operation.
Our Stainless Steel Pipe Fittings are generally made from high-grade material like 304/304L and 316/316L. These have high chromium and nickel content, ensuring better resistance to corrosion and oxidation. The “L” grades have lower carbon for better weldability and resistance to intergranular corrosion. Mechanically, these fittings have high tensile strength (for example, 515-620 MPa for 304/304L) and good ductility, ensuring they can sustain high pressure and temperature while ensuring dimensional stability and structural integrity.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| SS | 304 | 304N | 304LN |
|---|---|---|---|
| Ni | 8 – 11 | 8 – 11 | 8 – 11 |
| Fe | Balance | ||
| Cr | 18 – 20 | 18 – 20 | 18 – 20 |
| C | 0.08 max | 0.08 max | 0.035 max |
| Si | 0.75 max | 0.75 max | 0.75 max |
| Mn | 2 max | 2 max | 2 max |
| P | 0.040 max | 0.040 max | 0.040 max |
| S | 0.030 max | 0.030 max | 0.030 max |
| N | 0.10 – 0.16 | 0.10 – 0.16 | |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Yes, stainless steel pipe fittings can be used at high temperatures due to their excellent heat resistance and durability. They maintain strength and resist scaling, making them ideal for high-temperature applications.
The pressure rating of stainless steel pipe fittings varies based on type, size, and material grade, typically ranging from 150 psi to 6,000 psi or higher. It is crucial to consult the manufacturer’s specifications for precise ratings.
Yes, we provide ss pipe fittings standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@vinitstainless.co.in
Stainless Steel Pipe Fittings are non-negotiable in a wide range of industries to connect pipe segments, transition to varying sizes or shapes, and manage the flow of fluids. They are extensively used in chemical and petrochemical facilities to process corrosive mediums, in oil and gas for pipeline facilities, and in pharmaceutical and food & beverage sectors for sanitary processing lines. Moreover, they are essential in water treatment plants, electricity generation, and sea usage, where their corrosion resistance, strength, and capacity to provide safe connections are greatly appreciated.
