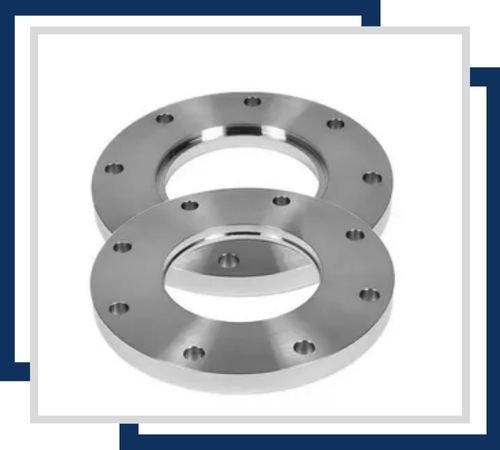

Vinit Stainless is one of the leading manufacturers and suppliers of trustworthy Stainless Steel Plate Flanges in Chennai, India. We provide efficient and cost-effective solutions for piping system connections in several industrial processes. Our Stainless Steel Plate Flanges are kept simple and efficient, offering an easy way to secure pipe connections. Dedicated to providing quality and value, Vinit Stainless guarantees that our plate flanges are of industry standards, providing a reliable piece for your general–purpose piping requirements.

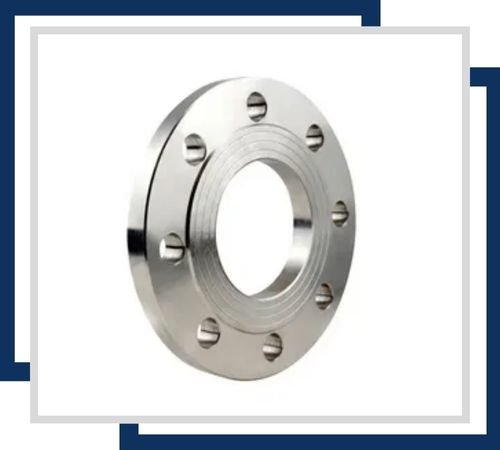

Stainless Steel Plate Flanges are generally made of stainless steel grades flat plates like SS 304, 304L, 316, or 316L. Their make-up, with a high concentration of chromium and sometimes nickel, is sufficiently corrosion-resistant in a wide range of environments. Mechanically, they have adequate tensile strength (e.g., 515-620 MPa in 304/304L) and yield strength (205-220 MPa). Although less complex in design than most other flange types, their solid plate make-up has adequate strength for low-pressure and not-critical service.

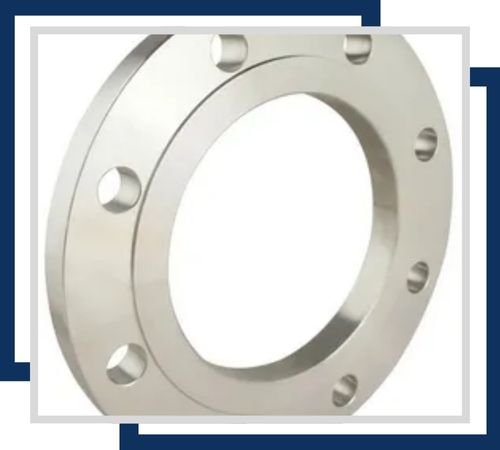

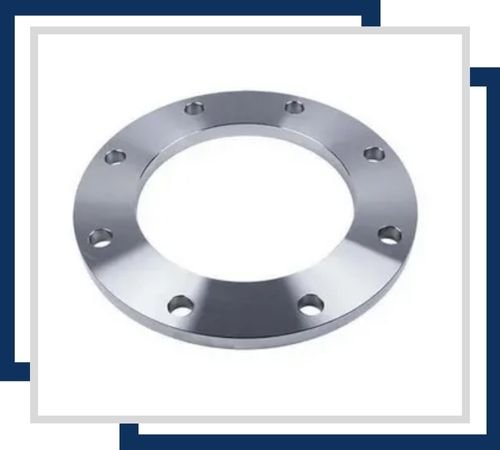

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Contact us to get a quick quote for your requirement.
Vinit Stainless provides quality materials with a focus on strict testing procedures. Every product is inspected thoroughly, including hardness testing, chemical analysis through spectro analysis, PMI testing, tensile testing, micro and macro structural tests, pitting resistance, and IGC testing. We ensure that our materials perform better through these comprehensive checks. In addition to quality, we supply all relevant documentation, including commercial invoices, packing lists showing net and gross weights, box numbers, labels, and a Certificate of Origin legalized or attested by the Chamber of Commerce or Embassy. We have our Third-Party Inspection Certificate that will assure our customers are satisfied with our price for delivery of our Stainless Steel Plate Flanges.
The pressure rating of a stainless steel plate flange typically depends on its material grade, size, and the pressure-temperature rating of the system. For example, a 150 lb stainless steel flange generally has a pressure rating up to 285 psi at 100°F.
Yes, you can order Stainless Steel Plate Flanges in custom sizes and polishes. For more details, mail us at sales@vinitstainless.co.in
Yes, Stainless Steel Plate Flanges can be welded. They are designed for welding applications, providing a strong, leak-proof connection in various industries.
Choose a stainless steel plate flange based on the required pressure rating, corrosion resistance, and compatibility with the intended application environment. Ensure proper sizing, material grade, and welding requirements for optimal performance.
Stainless Steel Plate Flanges are widely employed in low-temperature and low-pressure applications where cost-effectiveness and simplicity are paramount. They are often encountered in utility lines, non-critical systems, and services that are not subjected to high stress or vibrations. Such applications include water pipelines, drainage systems, and some ventilation systems. Because of their simple design and ease of production, they are a popular option for general industrial piping where the sealing pressure does not have to be as high as for high-pressure or hazardous material applications.
